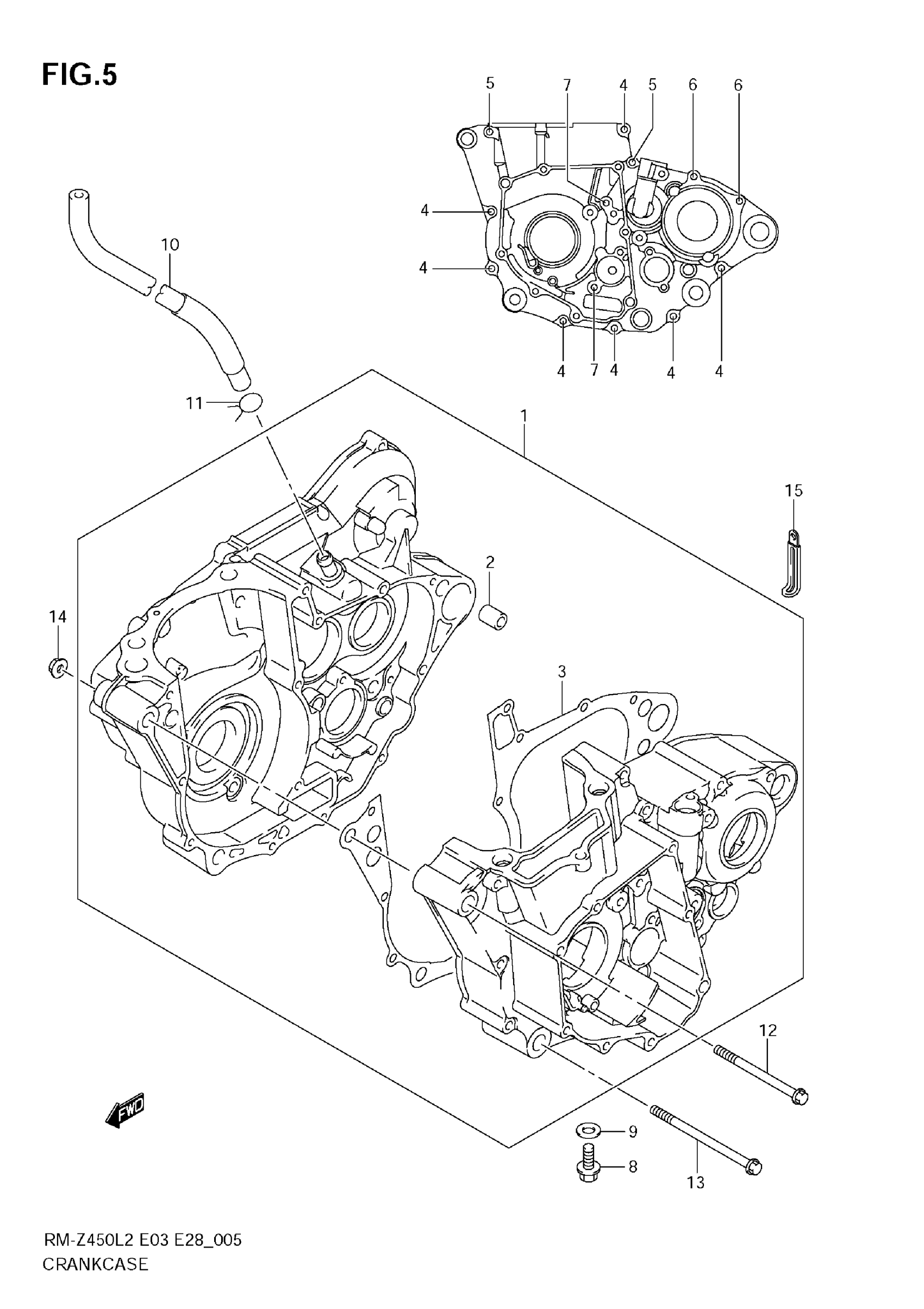

Suzuki RM-Z450L2 (2012) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11301-28862.

11301-28863

$1,098.32

2

PIN

09206-13020

$2.34

3

.GASKET,CRANKCASE

11481-28H00

$21.60

4

BOLT

01547-0655A

$2.42

5

BOLT

01547-0665A

$2.32

6

BOLT

01547-0675A

$3.28

7

BOLT

01547-0680A

$3.30

8

BOLT (8X20) | OIL DRAIN

09103-08393

$2.50

9

GASKET (8.2X14X1)

09168-08016

$1.65

10

HOSE,BREATHER This part replaces 11332-28H00.

11332-49H11

$22.38

11

CLAMP

09401-13301

$2.70

12

BOLT (10X135)

09103-10403

$15.83

13

BOLT (10X125)

09103-10399

$7.05

14

NUT

09159-10122

$7.63

15

CLAMP (L:45)

09404-06429

$1.83
