Description

Price

1

CLEANER ASSY, AIR

13700-28H10

Unavailable

2

FILTER ASSY

13780-10H00

$95.28

3

BASE, FILTER

13790-37F20

$22.22

4

HOLDER, FILTER

13791-35G00

$15.16

5

.BOLT,WING

13831-37F20

$8.07

6

WASHER

13792-13A01

$4.34

7

TUBE, OUTLET

13881-28H00

Unavailable

8

CLAMP

13826-28H00

$7.73

9

NUT

08319-2105B

$3.08

10

MUD GUARD

13738-36E01

$21.90

11

COLLAR, MUD GUARD

13838-02B00

$3.56

12

.SCREW

13831-35F00

$2.38

13

PLATE

13795-37F20

$17.70

14

GASKET

13796-37F20

$13.73

15

.NUT

09148-06017

$3.20

16

BOLT

01547-0612A

$2.03

17

.SPACER (6.2X10X2.2)

09180-06129

$2.12

18

SENSOR, AIR TEMP This part replaces 13650-14G11.

13650-14G10

$52.06

19

O RING

13655-14G10

$9.90

20

BRACKET

13652-28H00

$12.40

21

SCREW

02112-0516B

$1.93

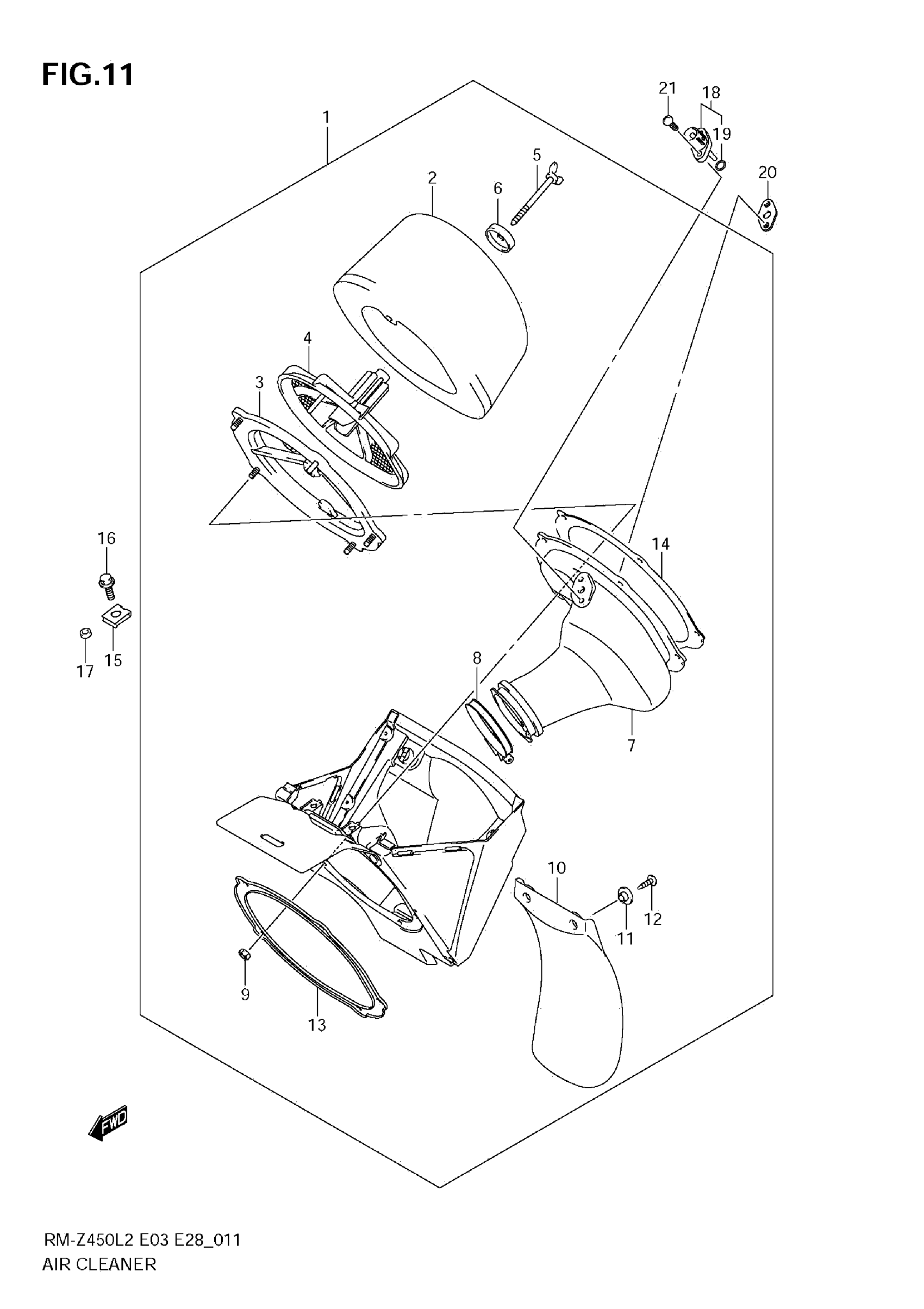

Suzuki RM-Z450L2 (2012) AIR CLEANER Diagram
