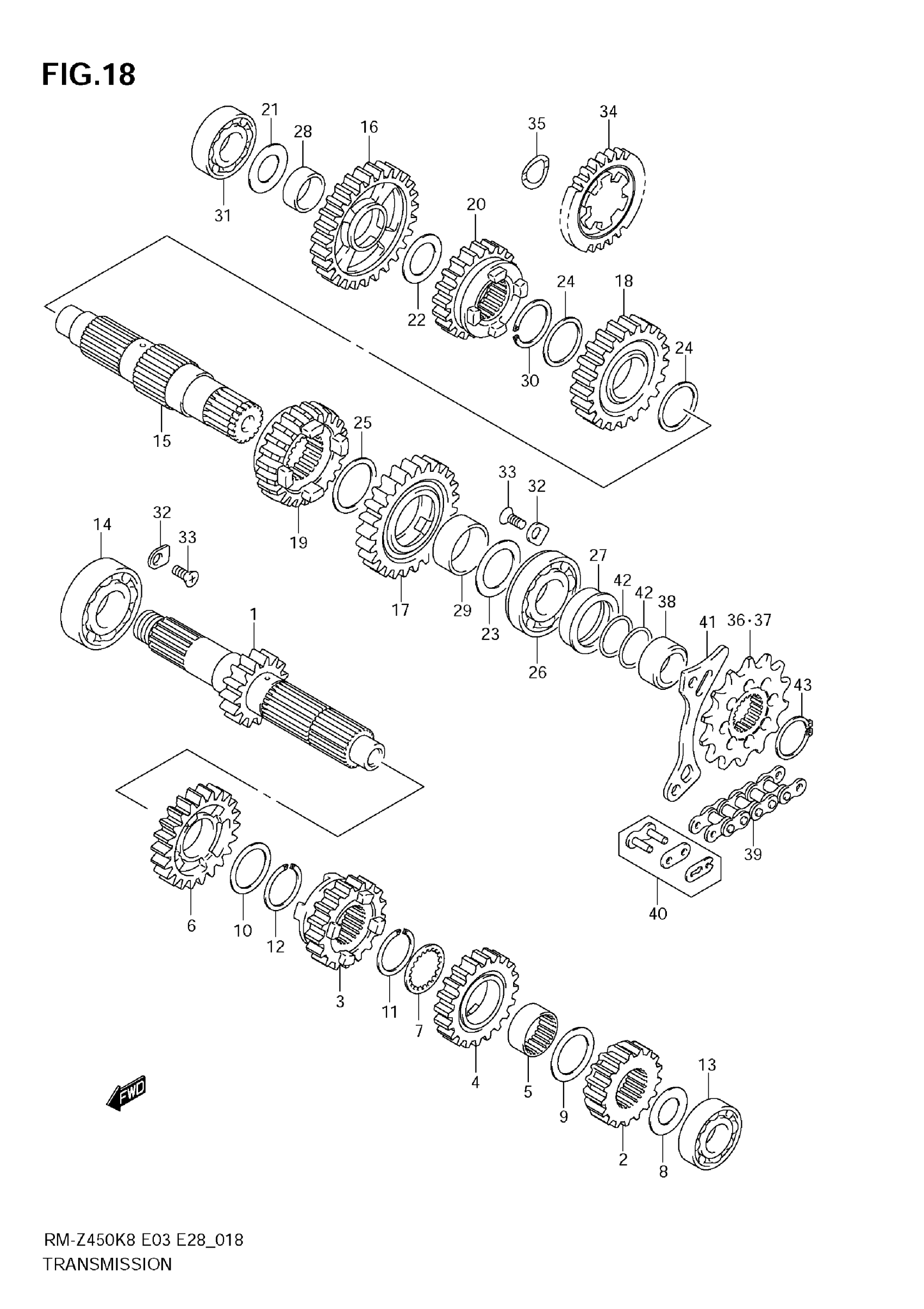

Suzuki RM-Z450K8 (2011) TRANSMISSION (RM-Z450 K8/K9/L0) Diagram

#

Description
Price

1

SHAFT,COUNTER This part replaces 24120-28H00.

24120-28H01

$234.20

2

GEAR, 2ND DRIVE (NT:17)

24221-28H00

$123.45

3

GEAR, 3RD DRIVE (NT:17) This part replaces 24231-28H00.

24231-28H20

$121.63

4

GEAR, 4TH DRIVE (NT:20)

24241-28H01

$126.18

5

BUSH, 4TH DRIVE GEAR

24242-37F00

$31.23

6

GEAR, 5TH DRIVE (NT:22)

24251-28H00

$113.18

7

WASHER, 4TH DRIVE GEAR, R

09167-25026

$3.72

8

WASHER (17X30X1.0)

09181-17223

$2.96

9

WASHER, 5TH DRIVE | K8/K9 This part replaces 09181-25059.

09181-25167

$3.12

9

WASHER (25X34X1) | L0

09181-25167

$3.12

10

WASHER (25X32X1.0)

09181-25139

$3.32

11

CIRCLIP

09380-25010

$2.91

12

CIRCLIP

09380-25010

$2.91

13

BEARING | LH This part replaces 08123-62030.

08123-6203A

$25.45

14

BEARING (25X52X15) | RH

08143-62057

$24.40

15

SHAFT, DRIVE

24131-28H00

$233.32

16

GEAR, 1ST DRIVEN (NT:27)

24311-28H00

$121.98

17

GEAR, 2ND DRIVEN (NT:25)

24321-28H00

$121.98

18

GEAR, 3RD DRIVEN (NT:21)

24331-28H00

$126.18

19

GEAR, 4TH DRIVEN (NT:21)

24341-28H00

$149.15

20

GEAR, 5TH DRIVEN (NT:20)

24351-28H01

$134.48

21

WASHER (17X30X1.0) | RH

09181-17223

$2.96

22

WASHER (20X30X1.0) | LH

09181-20195

$2.60

23

WASHER (24X34X1.0) | LH

09181-24005

$3.55

24

WASHER (25X30X1.0)

09181-25111

$4.10

25

WASHER (27X33X1.0) | RH

09181-27015

$4.60

26

BEARING (24X56X14) | LH

09262-24001

$90.20

27

SEAL,OIL (31X40X8.5)

09289-31003

$13.73

28

BUSH

09300-20037

$17.90

29

BUSH

09300-27005

Unavailable

30

CIRCLIP

09380-25010

$2.91

31

BEARING This part replaces 08123-62030.

08123-6203A

$25.45

32

RETAINER

24741-20A00

$2.81

33

SCREW (6X12)

09126-06011

$2.03

34

GEAR, KICK STARTER IDLE | NT:23

26260-35G00

$162.04

35

WASHER, KICK IDLE

26264-28H00

$7.08

36

SPROCKET, ENGINE (NT:13)

27511-35G30

$58.13

37

SPROCKET, ENGINE (NT:14) | OPT

27511-35G20

$58.13

38

SPACER,ENGINE SPROCKET

27531-35G01

$28.58

39

CHAIN ASSY, DRIVE | DID520MXV,114L K8/K9

27600-35G10-114

Unavailable

39

CHAIN ASSY, DRIVE | DID520WXV,114LE L0

27600-35G01-114

$351.70

40

JOINT SET, CHAIN | OPT K8/K9

27620-35G10

Unavailable

40

JOINT SET, CHAIN | OPT L0

27620-35G01

$21.37

41

PLATE, FRONT CHAIN GUIDE

27641-35G01

$10.55

42

O RING, SPROCKET SPACER | D:1.9,ID:21.8

09280-21010

$2.27

43

CIRCLIP, ENGINE SPROCKET

08331-3124A

$2.03
