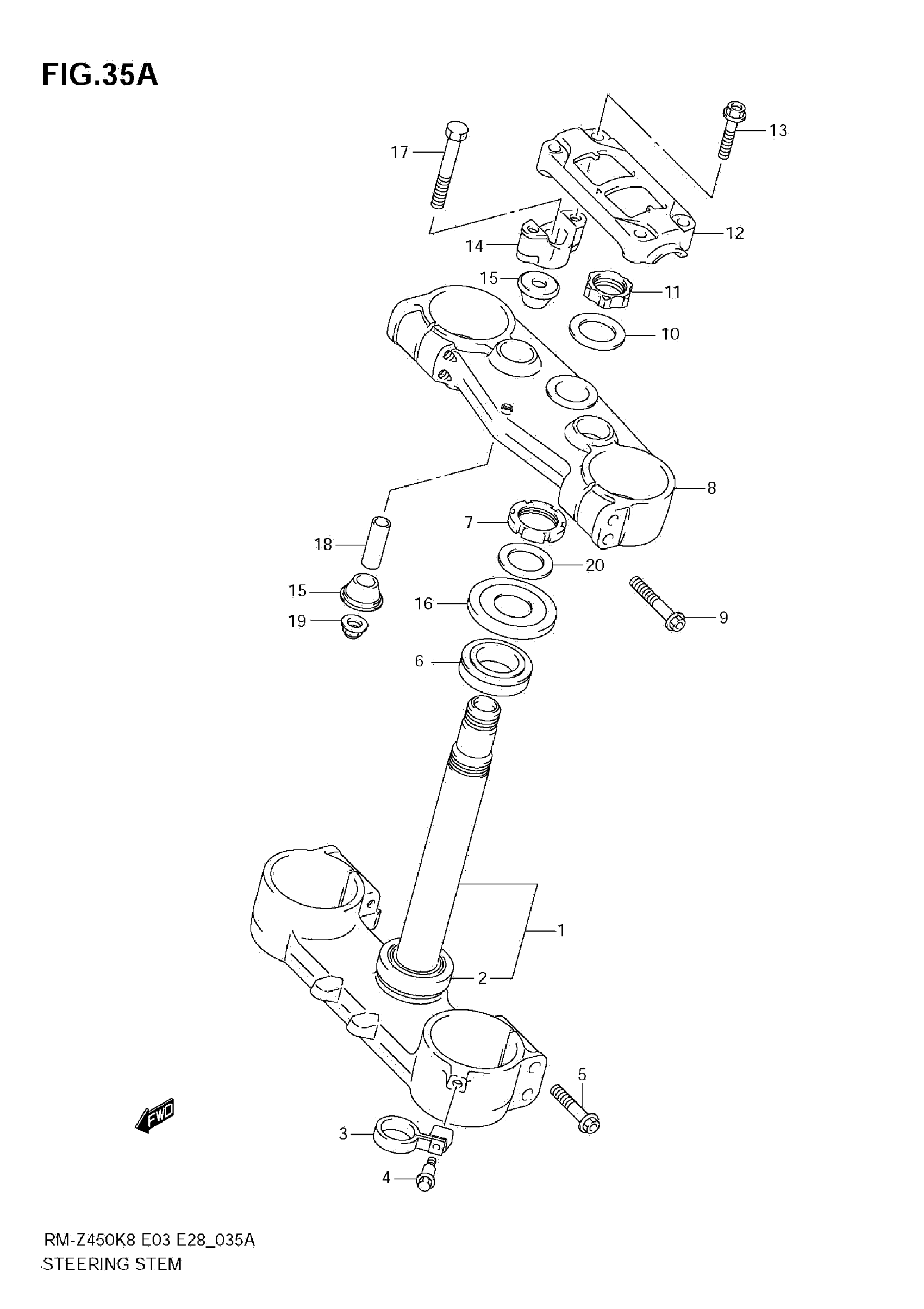

Suzuki RM-Z450K8 (2011) STEERING STEM (RM-Z450 L1) Diagram

#

Description
Price

1

STEM, BEARING

51410-28H11

Unavailable

2

BEARING

09265-30022

$78.03

3

GUIDE, FRONT BRAKE HOSE

58621-37F80

$12.16

4

BOLT

09111-06087

$2.71

5

BOLT

51328-37F80

$7.25

6

BEARING

09265-30022

$78.03

7

NUT STEERING

51631-28E00

$28.88

8

HEAD, STEERING STEM

51311-28H11

Unavailable

9

BOLT

51328-37F80

$7.25

10

WASHER,STEM HEAD

51356-29E00

$15.29

11

NUT,STEM HEAD

51353-37F70

$40.35

12

HOLDER,HANDLE

56211-10H10

$85.28

13

BOLT

51321-37F90

$6.19

14

HOLDER,HANDLE,LOWER

56221-28H01

$115.65

15

CUSHION,RUBBER

56241-10H11

$43.88

16

SEAL,STEERING U This part replaces 51643-28H00.

51643-28H01

$23.63

17

BOLT,HANDLE HOLDER

56321-28H00

$13.07

18

SPACER

56243-10H11

$11.85

19

NUT This part replaces 08319-31108.

08319-31107

$2.73

20

WASHER, STEERING NUT

51632-49H00

Unavailable
