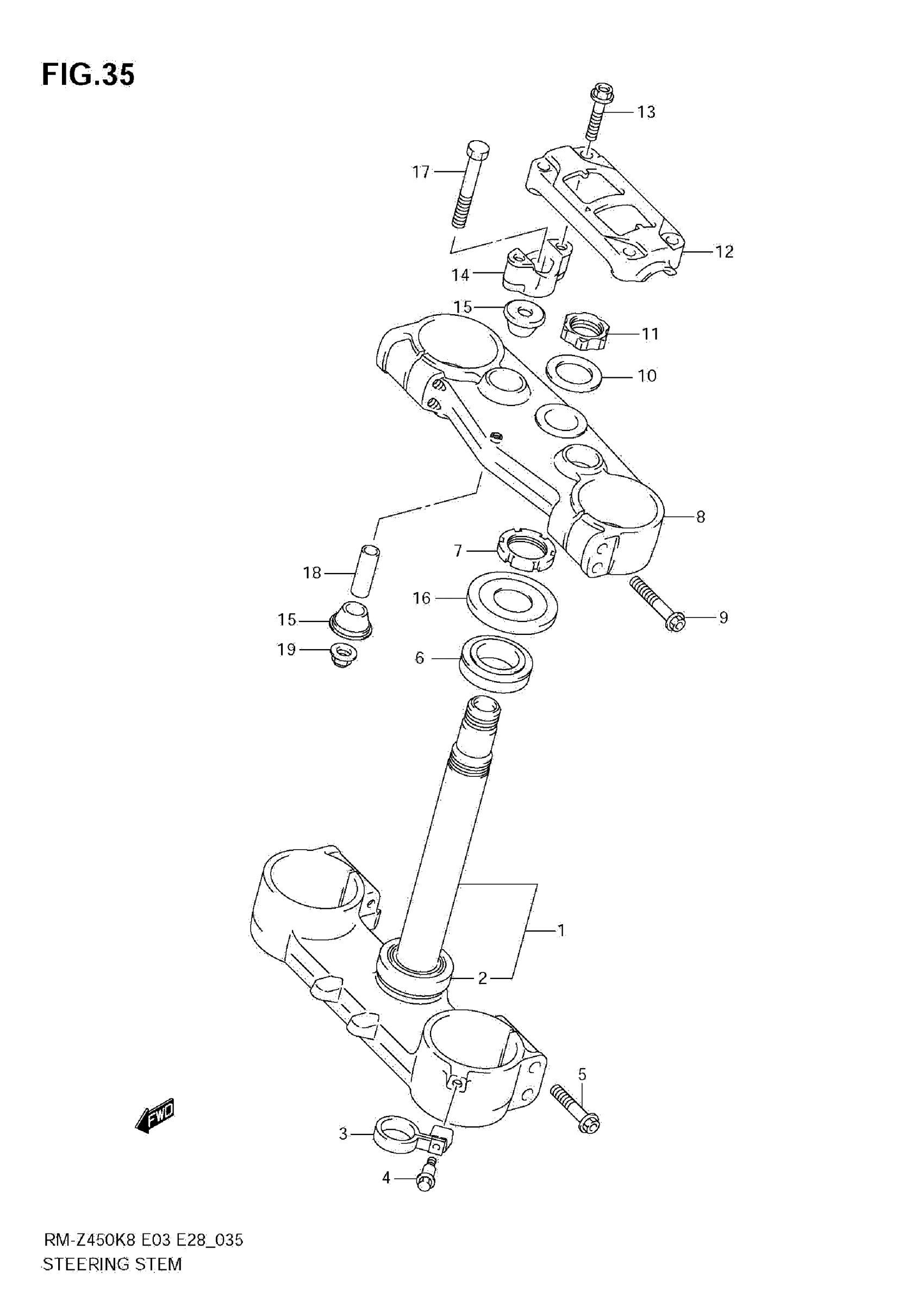

Suzuki RM-Z450K8 (2011) STEERING STEM (RM-Z450 K8/K9/L0) Diagram

STEM, STEERING

51410-28H00

Unavailable

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$42.15

GUIDE, BRAKE HOSE

58621-37F80

$11.13

BOLT, GUIDE (6X20.5)

09111-06087

$3.30

BOLT

51328-37F80

$6.64

BEARING (30X52X16)

09265-30022

$84.82

NUT, STEERING

51631-37F00

$38.53

HEAD, STEERING STEM | K8/K9

51310-10H10

Unavailable

HEAD, STEERING STEM | L0

51311-28H10

$514.77

BOLT

51328-37F80

$6.64

WASHER,STEM HEAD

51356-29E00

$20.30

NUT,STEM HEAD

51353-37F70

$45.53

HOLDER,HANDLE

56211-10H10

$96.27

BOLT, HANDLE HOLDER

51321-37F90

$8.21

HOLDER,HANDLE,LOWER This part replaces 56221-28H00.

56221-28H01

$130.52

CUSHION,RUBBER This part replaces 56241-10H10.

56241-10H11

$49.52

SEAL,STEERING U This part replaces 51643-28H00.

51643-28H01

$26.67

BOLT

56321-49G00

$15.83

SPACER This part replaces 56243-10H10.

56243-10H11

$13.37

NUT

08319-31107

$2.73
