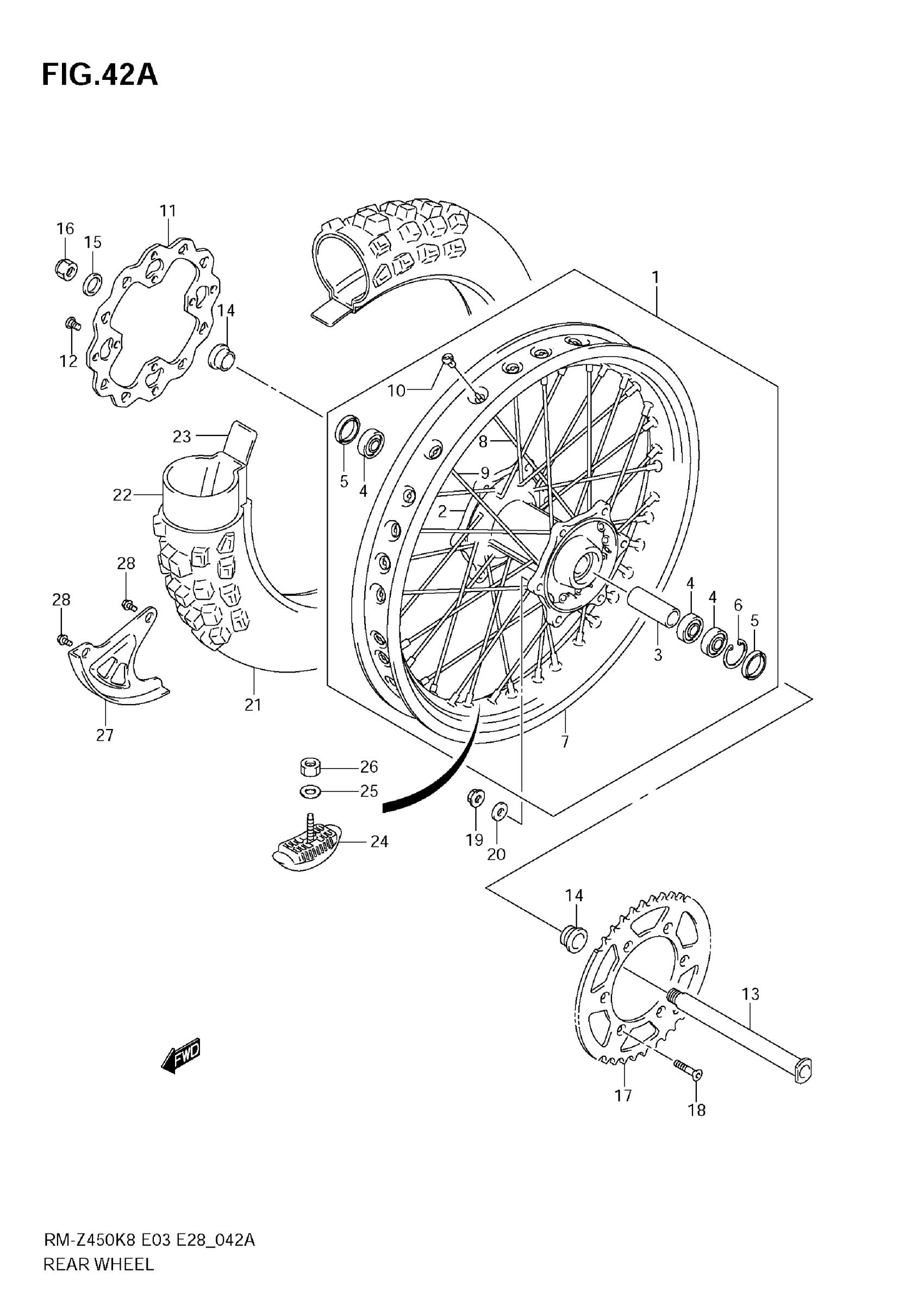

Suzuki RM-Z450K8 (2011) REAR WHEEL (RM-Z450 L1) Diagram

WHEEL ASSY,REAR This part replaces 64100-28H00.

64100-28H01

$977.87

.HUB,REAR This part replaces 64111-35G20.

64111-35G30

$304.90

.SPACER,RR HUB BEARING

64731-35G01

$31.65

.BEARING (25X42X9) This part replaces 09262-25139.

09262-25192

$50.30

.SEAL,OIL (32X43X7) This part replaces 09283-32045.

09283-32049

$11.29

CIRCLIP This part replaces 08331-4142A.

08331-41429

$2.51

RIM, REAR WHEEL (1.85X19)

65311-35G00

Unavailable

.SPOKE,RR WHEEL INNER

65321-35G10

$4.51

.SPOKE,RR WHEEL OUTER

65322-35G10

$4.68

.NIPPLE,RR WHEEL

65325-35G10

$4.51

DISC,RR BRAKE

69211-28H10

$234.97

SCREW (8X12)

09139-08022

$4.83

AXLE,RR

64711-35G10

$131.97

SPACER

64751-35G01

$40.32

WASHER (22X35X2)

09160-22081

$2.80

NUT

09159-22007

$17.33

SPROCKET,RR (NT:50)

64511-36E00

$140.88

SPROCKET,RR (NT:48) | OPT

64511-37E00

$194.80

SPROCKET, REAR (NT:51) | OPT

64511-40261

$172.72

SPROCKET,RR (NT:49) | OPT

64511-28E00

$134.48

SCREW (8X30.5)

09120-08017

$2.80

NUT

09159-08133

$5.00

WASHER (8.5X16X1.2)

09160-08082

$1.64

TIRE, REAR (110/90-19 62M) (BRIDGESTONE) | MOTOCROSS-M404

65110-28H00

Unavailable

TUBE ASSY,WHEEL INNER

65200-35G01

$85.10

PROTECTOR,WHL INR TUBE

65261-35G01

$8.52

STOPPER, BEAD

65270-28E00

$66.32

WASHER

08322-0108A

$2.18

NUT

08310-0008A

$1.86

COVER, REAR DISC

69231-37F12

$18.90

BOLT (6X12)

09116-06197

$2.80
