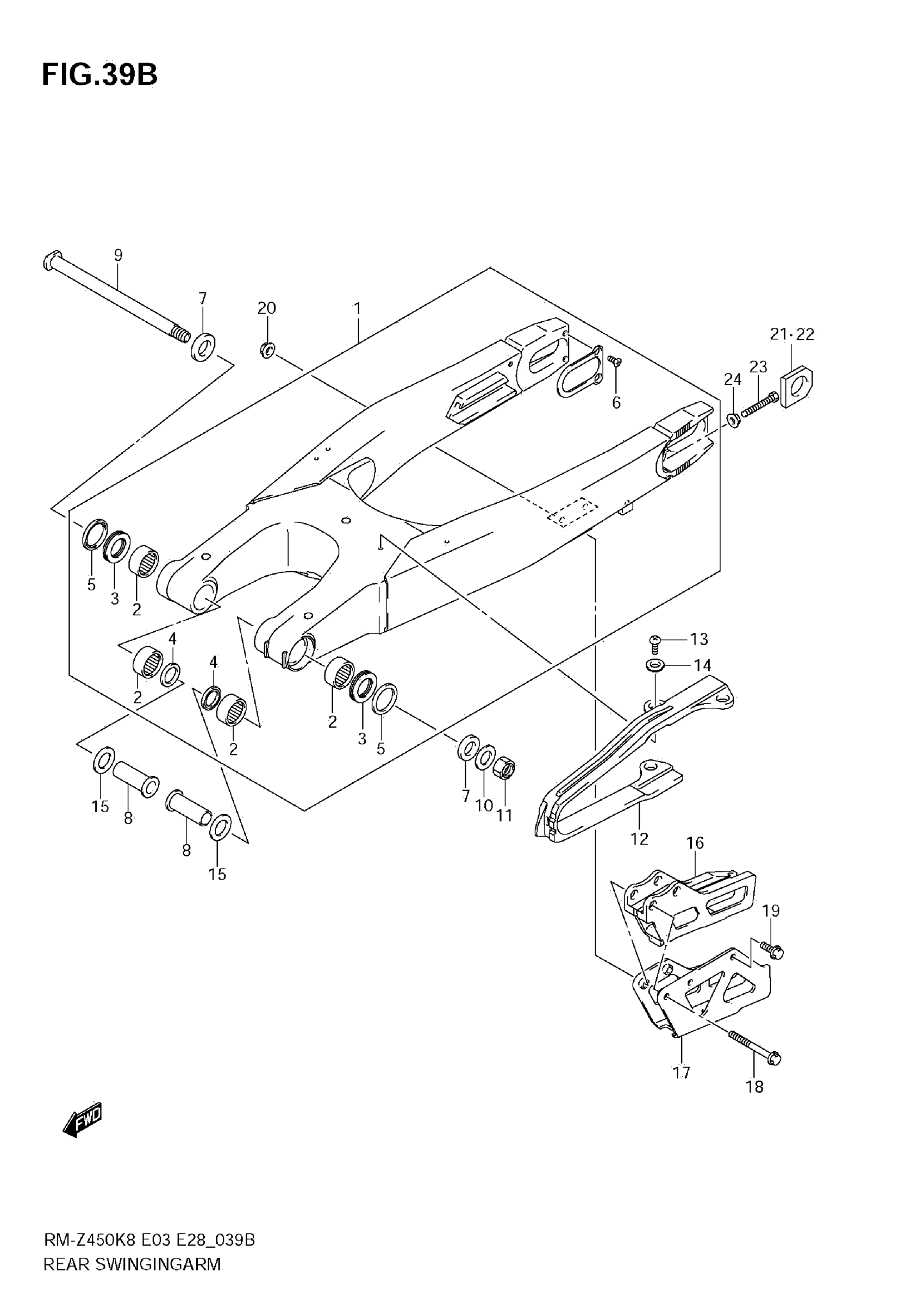

Suzuki RM-Z450K8 (2011) REAR SWINGING ARM (RM-Z450 L1) Diagram

#

Description
Price

1

SWINGINGARM ASSY, REAR This part replaces 61000-28H10.

61000-28H20

$1,380.10

2

BEARING (22X29X30)

09263-22070

$37.28

3

BEARING (22X35X2)

09263-22064

$30.12

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

5

SEAL, OUTER (29.2X37X4)

61262-36E00

$6.52

6

SCREW

02122-0410B

$1.70

7

SPACER, PIVOT OUTER

61251-36E01

$12.39

8

SPACER, PIVOT INNER

61252-37F01

$49.82

9

SHAFT, PIVOT

61211-35G00

$95.37

10

WASHER

08322-0116B

$2.95

11

NUT

09159-16007

$11.37

12

BUFFER, CHAIN TOUCH DEFENSE

61273-35G10

$60.35

13

SCREW

02112-0508B

$1.85

14

WASHER

09169-05022

$3.21

15

WASHER

08211-22365

$6.48

16

GUIDE, CHAIN

61341-35G10

$64.70

17

PLATE, GUIDE OUTER

61342-37F00

$72.75

18

BOLT (6X45)

09103-06242

$2.80

19

BOLT (6X12)

09103-06233

$2.18

20

NUT

08316-1006B

$2.50

21

WASHER,CHAIN ADJUSTER RH

61445-28H11

$54.93

22

WASHER,CHAIN ADJUSTER LH

61446-35G01

$41.32

23

BOLT (8X50)

09100-08287

$2.80

24

NUT

09159-08034

$1.62
