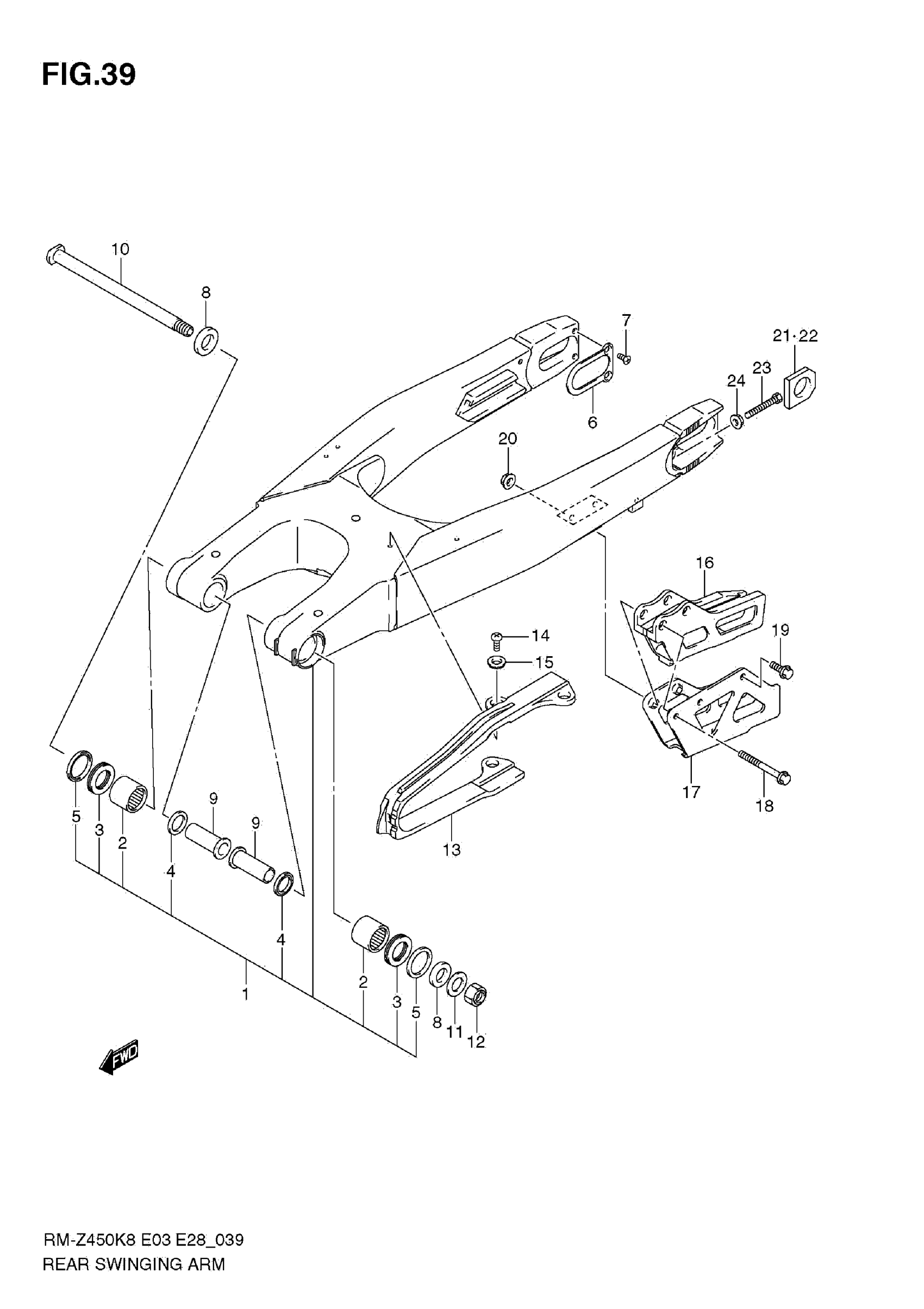

Suzuki RM-Z450K8 (2011) REAR SWINGING ARM (RM-Z450 K8/K9) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR

61000-28H00

Unavailable

2

BEARING (22X29X30)

09263-22017

$20.38

3

BEARING (22X35X2)

09263-22064

$30.12

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

5

SEAL (29.2X37X4)

61262-36E00

$6.52

6

PLATE, SWINGINGARM, REAR

61128-35G00

Unavailable

7

SCREW

02122-0410B

$1.70

8

SPACER, PIVOT OUTER

61251-36E01

$12.39

9

SPACER, PIVOT INNER

61252-37F01

$49.82

10

SHAFT, PIVOT

61211-28H00

$98.98

11

WASHER

08322-0116B

$2.95

12

NUT

09159-16007

$11.37

13

BUFFER, CHAIN TOUCH DEFENSE

61273-37F10

$81.08

14

SCREW

02112-0508B

$1.85

15

WASHER

09169-05022

$3.21

16

GUIDE, CHAIN

61341-35G10

$64.70

17

PLATE, GUIDE OUTER

61342-37F00

$72.75

18

BOLT (6X45)

09103-06242

$2.80

19

BOLT (6X12)

09103-06233

$2.18

20

NUT

08316-1006B

$2.50

21

WASHER, CHAIN ADJUSTER RH

61445-28H00

Unavailable

22

WASHER, CHAIN ADJUSTER LH

61446-28H00

Unavailable

23

BOLT (8X50)

09100-08287

$2.80

24

NUT

09159-08034

$1.62
