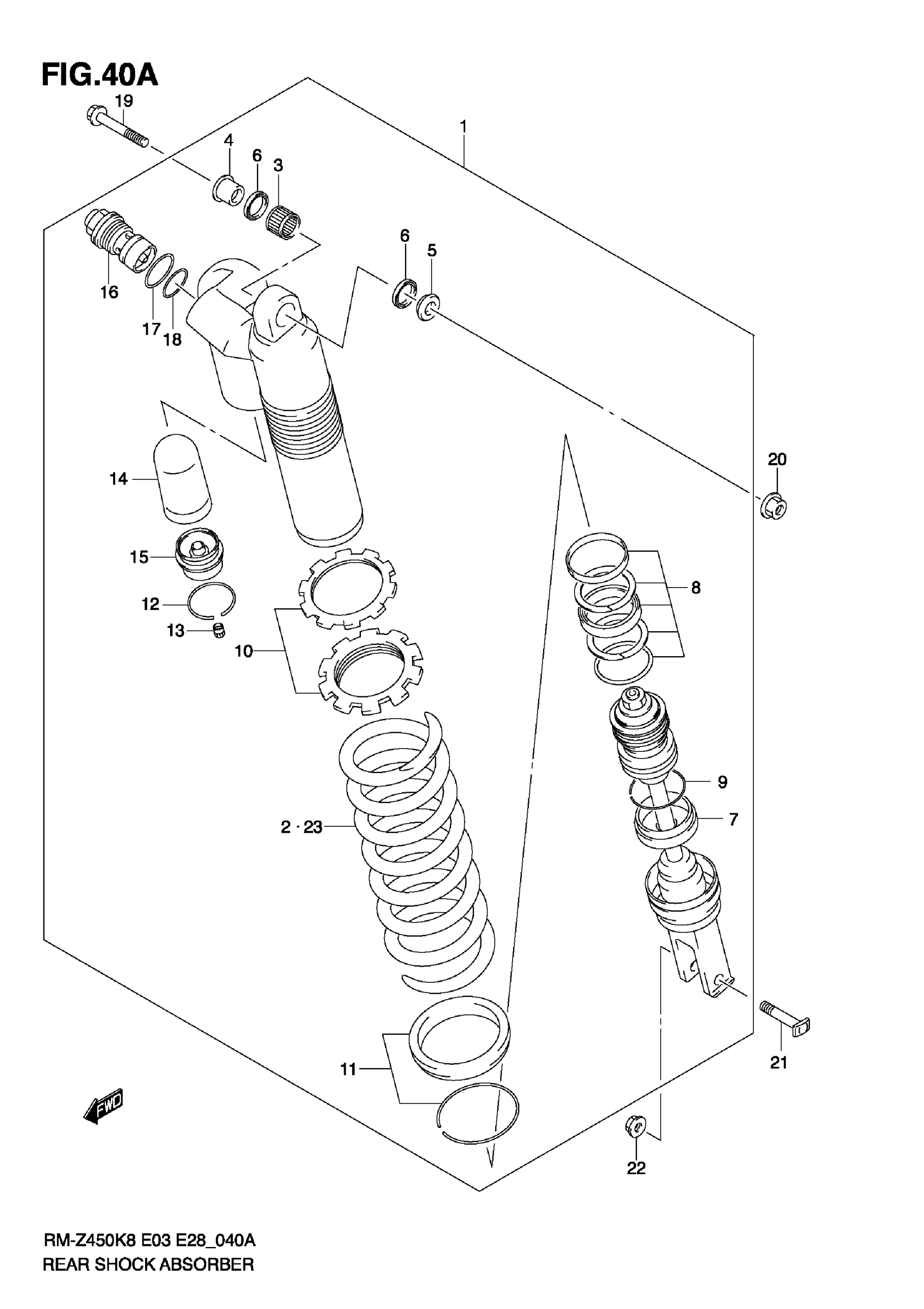

Suzuki RM-Z450K8 (2011) REAR SHOCK ABSORBER (RM-Z450 L0/L1) Diagram

#

Description
Price

1

ABSORBER ASSY, RR SHOCK (RED) | E3

62100-28H50-YKS

Unavailable

1

ABSORBER ASSY, RR SHOCK (RED) | E28

62100-28H40-YKS

Unavailable

2

SPRING (K=5.6)

62211-37FM0

Unavailable

3

BEARING (16X22X12)

09263-16033

$18.28

4

.SPACER,UPPER BRG,R

62684-36F00

$26.03

5

.SPACER,UPPER BRG,L

62685-36F00

$17.25

6

OIL SEAL (16X22X2.5)

09284-16005

$6.27

7

ROD, PISTON

62120-28H30

Unavailable

8

O RING SET

62150-28H30

$136.77

9

RING, STOPPER

62279-36E80

$5.00

10

ADJUSTER SET

62190-36F00

$131.02

11

SPRING SEAT SET

62220-36F00

$97.10

12

RING, STOPPER

62278-36E00

$9.70

13

..CAP,AIR VALVE

52194-46686

Unavailable

14

BLADDER

62273-36F00

$72.20

15

CAP, CHAMBER

62275-28H30

Unavailable

16

BOLT, PLUG

62130-28H30

Unavailable

17

O RING

62131-28E00

$5.63

18

O RING

51174-36EB0

$6.02

19

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

$11.12

20

NUT

09159-10115

$3.21

21

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$8.45

22

NUT

09159-10067

$5.60

23

SPRING (K=5.2) | OPT SOFT

62211-10H10

Unavailable

23

SPRING (K=5.4) | OPT SOFT

62211-10H00

Unavailable

23

SPRING (K=5.8) | OPT HARD

62211-28H00

Unavailable

23

SPRING (K=5.9) | OPT HARD

62211-35G40

Unavailable

23

SPRING (K=6.0) | OPT HARD

62211-28H30

Unavailable
