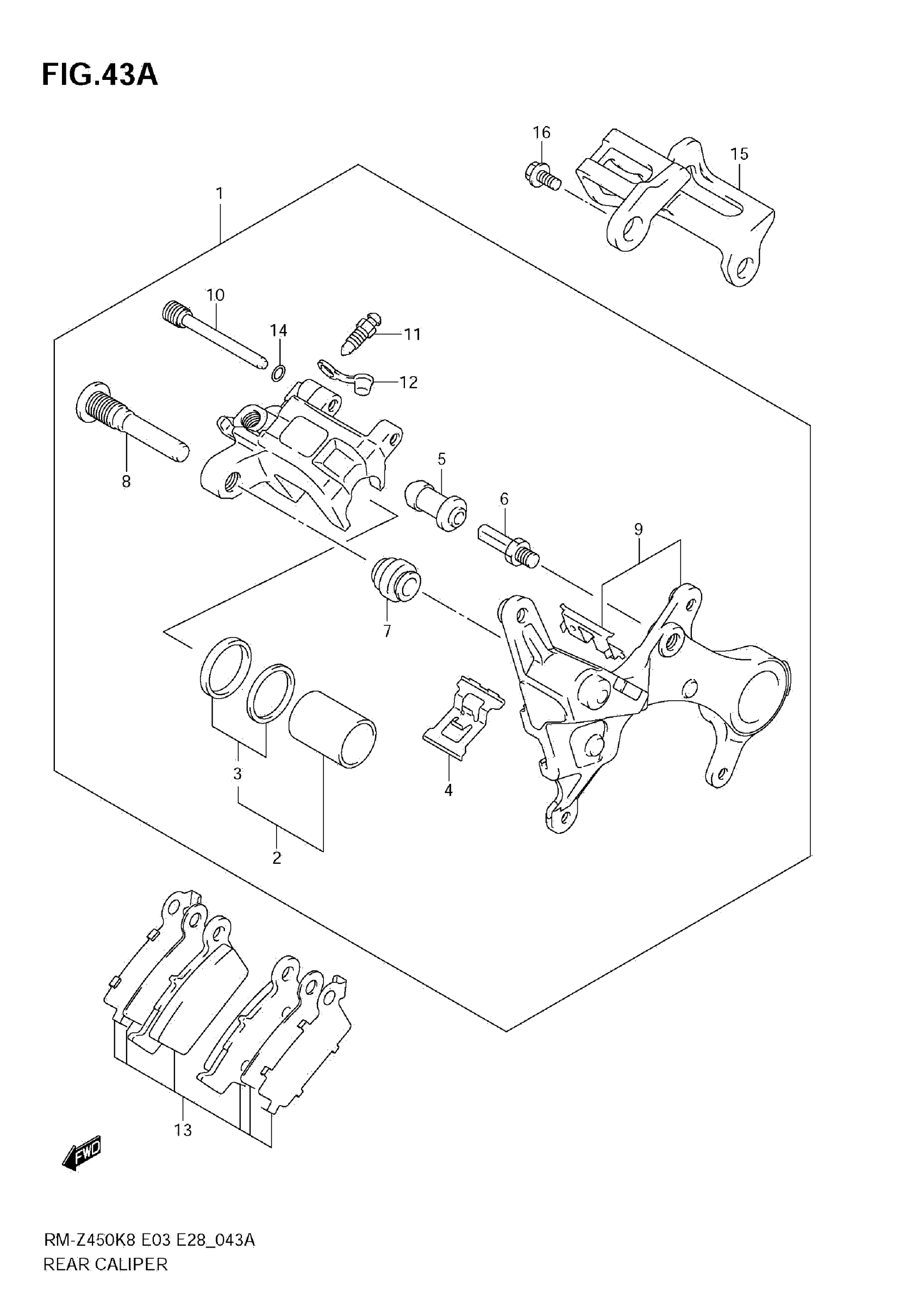

Suzuki RM-Z450K8 (2011) REAR CALIPER (RM-Z450 L1) Diagram

#

Description
Price

1

CALIPER ASSY,RR

69100-28H01-999

$500.10

2

PISTON SET

69100-14820

$38.97

3

SEAL SET, PISTON

69100-21840

$15.35

4

SPRING

69315-35G00

$13.40

5

BOOT

59386-13A00

$7.28

6

PIN

59382-14500

$8.43

7

BOOT

59303-14500

$5.06

8

PIN

59305-36E00

$17.14

9

.BRACKET,RR CALIPER

69350-28H00

$183.23

10

PIN

69345-37F00

$23.37

11

BLEEDER

59121-01A00

$7.99

12

CAP

59122-01A00

$3.97

13

PAD SET

69100-28820

$70.05

14

RING, STOPPER

59145-37F00

$6.30

15

GUARD, REAR CALIPER

69725-37F01

$29.07

16

BOLT (6X12)

09116-06197

$2.80
