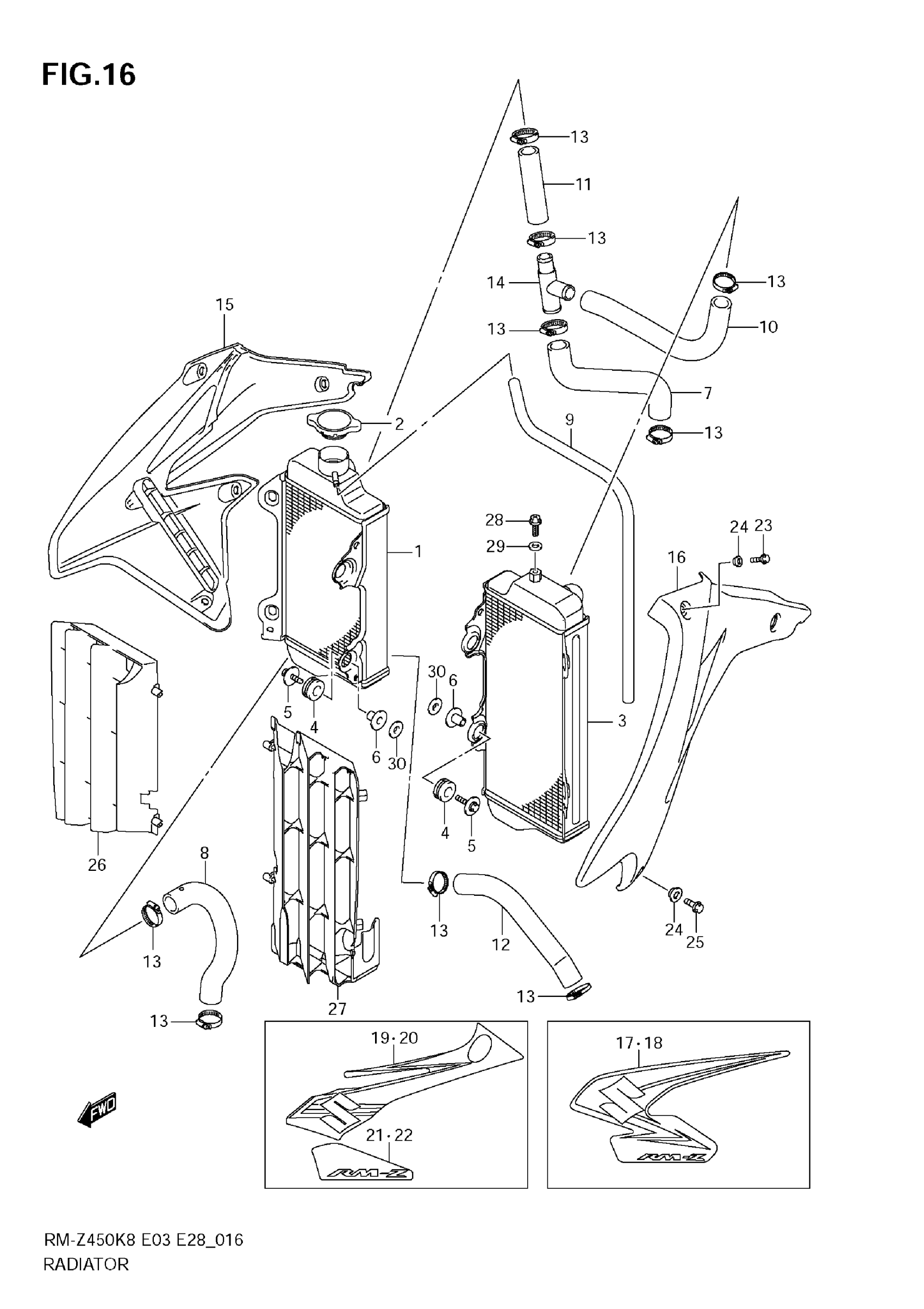

Suzuki RM-Z450K8 (2011) RADIATOR (RM-Z450 K8/K9) Diagram

#

Description
Price

1

RADIATOR, RH This part replaces 17710-28H20.

17710-28H21

$401.77

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

RADIATOR, LH

17720-28H20

$466.25

4

CUSHION, SUPPORT

17787-19A00

$3.56

5

BOLT (6X25)

09116-06186

$2.61

6

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

7

HOSE, INLET

17851-28H00

$18.58

8

HOSE, OUTLET

17852-28H00

$22.52

9

HOSE (5X8X2000) | L:1000->650 This part replaces 09351-50803-00A.

09351-50803-00B

$9.10

10

HOSE, JOINT UPPER NO.1

17853-28H00

$26.40

11

HOSE, JOINT UPPER NO.2

17854-28H00

Unavailable

12

HOSE, JOINT LOWER

17855-28H00

$18.18

13

CLAMP

09402-28513

$6.88

14

JOINT, RADIATOR HOSE

17857-35G10

$7.73

15

COVER, RADIATOR, RH (YELLOW/BLUE) | K8

17761-28H02-EYY

Unavailable

15

COVER, RADIATOR, RH (YELLOW/BLACK) | K9

17761-28H02-GY8

$104.82

16

COVER, RADIATOR, LH (YELLOW/BLUE) | K8

17762-28H02-EYY

Unavailable

16

COVER, RADIATOR, LH (YELLOW/BLACK) | K9

17762-28H02-GY8

$104.82

17

TAPE, RADIATOR COVER, RH | K8

68660-28H00-EMA

Unavailable

18

TAPE, RADIATOR COVER, LH | K8

68670-28H00-EMA

Unavailable

19

TAPE, RADIATOR COVER, RH | K9

68660-28H10-FYF

Unavailable

20

TAPE, RADIATOR COVER, LH | K9

68670-28H10-FYF

Unavailable

21

EMBLEM, RADIATOR COVER, RH | K9

68665-28H00-DCP

Unavailable

22

EMBLEM, RADIATOR COVER, LH | K9

68675-28H00-DCP

Unavailable

23

BOLT (6X12)

09103-06233

$2.11

24

WASHER This part replaces 47191-10H01.

47191-28H00

$9.60

25

BOLT (6X16)

09103-06234

$2.35

26

LOUVER, RADIATOR, R

17801-28H10

$52.22

27

LOUVER, RADIATOR, L

17802-28H10

$52.22

28

BOLT, AIR RELEASE

17568-50F00

$4.76

29

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

30

WASHER (6.2X24X3)

09160-06162

Unavailable
