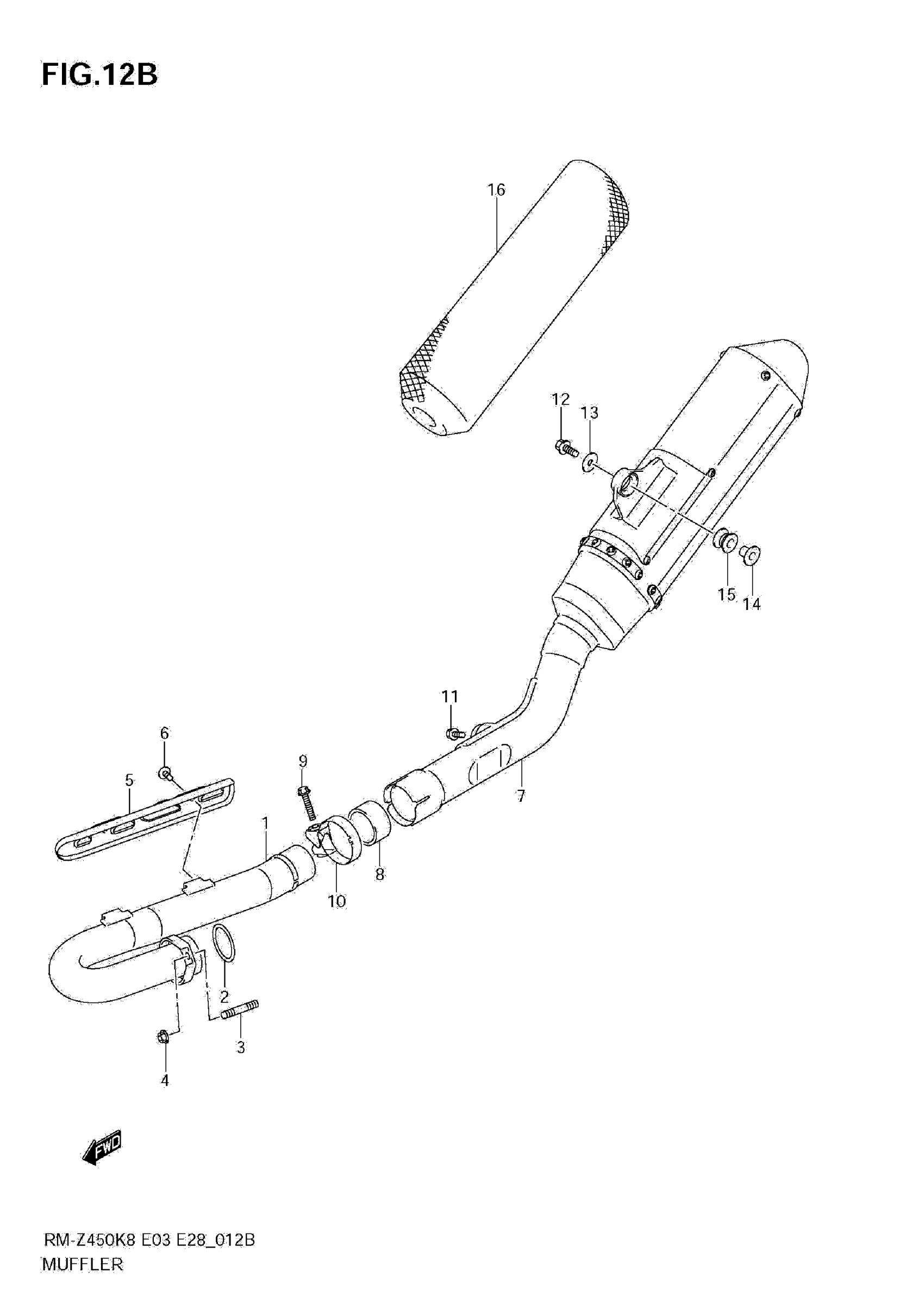

Suzuki RM-Z450K8 (2011) MUFFLER (RM-Z450 L1) Diagram

#

Description
Price

1

PIPE, EXHAUST This part replaces 14150-28H20.

14150-28H50

$233.83

2

.GASKET,EXHAUST PIPE

14181-35G00

$9.31

3

BOLT, STUD

01421-0820A

$1.91

4

NUT

08316-1008A

$2.45

5

COVER,EXHAUST PIPE

14186-28H20

$54.75

6

SCREW (6X8)

09139-06178

$4.72

7

BODY, MUFFLER

14310-28H50

Unavailable

8

CONNECTOR

14771-42F10

$23.13

9

BOLT (8X35)

09103-08391

$2.50

10

CLAMP, CONNECTOR

14459-28H00

$36.80

11

BOLT (8X20)

09103-08426

$4.60

12

BOLT (8X35)

09103-08391

$2.50

13

WASHER (8.5X26X1.6)

09160-08151

$1.99

14

SPACER (8.6X12X18.5)

09180-08157

$7.12

15

CUSHION

09320-12043

$7.98

16

SILENCER, MUFFLER | OPT

14351-28H40

Unavailable
