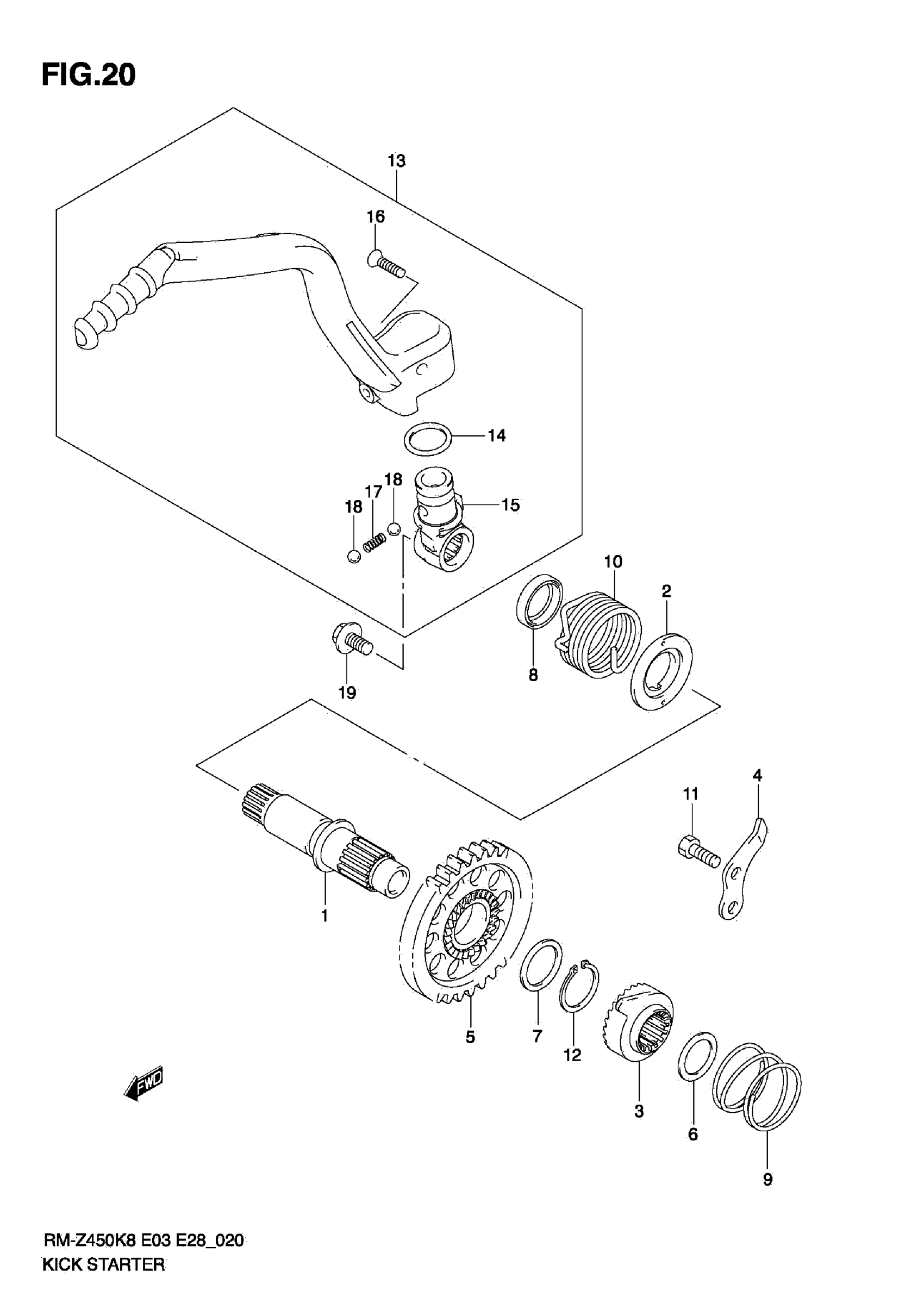

Suzuki RM-Z450K8 (2011) KICK STARTER (RM-Z450 K8/K9) Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-35G00

$131.97

2

GUIDE,KICK STARTER SFT SPRING

26221-35G00

$5.52

3

STARTER, KICK

26231-35G00

Unavailable

4

GUIDE, KICK STARTER

26232-35G00

$8.32

5

GEAR, KICK STARTER DRIVE | NT:32

26240-35G00

$154.77

6

WASHER (17X24X0.5)

09181-17130

$2.80

7

WASHER (20X26X1.0)

09181-20139

$1.82

8

SEAL (20X27X5)

09283-20031

$4.73

9

SPRING

09440-32002

$2.10

10

SPRING

09448-38007

$6.31

11

BOLT

01500-0612B

$2.68

12

CIRCLIP

08331-3120A

$2.01

13

LEVER ASSY,KICK This part replaces 26300-28H00.

26300-28H01

$310.93

14

.O-RING This part replaces 26313-28E20.

26313-28E21

$2.45

15

JOINT, KICK STARTER LEVER

26331-28H00

$92.72

16

SCREW (6X27.5)

09127-06016

$2.80

17

SPRING

09440-05031

$1.45

18

BALL

06111-07004

$1.22

19

BOLT (8X14)

09103-08253

$2.84
