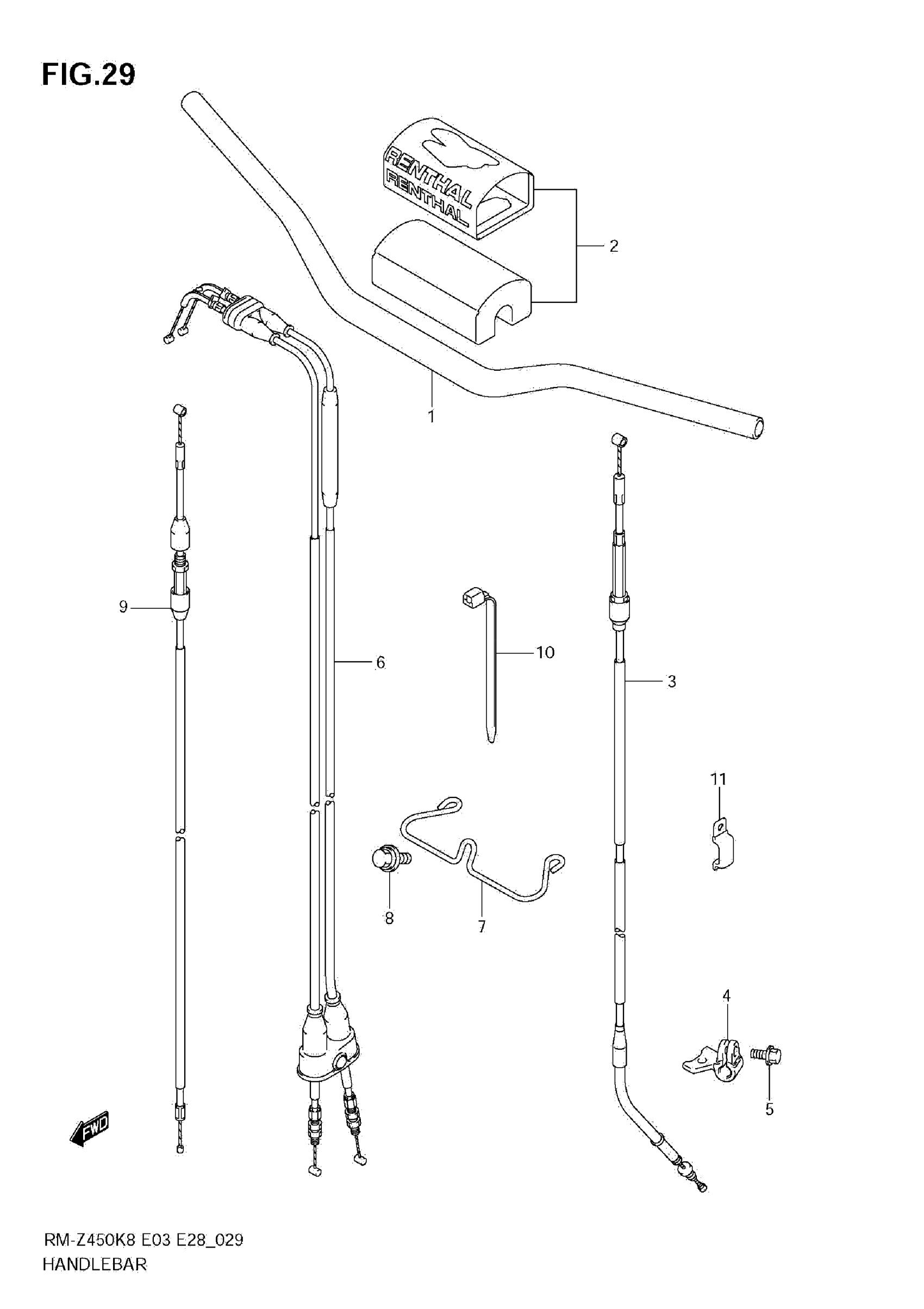

Suzuki RM-Z450K8 (2011) HANDLEBAR (RM-Z450 K8/K9/L0) Diagram

#

Description
Price

1

HANDLEBAR

56111-35G00

Unavailable

2

PAD, HANDLEBAR | K8/K9

56170-35G10

Unavailable

2

PAD, HANDLEBAR | L0

56170-35G20

Unavailable

3

CABLE ASSY,CLUT This part replaces 58210-28H00.

58210-28H01

$45.62

4

BRACKET,CLUTCH CABLE

58212-28H00

$116.62

5

BOLT (6X12)

09103-06233

$2.18

6

CABLE SET, THROTTLE | K8

58301-28H00

$137.47

6

CABLE SET, THROTTLE | K9

58301-28H10

$142.70

6

CABLE SET,THROT | L0 This part replaces 58301-28H20.

58301-28H21

$103.42

7

GUIDE, THROTTLE CABLE | K8/K9

58311-28H00

Unavailable

7

GUIDE, THROTTLE CABLE | L0

58311-28H10

Unavailable

8

BOLT (6X16)

09116-06200

$4.03

9

CABLE ASSY,HOT This part replaces 58900-28H00.

58900-28H01

$46.98

10

CLAMP (L:95)

09407-10403

Unavailable

10

CLAMP (L:154)

09407-17403

$4.63

10

CLAMP (L:165)

09407-18402

$2.21

11

CLAMP This part replaces 09403-10307.

09403-10328

$2.05
