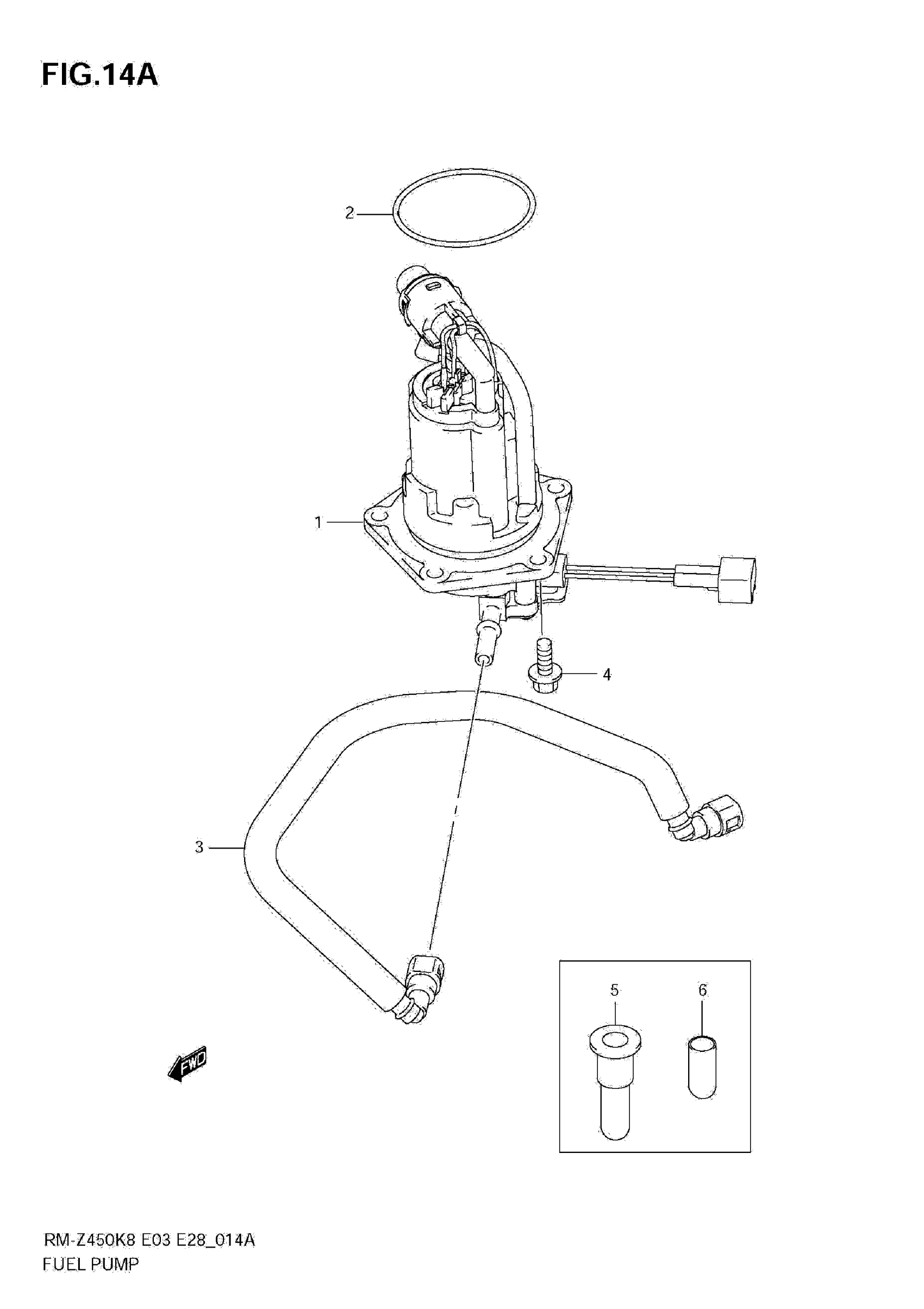

Suzuki RM-Z450K8 (2011) FUEL PUMP (RM-Z450 L1) Diagram

#

Description

Price

1

PUMP ASSY, FUEL This part replaces 15100-28H00.

15100-28H11

$390.99

2

O-RING

15111-28H00

$31.10

3

HOSE, FUEL This part replaces 15810-28H10.

15810-28H12

$65.70

4

BOLT

01547-06207

$2.09

5

CAP, FUEL HOSE

15819-28H00

$5.73

6

CAP, FUEL PUMP

15114-28H00

$5.83
