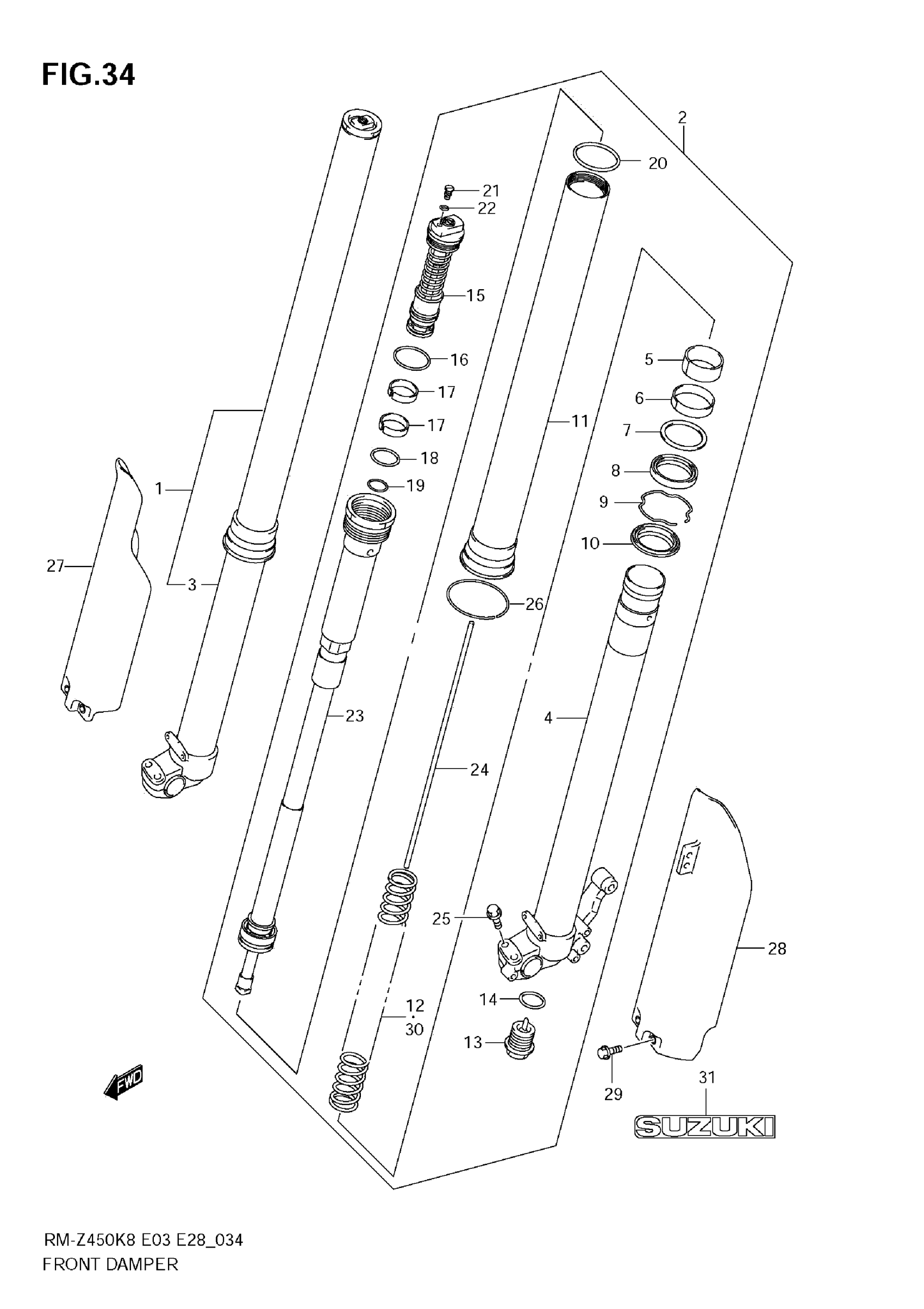

Suzuki RM-Z450K8 (2011) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH | K8/K9

51103-28H00

Unavailable

1

DAMPER ASSY, FRONT FORK RH | L0/L1

51103-28H10

Unavailable

2

DAMPER ASSY, FRONT FORK LH | K8/K9

51104-28H00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | L0/L1

51104-28H10

Unavailable

3

TUBE, INNER RH | K8/K9

51110-35G30

Unavailable

3

TUBE, INNER RH | L0/L1

51110-28H10

$459.98

4

TUBE, INNER LH | K8/K9

51120-35G30

Unavailable

4

TUBE, INNER LH | L0/L1

51120-28H10

Unavailable

5

BUSH, GUIDE | K8/K9

51121-36F00

$27.62

5

BUSH, GUIDE | L0/L1

51121-28H10

$17.37

6

BUSH, GUIDE | K8/K9

51167-36F00

$23.85

6

BUSH, GUIDE | L0/L1

51167-28H10

$28.18

7

SPACER, SEAL

51158-36F00

$9.37

8

SEAL, OIL

51153-37F80

$29.48

9

RING, OIL SEAL STOPPER

51156-27C40

$5.19

10

SEAL, DUST

51173-37F80

$26.58

11

TUBE, OUTER

51130-28H01

Unavailable

12

SPRING, FRONT (K=0.46) | K8/K9

51171-28H00

Unavailable

12

SPRING, FRONT (K=0.50) | L0/L1

51171-28H40

Unavailable

13

BOLT, CENTER

51170-37FC0

$182.88

14

O RING

51177-36E20

$4.10

15

BOLT, FORK | K8/K9

51351-28H00

Unavailable

15

BOLT, FORK | L0/L1

51351-28H10

Unavailable

16

O RING

51117-37F80

$6.93

17

BUSH, FORK BOLT SLIDE | K8/K9

51123-10H10

Unavailable

17

BUSH, FORK BOLT SLIDE | L0/L1

51123-28H10

$18.02

18

O RING

51174-36E40

$4.25

19

O RING

51175-37F80

$5.83

20

O RING

51118-37F80

$6.93

21

..BOLT,PLUG

51357-36F20

$14.37

22

...O-RING

51358-28E30

$4.28

23

ROD, DAMPER | K8/K9

51190-28H00

Unavailable

23

ROD, DAMPER | L0/L1

51190-28H10

Unavailable

24

ROD, PUSH

51191-10H10

$23.10

25

BOLT

51328-37F80

$7.25

26

RING STOPPER

51211-37FC0

$10.18

27

PROTECTOR, RH

51501-28H00

$125.17

28

PROTECTOR, LH

51511-28H00

$125.17

29

BOLT (6X10)

09111-06098

$2.92

30

SPRING, FRONT (K=0.45) | OPT

51171-28H10

$175.18

30

SPRING, FRONT (K=0.49) | OPT

51171-28H20

Unavailable

30

SPRING, FRONT (K=0.46) | OPT

51171-10H30

Unavailable

30

SPRING, FRONT (K=0.48) | OPT

51171-28H30

Unavailable

31

EMBLEM,SUZUKI This part replaces 68661-29F00-DPZ.

68661-29F01-DPZ

$23.27
