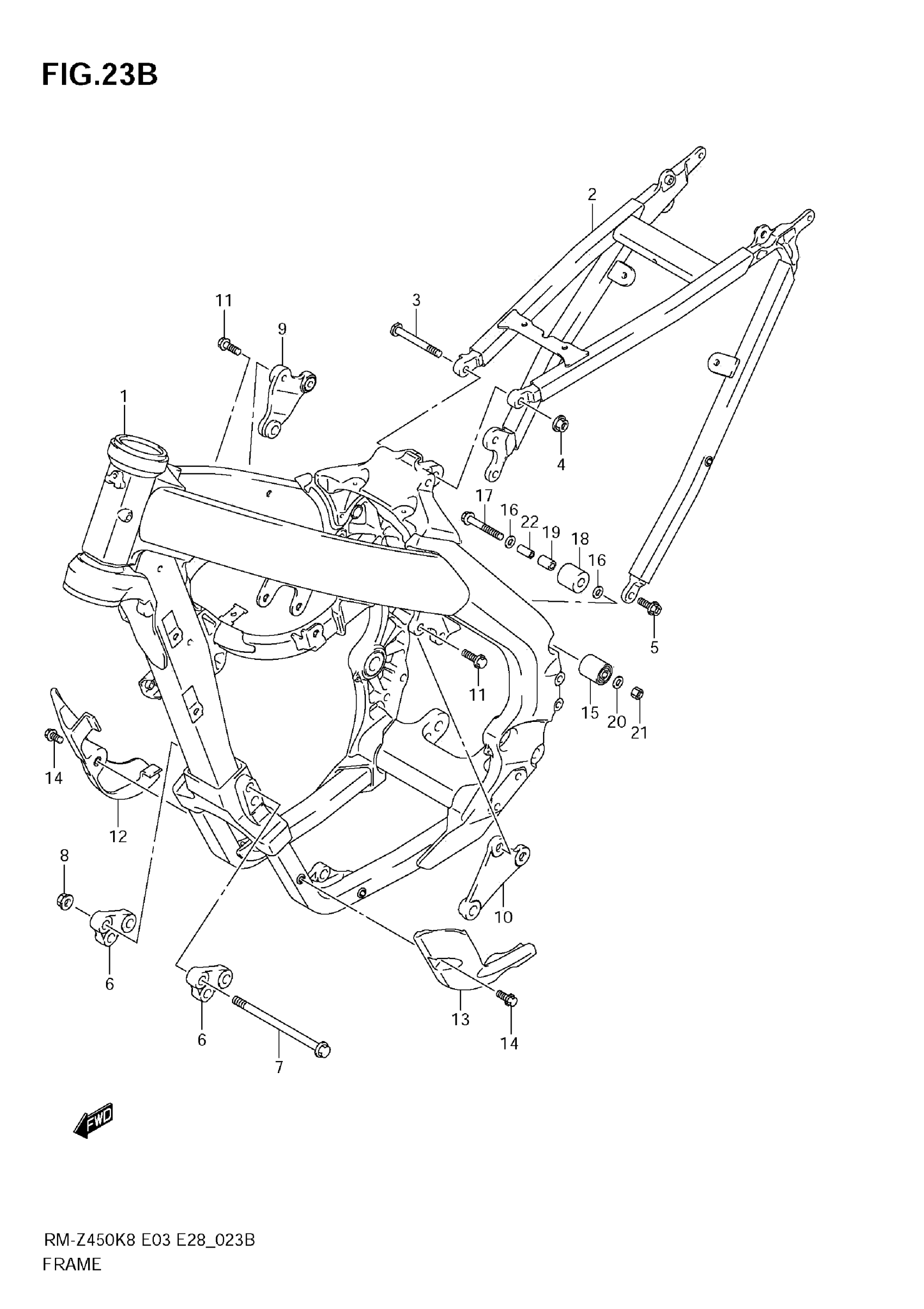

Suzuki RM-Z450K8 (2011) FRAME (RM-Z450 L1) Diagram

#

Description
Price

1

FRAME

41100-28H20

Unavailable

2

RAIL, SEAT This part replaces 41200-28H30.

41200-28H40

Unavailable

3

BOLT, UPPER

41311-28H20

$19.12

4

NUT

09159-08146

$7.22

5

BOLT (8X23)

09103-08506

$5.78

6

BRACKET, ENGINE MOUNT FRONT

41991-28H10

$70.15

7

BOLT (10X135)

09103-10403

$15.83

8

NUT

09159-10122

$7.63

9

BRACKET,ENGINE This part replaces 41993-28H00.

41930-28H30

Unavailable

10

BRACKET, ENGINE MOUNT UPPER LH This part replaces 41994-28H00.

41940-28H30

Unavailable

11

BOLT (8X21)

09103-08404

$3.72

12

PROTECTOR, FRONT RH

42520-28H01

$26.72

13

PROTECTOR, FRONT LH

42530-28H10

$33.43

14

BOLT (6X25)

09116-06177

$2.50

15

ROLLER, CHAIN LOWER

43910-35G00

$65.18

16

WASHER (8.5X23X1.5)

09160-08081

$2.56

17

BOLT (8X45)

09103-08207

$2.51

18

ROLLER, CHAIN UPPER

43911-28H00

$10.32

19

COLLAR, CHAIN ROLLER

43912-28H00

Unavailable

20

WASHER (8X12X1)

09181-08111

$1.93

21

NUT

08319-2108A

$2.12

22

SPACER (8.6X12.2X25.5)

09180-08214

$5.18
