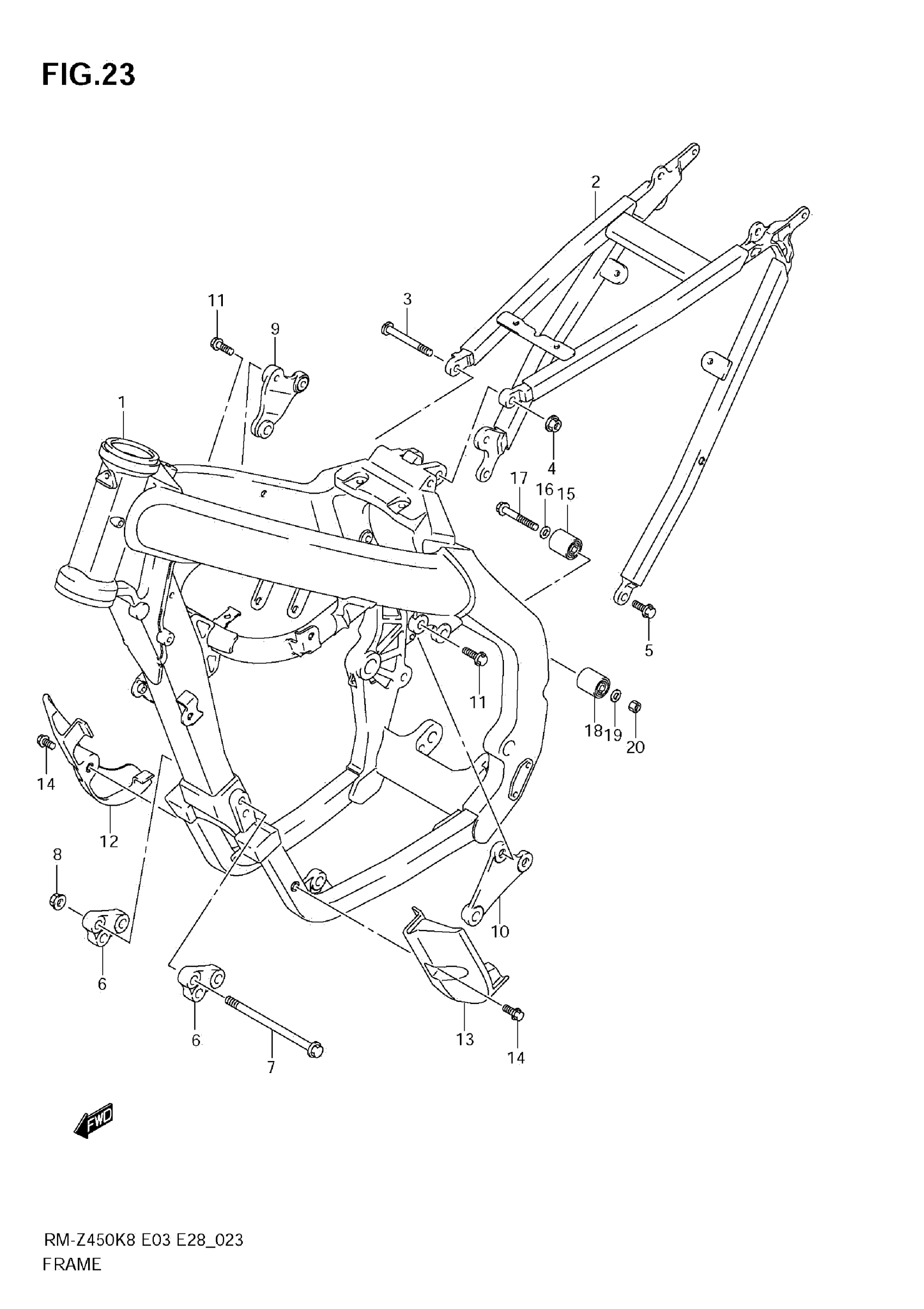

Suzuki RM-Z450K8 (2011) FRAME (RM-Z450 K8/K9) Diagram

#

Description
Price

1

FRAME

41100-28H01

Unavailable

2

RAIL, SEAT | K8

41200-28H00

Unavailable

2

RAIL, SEAT | K9

41200-28H10

Unavailable

3

BOLT, UPPER

41311-28H10

$21.98

4

NUT

08319-3108A

$2.31

5

BOLT (8X20)

09103-08426

$5.87

6

BRACKET, ENGINE MOUNT FRONT

41991-28H10

$79.17

7

BOLT (10X135)

09103-10403

$17.21

8

NUT

09159-10115

$3.21

9

BRACKET,ENGINE This part replaces 41993-28H00.

41930-28H30

Unavailable

10

BRACKET, ENGINE MOUNT UPPER LH This part replaces 41994-28H00.

41940-28H30

Unavailable

11

BOLT (8X21)

09103-08404

$4.03

12

PROTECTOR, FRONT RH

42520-28H01

$30.17

13

PROTECTOR, FRONT LH

42530-28H00

$31.30

14

BOLT (6X25)

09116-06177

$3.05

15

ROLLER, CHAIN UPPER

43910-37F00

$77.40

16

WASHER (8X16X1)

09181-08167

$1.98

17

BOLT (8X45)

09103-08207

$2.59

18

ROLLER, CHAIN LOWER

43910-35G00

$73.57

19

WASHER (8X12X1)

09181-08111

$1.95

20

NUT

08319-2108A

$2.13
