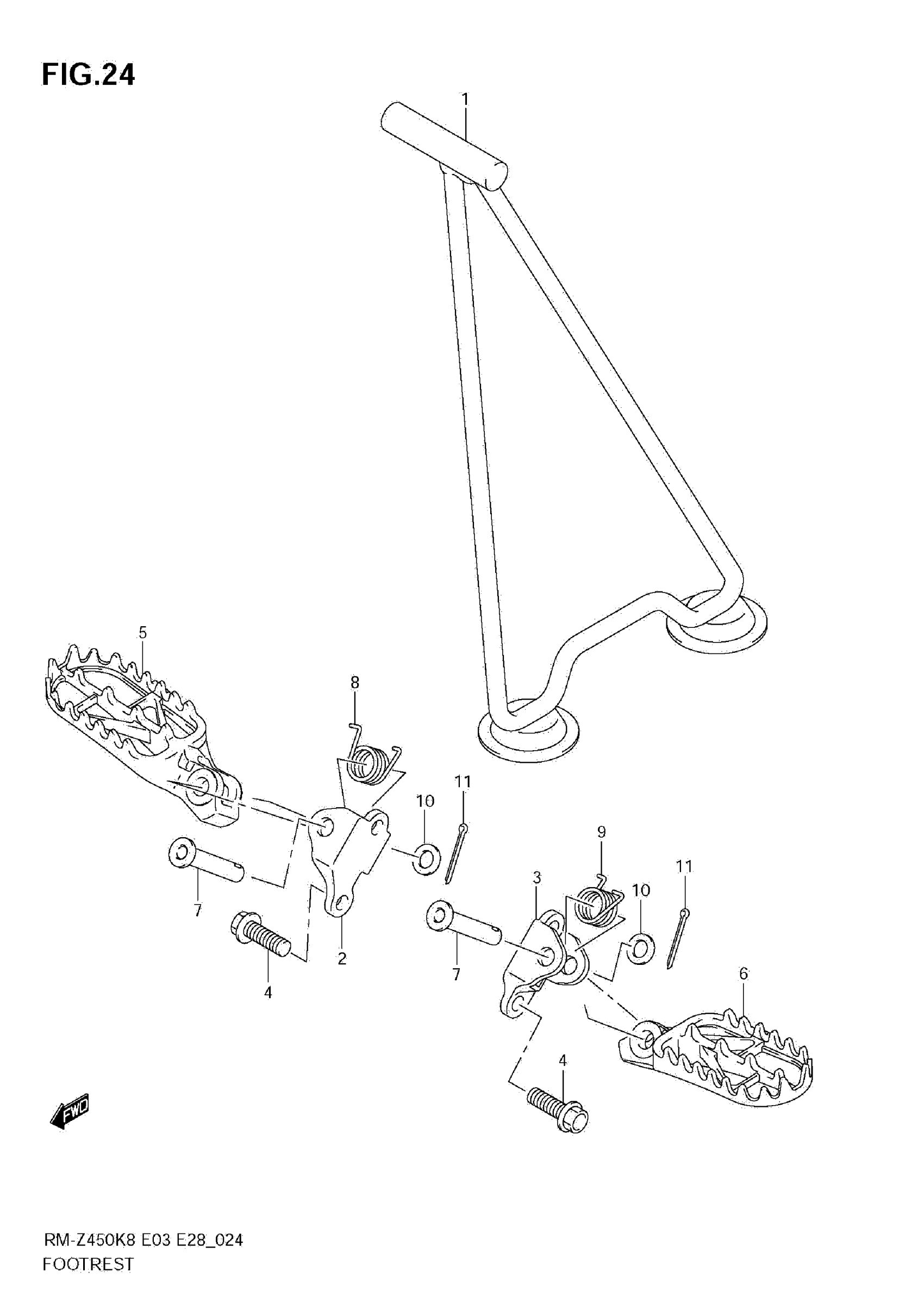

Suzuki RM-Z450K8 (2011) FOOTREST (RM-Z450 K8/K9/L0) Diagram

#

Description
Price

1

STAND | K8/K9

42310-35G00

Unavailable

1

STAND | L0

42310-28H00

Unavailable

2

BRACKET, FOOTREST RH | K8/K9

41855-28H00

Unavailable

2

BRACKET, FOOTREST RH | L0

41855-28H10

$151.97

3

BRACKET, FOOTREST LH | K8/K9

41865-28H00

Unavailable

3

BRACKET, FOOTREST LH | L0

41865-28H10

$146.38

4

BOLT (10X25)

09103-10415

$4.52

5

FOOTREST, RH | K8/K9

43551-28H01

Unavailable

5

FOOTREST, RH | L0

43551-28H10

$98.37

6

FOOTREST, LH | K8/K9

43561-28H01

Unavailable

6

FOOTREST, LH | L0

43561-28H10

$85.63

7

PIN

09200-10019

$6.83

8

SPRING, RH | K8/K9

09448-18035

$6.80

8

SPRING, RH | L0

09448-21012

$7.40

9

SPRING, LH | K8/K9

09448-18036

Unavailable

9

SPRING, LH | L0

09448-21013

$7.02

10

WASHER (10.5X18X1)

09160-10121

$2.03

11

COTTER PIN

04111-2520A

$1.49
