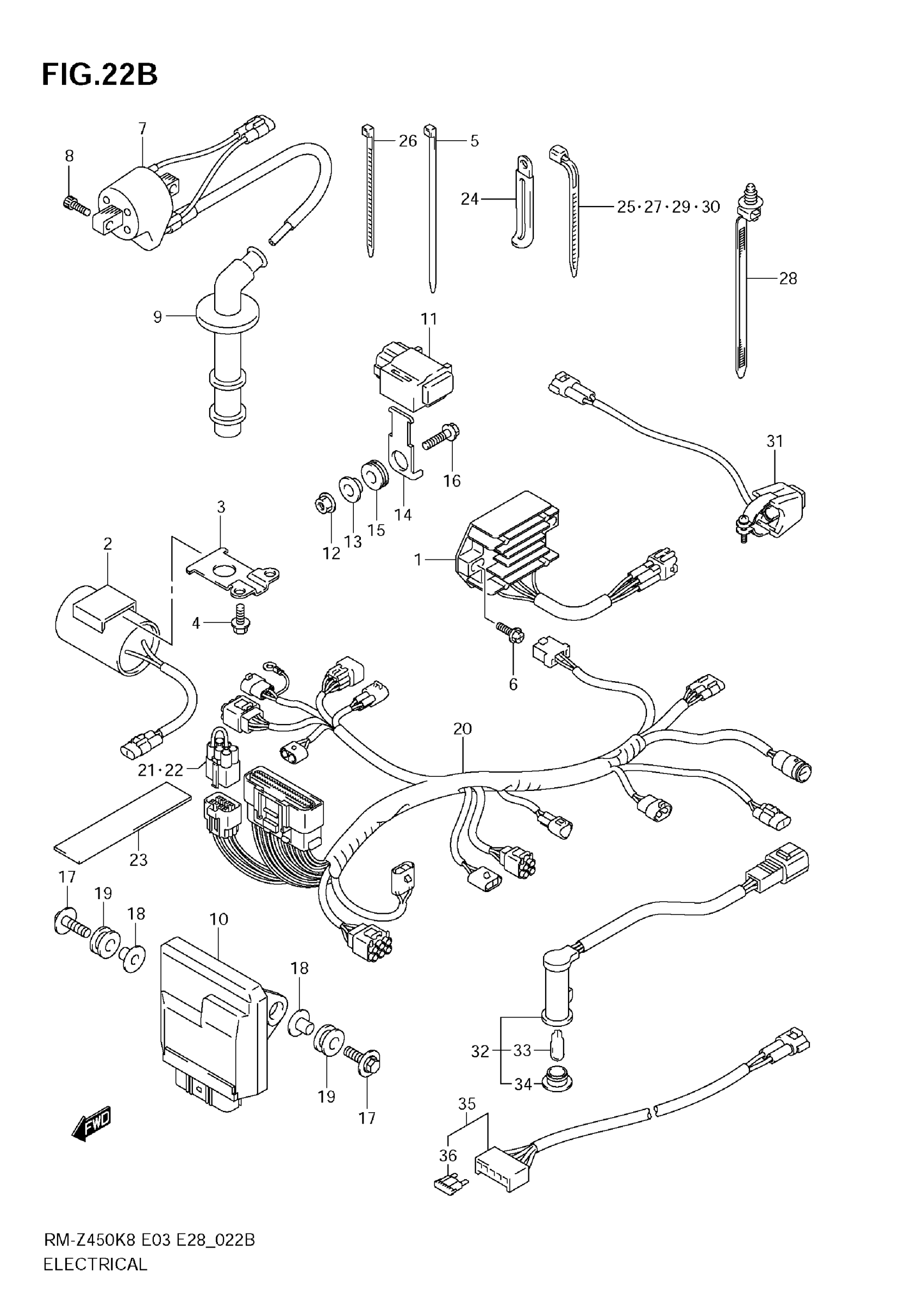

Suzuki RM-Z450K8 (2011) ELECTRICAL (RM-Z450 L1) Diagram

#

Description
Price

1

RECTIFIER ASSY

32800-28H00

$235.75

2

CONDENSER ASSY

33640-28H00

$157.50

3

BRACKET, CONDENSER

33641-28H00

Unavailable

4

BOLT (6X10)

09103-06188

$2.90

5

CLAMP, CONDENSER

09407-10404

$2.90

6

BOLT

02162-0620C

$1.71

7

COIL ASSY, IGNITION

33410-35G10

$126.57

8

BOLT

07130-0620A

$2.50

9

CAP ASSY,SPARK PLUG

33510-28H00

$59.80

10

CONTROL UNIT, FI

32920-28H60

$691.07

11

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

12

NUT

08316-1006A

$2.19

13

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

14

BRACKET

33961-28H10

Unavailable

15

CUSHION

09320-08501

$3.23

16

BOLT

01547-0620A

$2.03

17

BOLT (6X20)

09116-06182

$2.30

18

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

19

CUSHION,CABLE H This part replaces 09320-08076.

09320-08517

$5.17

20

HARNESS,WIRING This part replaces 36610-28H30.

36610-28H31

$352.55

21

WIRE,SHORT This part replaces 36852-28H00.

36852-28H01

$13.57

22

WIRE,SHORT This part replaces 36852-49H00.

36852-49H01

$11.48

23

PROTECTOR, HARNESS

36930-82010

$3.05

24

CLAMP (L:45)

09404-06429

$1.83

25

CLAMP (L:95)

09407-11401

$2.63

26

CLAMP (L:95)

09407-10403

Unavailable

27

CLAMP (L:125)

09407-14403

$2.26

28

CLAMP (L:154)

09407-17403

$4.91

29

CLAMP (L:165)

09407-18402

$2.19

30

CLAMP (L:235)

09407-25401

$4.66

31

SWITCH ASSY,ENGINE STOP

37820-36E00

$25.46

32

LAMP ASSY, FI INDICATOR | OPT

36380-28H00

$77.55

33

BULB (12V3.4W) | OPT

09471-12028

$1.99

34

LENS (RED) | OPT

36321-28H00

$10.58

35

WIRE, BATTERY | OPT

36890-28H00

$47.33

36

FUSE (10A) | OPT

09481-10101

$2.07
