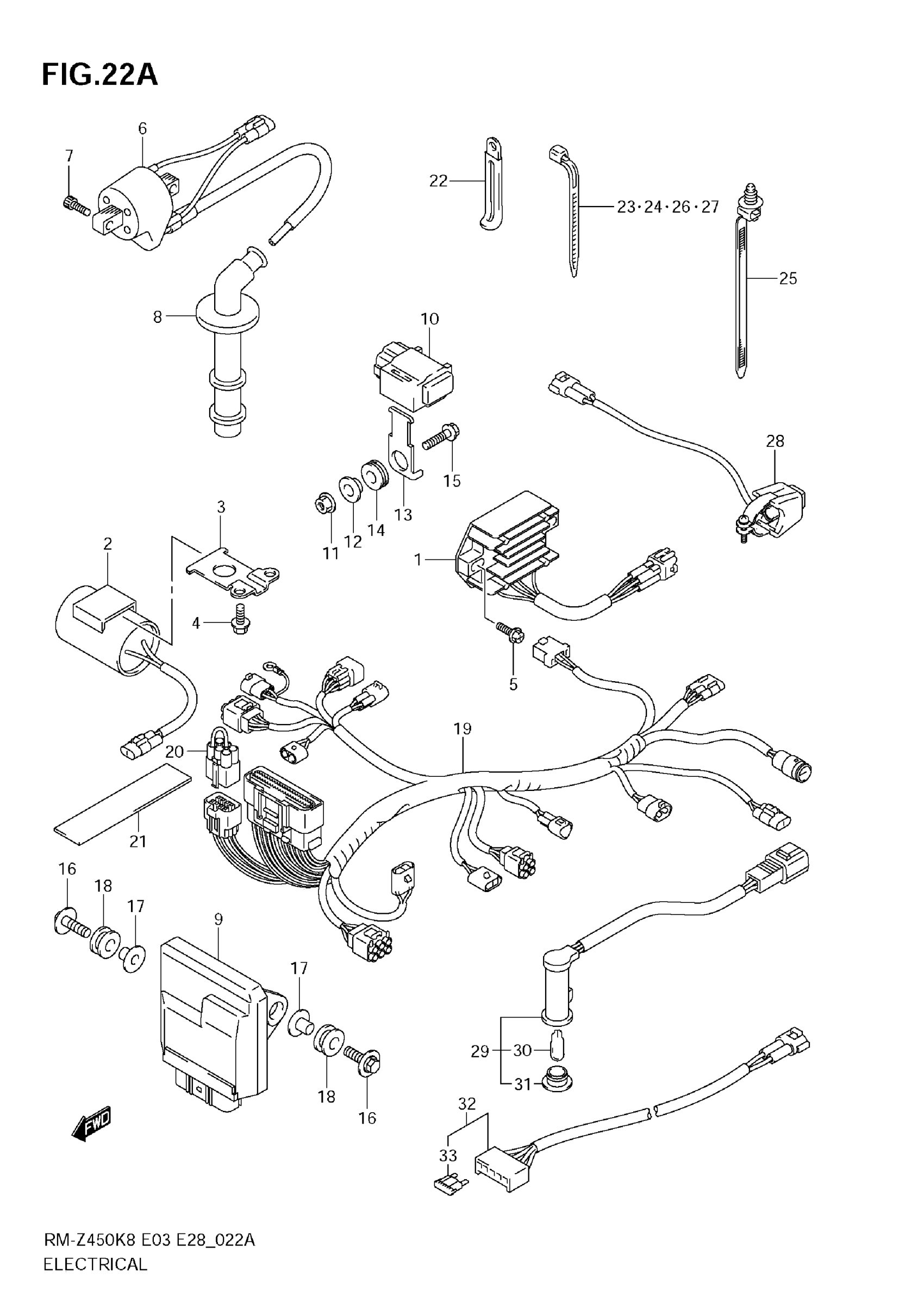

Suzuki RM-Z450K8 (2011) ELECTRICAL (RM-Z450 L0) Diagram

#

Description
Price

1

RECTIFIER ASSY

32800-28H00

$186.93

2

CONDENSER ASSY

33640-28H00

$146.91

3

BRACKET, CONDENSER

33641-28H00

Unavailable

4

BOLT (6X10)

09103-06188

$3.17

5

BOLT

02162-0620C

$1.73

6

COIL ASSY, IGNITION

33410-35G10

$142.17

7

BOLT

07130-0620A

$2.50

8

CAP ASSY,SPARK PLUG

33510-28H00

$67.48

9

CONTROL UNIT, FI

32920-28H41

Unavailable

10

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

11

NUT

08316-1006A

$2.19

12

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

13

BRACKET

33961-28H10

Unavailable

14

CUSHION

09320-08501

$2.95

15

BOLT

01547-0620A

$2.01

16

BOLT (6X20)

09116-06182

$2.33

17

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

18

CUSHION,CABLE H This part replaces 09320-08076.

09320-08517

$5.62

19

HARNESS, WIRING

36610-28H10

Unavailable

20

WIRE,SHORT This part replaces 36852-28H00.

36852-28H01

$14.88

21

PROTECTOR, HARNESS

36930-82010

$4.05

22

CLAMP (L:45)

09404-06429

$1.82

23

CLAMP (L:95)

09407-11401

$2.87

24

CLAMP (L:125)

09407-14403

$2.24

25

CLAMP (L:154)

09407-17403

$4.63

26

CLAMP (L:165)

09407-18402

$2.21

27

CLAMP (L:235)

09407-25401

$4.21

28

SWITCH ASSY,ENGINE STOP

37820-36E00

$22.19

29

LAMP ASSY, FI INDICATOR | OPT

36380-28H00

$87.52

30

BULB (12V3.4W) | OPT

09471-12028

$1.98

31

LENS (RED) | OPT

36321-28H00

$11.93

32

WIRE, BATTERY | OPT

36890-28H00

$51.95

33

FUSE (10A) | OPT

09481-10101

$0.68
