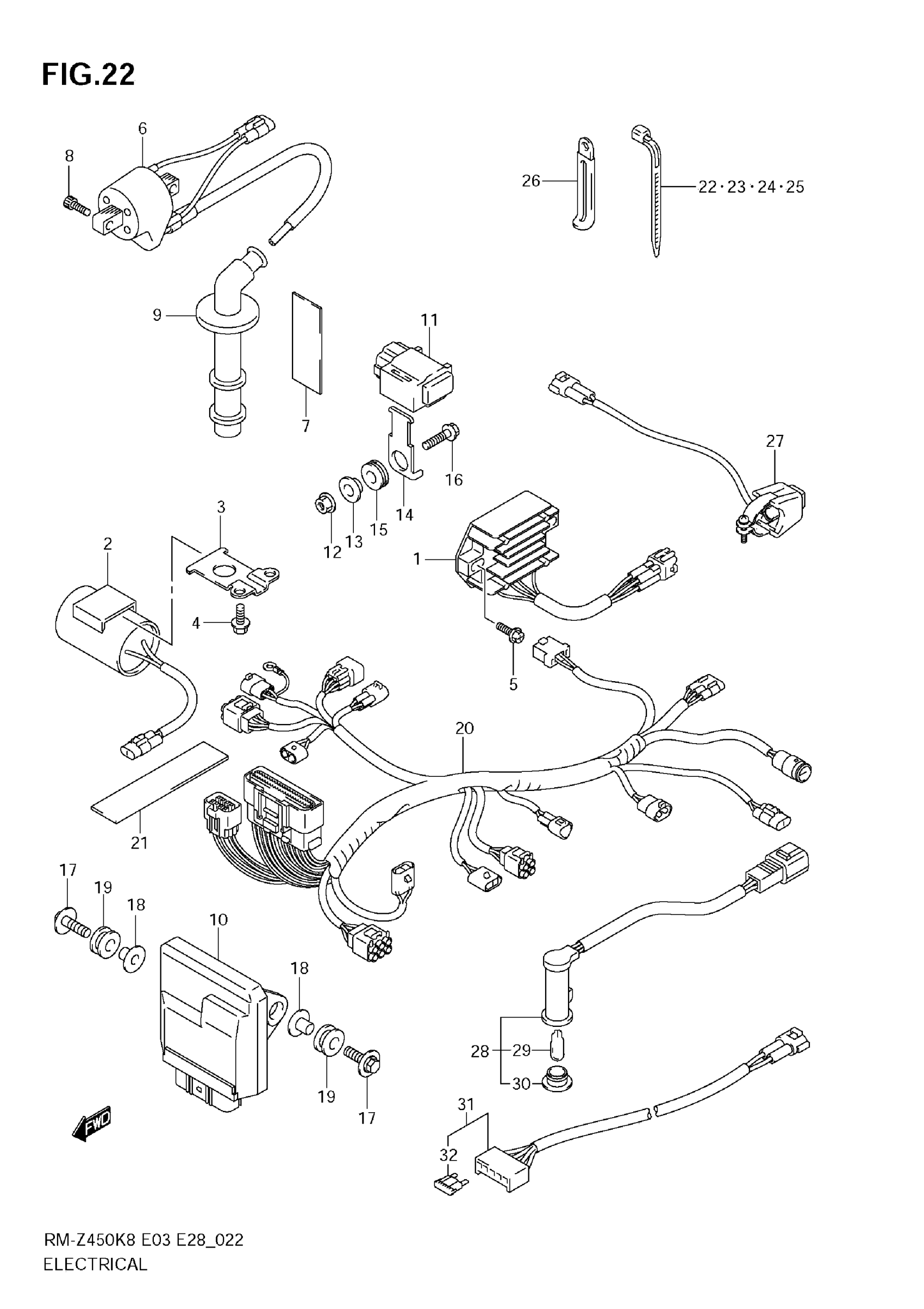

Suzuki RM-Z450K8 (2011) ELECTRICAL (RM-Z450 K8/K9) Diagram

#

Description
Price

1

RECTIFIER ASSY | K8 This part replaces 32800-95B50.

32800-87K10

Unavailable

1

RECTIFIER ASSY | K9 %JS1RL42A000504732

32800-87K10

Unavailable

1

RECTIFIER ASSY | K9 JS1RL42A000504733%

32800-28H00

$186.93

2

CONDENSER ASSY

33640-28H00

$146.91

3

BRACKET, CONDENSER

33641-28H00

Unavailable

4

BOLT (6X10)

09103-06188

$3.17

5

BOLT | K8/K9 %JS1RL42A000504732

02162-0625A

$1.68

5

BOLT | K9 JS1RL42A000504733%

02162-0620C

$1.73

6

COIL ASSY, IGNITION

33410-35G10

$142.17

7

PROTECTOR, IGNITION COIL

33652-29F00

$2.80

8

BOLT

07130-0620A

$2.50

9

CAP ASSY,SPARK PLUG

33510-28H00

$67.48

10

CONTROL UNIT, FI | K8

32920-28H01

$736.10

10

CONTROL UNIT, FI | K9

32920-28H20

Unavailable

11

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

12

NUT

08316-1006A

$2.19

13

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

14

BRACKET, FUEL CUT

33961-28H00

Unavailable

15

CUSHION

09320-08501

$2.95

16

BOLT

01547-0620A

$2.01

17

BOLT (6X20)

09116-06182

$2.33

18

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

19

CUSHION,CABLE H This part replaces 09320-08076.

09320-08517

$5.62

20

HARNESS, WIRING | K8

36610-28H00

Unavailable

20

HARNESS, WIRING | K9

36610-28H20

Unavailable

21

PROTECTOR,20X90X1.0 (20X90X1. | 20X90X1.0

33652-26E00

$4.18

22

CLAMP (L:95)

09407-11401

$2.87

23

CLAMP (L:125)

09407-14403

$2.24

24

CLAMP (L:165)

09407-18402

$2.21

25

CLAMP (L:235)

09407-25401

$4.21

26

CLAMP (L:45)

09404-06429

$1.82

27

SWITCH ASSY,ENGINE STOP

37820-36E00

$22.19

28

LAMP ASSY, FI INDICATOR | OPT

36380-28H00

$87.52

29

BULB (12V 3.4W,T10) | OPT

09471-12028

$1.98

30

LENS (RED) | OPT

36321-28H00

$11.93

31

WIRE, BATTERY | OPT

36890-28H00

$51.95

32

FUSE (10A) | OPT

09481-10101

$0.68
