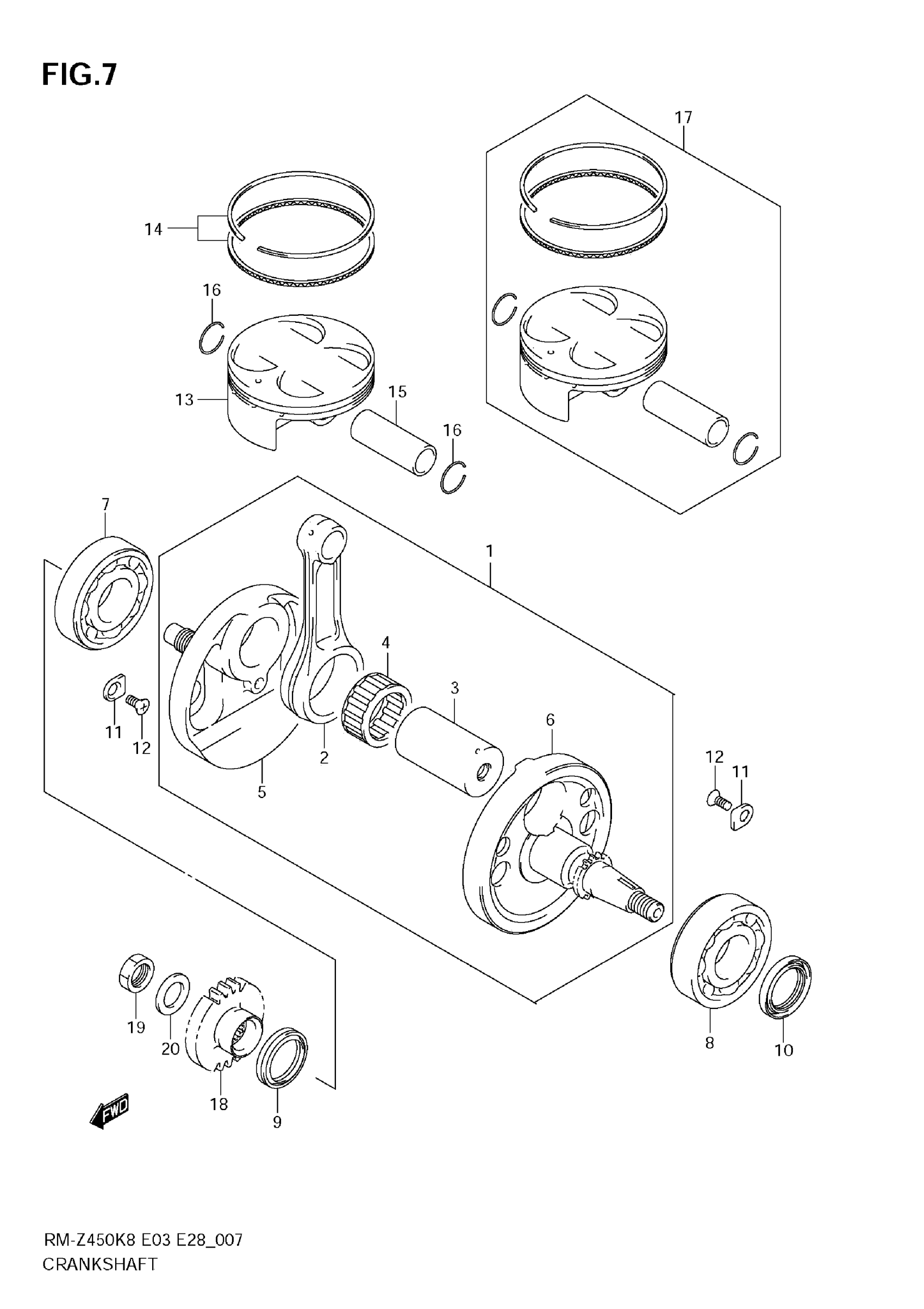

Suzuki RM-Z450K8 (2011) CRANKSHAFT (RM-Z450 K8/K9/L0) Diagram

#

Description
Price

1

CRANKSHAFT ASSY | K8/K9 This part replaces 12200-28H01.

12200-28H12

Unavailable

1

CRANKSHAFT ASSY | L0 This part replaces 12200-28H11.

12200-28H12

Unavailable

2

ROD, CONNECTING

12160-28H00-0B0

$230.95

3

PIN This part replaces 12210-35G02.

12210-35G03

$105.67

4

BEARING (34X42X20)

09263-34014-0B0

$152.90

5

CRANKSHAFT, RH | K8/K9 This part replaces 12220-28H00.

12220-28H10

Unavailable

5

CRANKSHAFT, RH | L0

12220-28H10

Unavailable

6

CRANKSHAFT, LH | K8/K9 This part replaces 12261-28H00.

12261-28H10

Unavailable

6

CRANKSHAFT, LH | L0

12261-28H10

Unavailable

7

BEARING (30X72X19) | RH

09262-30115

$96.62

8

BEARING (32X75X20 ) | LH

09262-32017

$144.80

9

SEAL,OIL (30X40X7) | RH This part replaces 09283-30061.

09283-30076

$13.82

10

SEAL,OIL | LH This part replaces 09283-32037.

09283-32044

$19.09

11

RETAINER

24741-20A00

$2.80

12

SCREW (6X12)

09126-06011

$2.01

13

PISTON | K8/K9 This part replaces 12111-28H00-0F0.

12111-28H10-0F0

$294.72

13

PISTON | L0

12111-28H10-0F0

$294.72

14

RING SET, PISTON

12140-28810

$75.90

15

PIN, PISTON

12151-35G01

$24.46

16

RING,SNAP

09381-19001

$2.08

17

PISTON KIT INC.REF.NO.13%16 | OPT K8/K9

12110-28810

$365.82

17

PISTON KIT INC.REF.NO.13%16 | OPT L0

12110-28820

$365.82

18

GEAR,PRIMARY DRIVE (NT:24)

21111-28H00

Unavailable

19

NUT

09140-16036

$16.05

20

WASHER

09164-16002

$2.90
