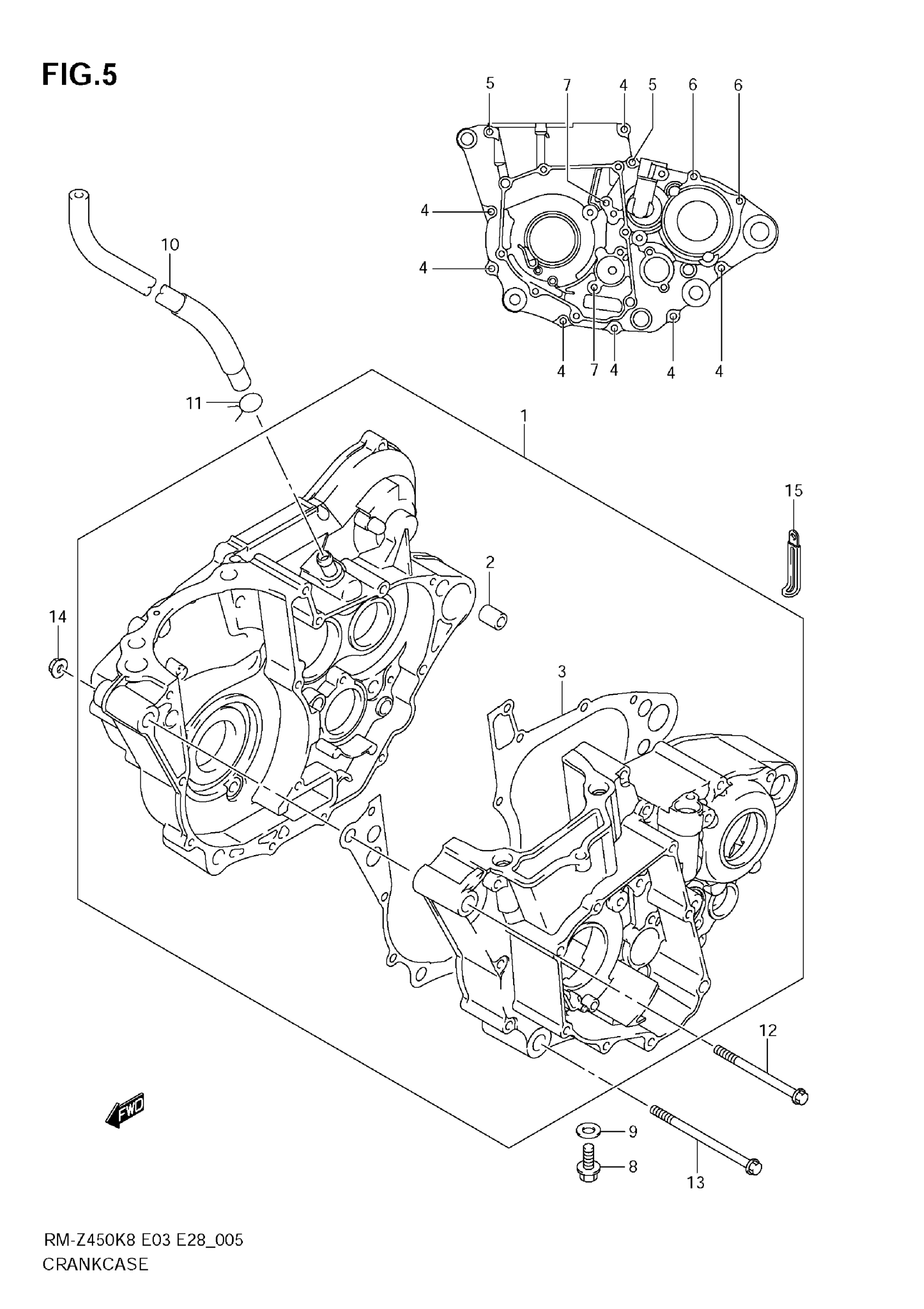

Suzuki RM-Z450K8 (2011) CRANKCASE (RM-Z450K 8/K9/L0) Diagram

#

Description
Price

1

CRANKCASE SET | K8

11301-28842

Unavailable

1

CRANKCASE SET | K9/L0 This part replaces 11301-28862.

11301-28863

$1,199.13

2

PIN

09206-13020

$2.37

3

.GASKET,CRANKCASE

11481-28H00

$19.77

4

BOLT

01547-0655A

$2.43

5

BOLT

01547-0665A

$2.34

6

BOLT

01547-0675A

$3.67

7

BOLT

01547-0680A

$3.58

8

PLUG | OIL DRAIN

09103-08393

$2.50

9

GASKET (8.2X14X1)

09168-08016

$1.64

10

HOSE,BREATHER | K8/K9 This part replaces 11332-35G11.

11332-49H11

$25.25

10

HOSE,BREATHER | L0 This part replaces 11332-28H00.

11332-49H11

$25.25

11

CLIP

09401-13301

$2.95

12

BOLT (10X135)

09103-10403

$17.21

13

BOLT (10X125)

09103-10399

$7.67

14

NUT

09159-10115

$3.21

15

CLAMP (L:45)

09404-06429

$1.82
