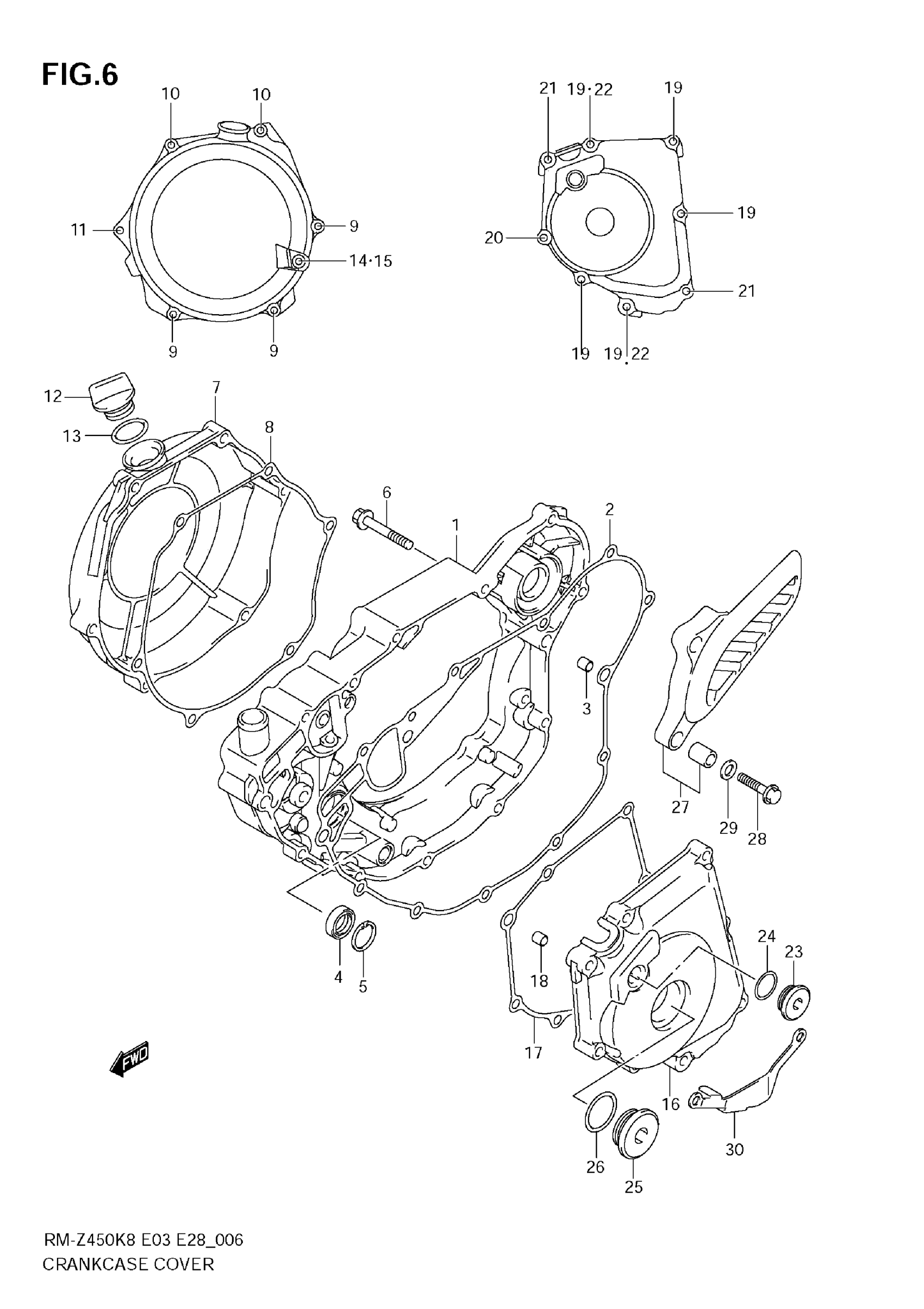

Suzuki RM-Z450K8 (2011) CRANKCASE COVER (RM-Z450 K8/K9/L0) Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11340-28H00.

11340-28H10

$247.48

2

.GASKET,CLUTCH COVER

11482-28H00

$24.03

3

PIN

04211-09149

$1.65

4

SEAL,OIL (12X22X6)

09282-12012

$17.98

5

CIRCLIP This part replaces 08331-4124A.

08331-41249

$2.26

6

BOLT

01547-0625A

$2.01

7

COVER, CLUTCH OUTER

11371-28H00

$237.42

8

.GASKET,CLUTCH COVER OUTER

11484-28H00

$15.88

9

BOLT

01547-0625A

$2.01

10

BOLT

01547-0665A

$2.32

11

BOLT

01547-0670A

$2.92

12

PLUG

09259-20008-XC0

$7.50

13

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

14

BOLT (6X10)

09139-06055

$1.49

15

GASKET (5.8X13X1.2)

09168-06004

$1.49

16

COVER,MAGNETO

11351-28H02

$305.45

17

.GASKET,MAGNETO COVER

11483-28H00

$12.91

18

PIN

04211-09149

$1.65

19

BOLT

01547-0625A

$2.01

20

BOLT

01547-0630A

$2.32

21

BOLT

01547-0635A

$2.30

22

GASKET (5.8X13X1.2)

09168-06023

$2.35

23

PLUG

09248-12007

$6.11

24

O RING (D:1.9,ID:9.8)

09280-10016

$3.37

25

PLUG

09259-26011

$11.03

26

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

27

COVER, ENGINE SPROCKET

11360-35G00

$28.07

28

BOLT (6X30)

09103-06297

$3.30

29

WASHER

08322-0106B

$2.26

30

GUARD, MAGNETO COVER | K8/K9

11352-28H00

Unavailable
