2011 Suzuki RM-Z450K8 Brake Pedal Diagram

← All diagrams

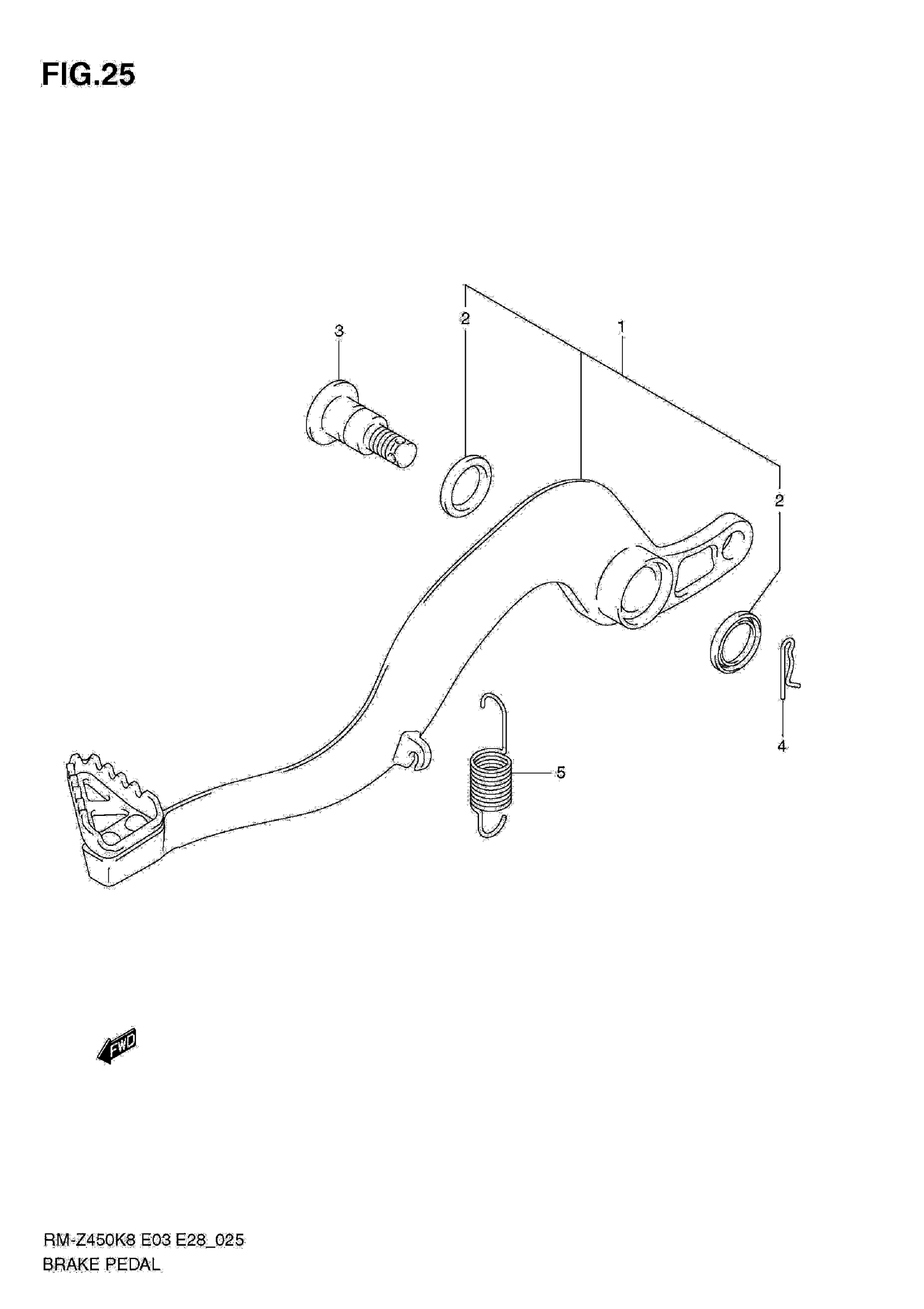

Find the part on the Brake Pedal diagram for your 2011 Suzuki RM-Z450K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki RM-Z450K8 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL ASSY,BRAKE

43100-28H00

1
Out of stock

2

SEAL, DUST (15X21X3)

09284-15006

2
Out of stock

3

SHAFT, BRAKE PEDAL

43142-28H00

1
Out of stock

4

COTTER PIN

09385-10005

1
Out of stock

5

SPRING

09443-13037

1
Out of stock
