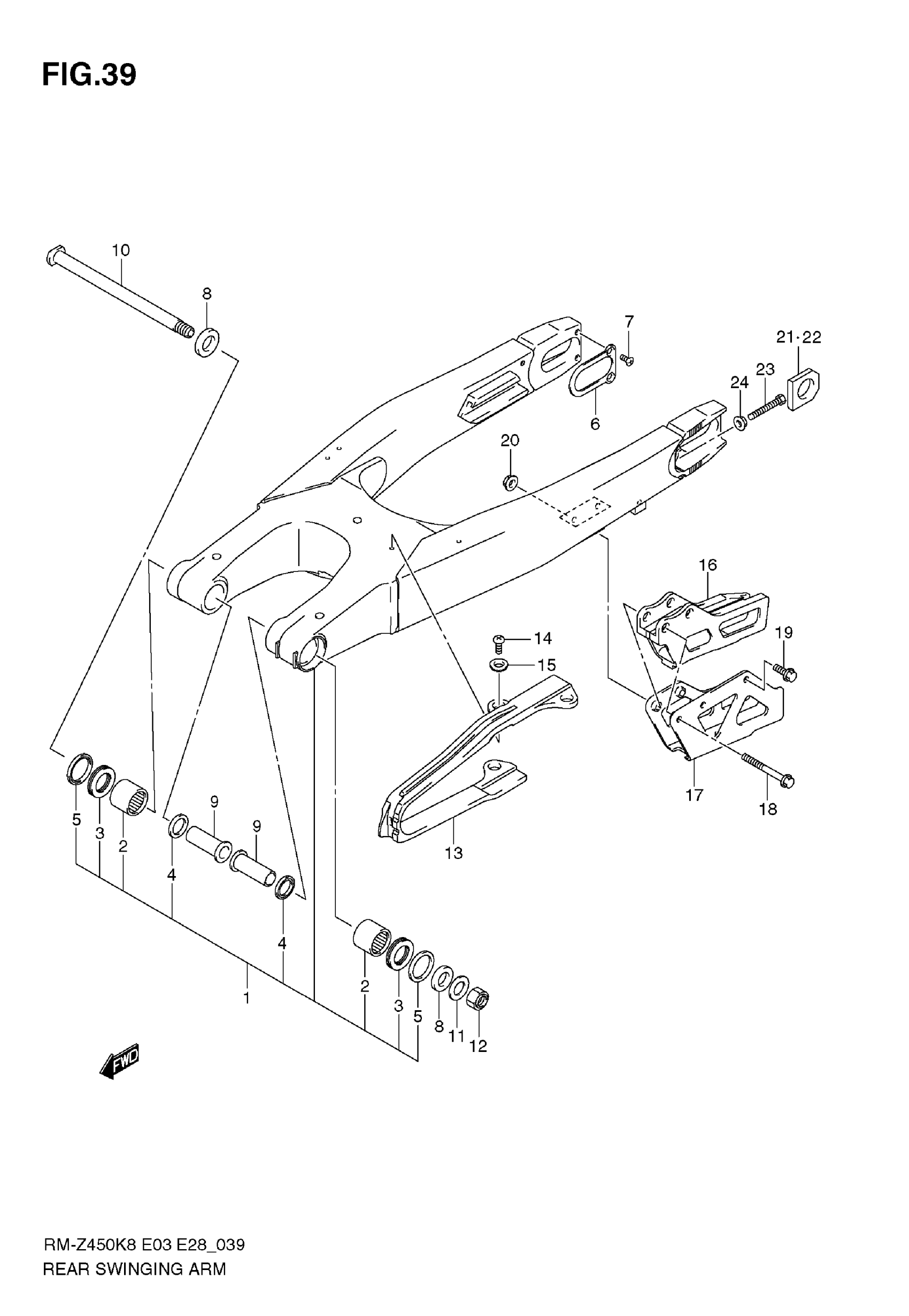

Suzuki RM-Z450 (2009) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 7

61000-28H00

Unavailable

2

BEARING, PIVOT (22X29X30)

09263-22017

$22.58

3

BEARING, OUTER (22X35X2)

09263-22064

$27.72

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

SEAL, OUTER (29.2X37X4)

61262-36E00

$6.93

6

PLATE, SWINGINGARM, REAR

61128-35G00

Unavailable

7

SCREW (4X10)

02122-0410B

$2.45

8

SPACER, PIVOT OUTER

61251-36E01

$13.16

9

SPACER, PIVOT INNER

61252-37F01

$44.15

10

SHAFT, PIVOT

61211-28H00

$87.70

11

WASHER

08322-0116B

$2.70

12

NUT

09159-16007

$12.61

13

BUFFER, CHAIN TOUCH DEFENSE

61273-37F10

$71.85

14

SCREW

02112-0508B

$1.86

15

WASHER

09169-05022

$3.55

16

GUIDE, CHAIN

61341-35G10

$57.60

17

PLATE, GUIDE OUTER

61342-37F00

$66.30

18

BOLT, UPPER

09103-06242

$2.76

19

BOLT, REAR

09103-06233

$2.11

20

NUT

08316-1006B

$2.50

21

WASHER, CHAIN ADJUSTER, R

61445-28H00

$48.38

22

WASHER, CHAIN ADJUSTER, L

61446-28H00

Unavailable

23

BOLT (8X50)

09100-08287

$3.10

24

NUT

09159-08034

$1.62
