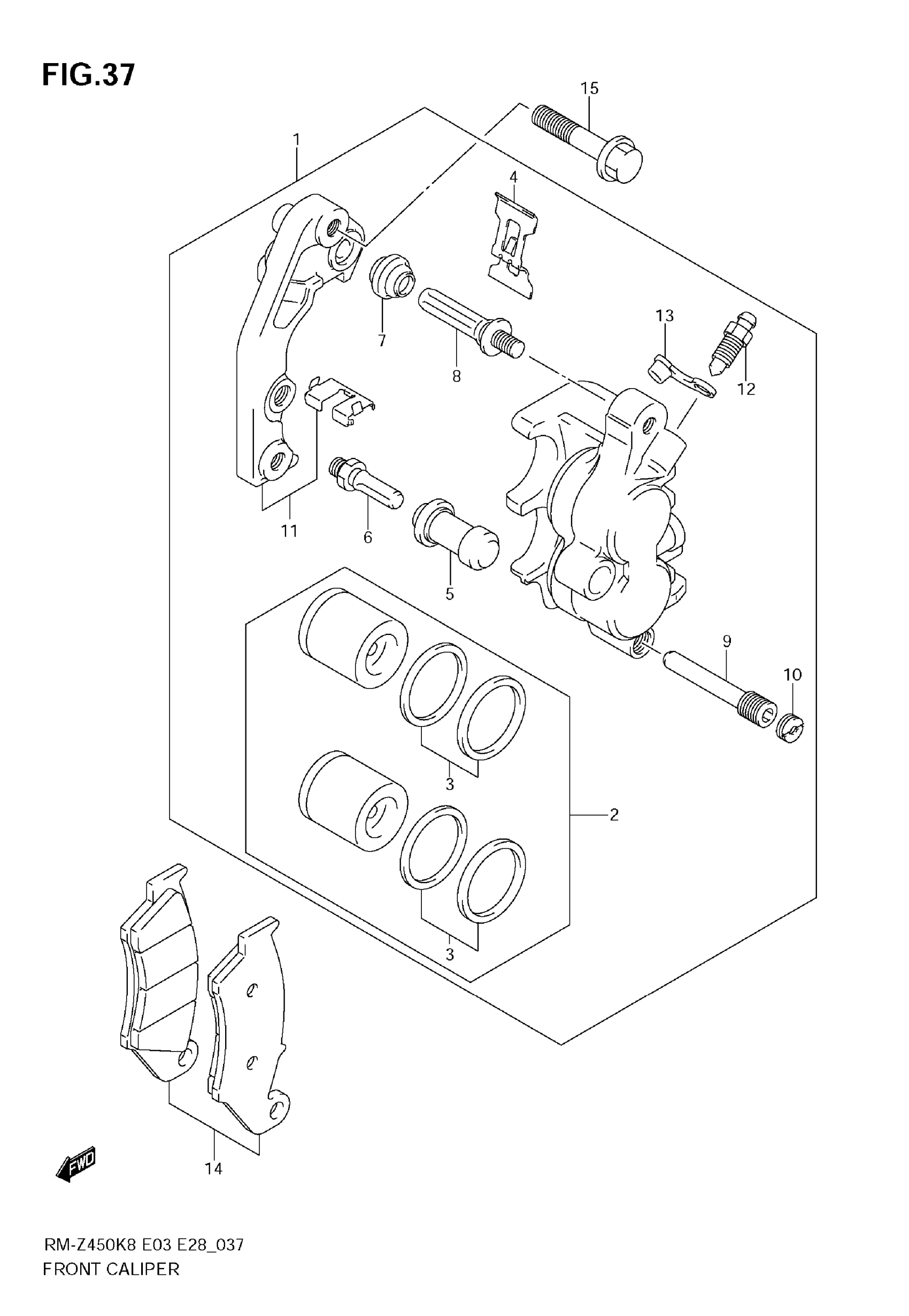

Suzuki RM-Z450 (2009) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT | Includes Item(s) 2 - 13 This part replaces 59300-37F01-999.

59300-37F04-999

$534.30

2

PISTON SET

59300-27840

$48.34

3

SEAL SET, PISTON

59300-13820

$18.77

4

SPRING

59315-13E00

$15.16

5

BOOT

59386-13A00

$7.95

6

PIN

59382-37F00

$12.35

7

BOOT

59303-14500

$5.52

8

PIN

59305-27C00

$23.48

9

PIN

59345-13E00

$14.34

10

PLUG

59146-21E10

$6.15

11

BRACKET

59350-13E00

$135.95

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

PAD SET

59301-36810

$48.97

15

BOLT (8X40)

09103-08403

$3.37
