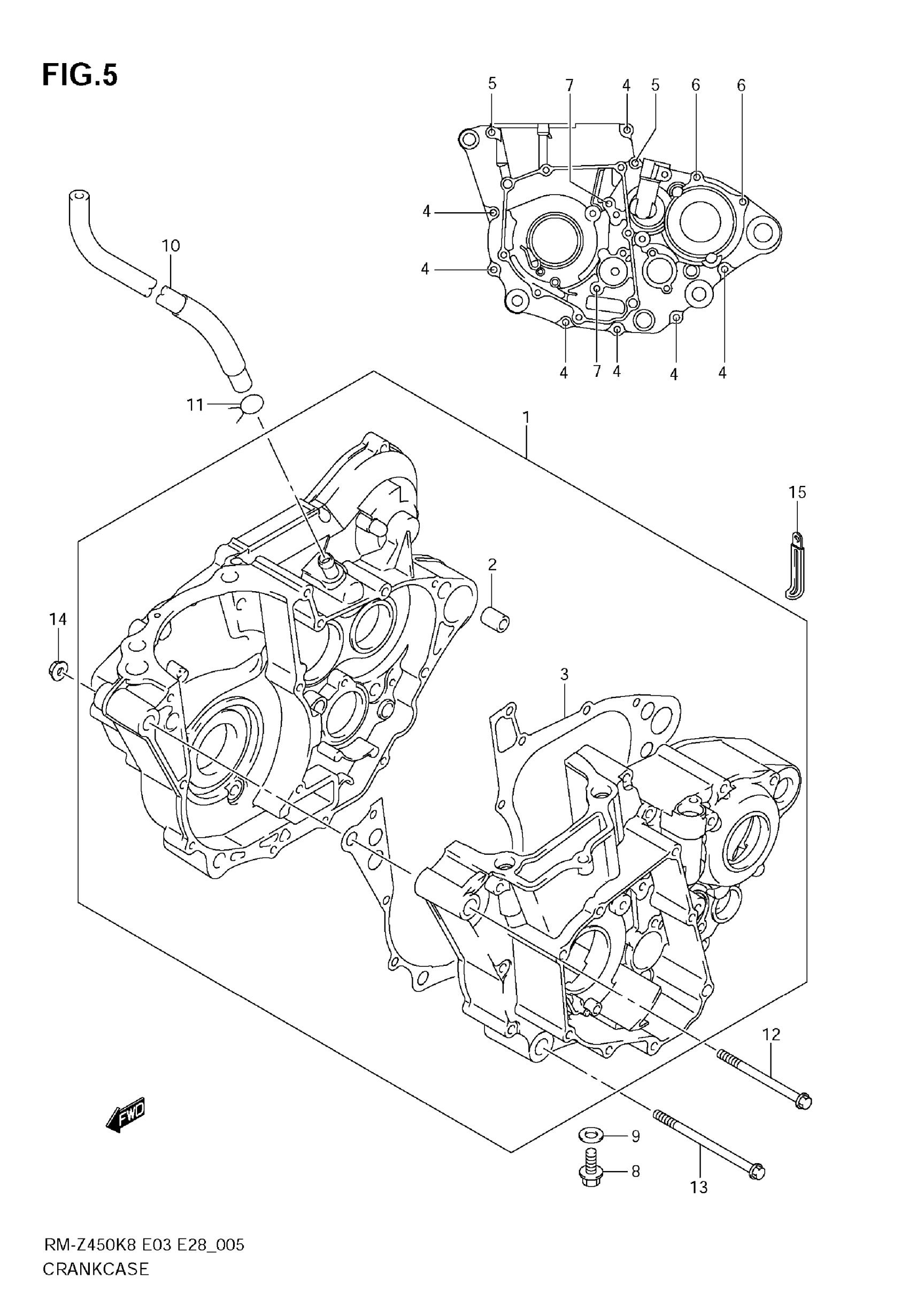

Suzuki RM-Z450 (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K8 This part replaces 11301-28841.

11301-28863

$1,098.32

1

CRANKCASE SET | MODEL K9; Includes Item(s) 2 - 7 This part replaces 11301-28860.

11301-28863

$1,098.32

2

PIN, CRANKCASE

09206-13020

$2.34

3

.GASKET,CRANKCASE

11481-28H00

$21.60

4

BOLT, CRANKCASE

01547-0655A

$2.42

5

BOLT

01547-0665A

$2.32

6

BOLT

01547-0675A

$3.28

7

BOLT, CRANKCASE

01547-0680A

$3.30

8

PLUG, OIL DRAIN

09103-08393

$2.50

9

GASKET (8.2X14X1)

09168-08016

$1.65

10

HOSE,BREATHER This part replaces 11332-35G10.

11332-49H11

$22.38

11

CLIP, BREATHER HOSE

09401-13301

$2.70

12

BOLT (10X135)

09103-10403

$15.83

13

BOLT (10X125)

09103-10399

$7.05

14

NUT

09159-10115

$3.55

15

CLAMP, HOSE

09404-06429

$1.83
