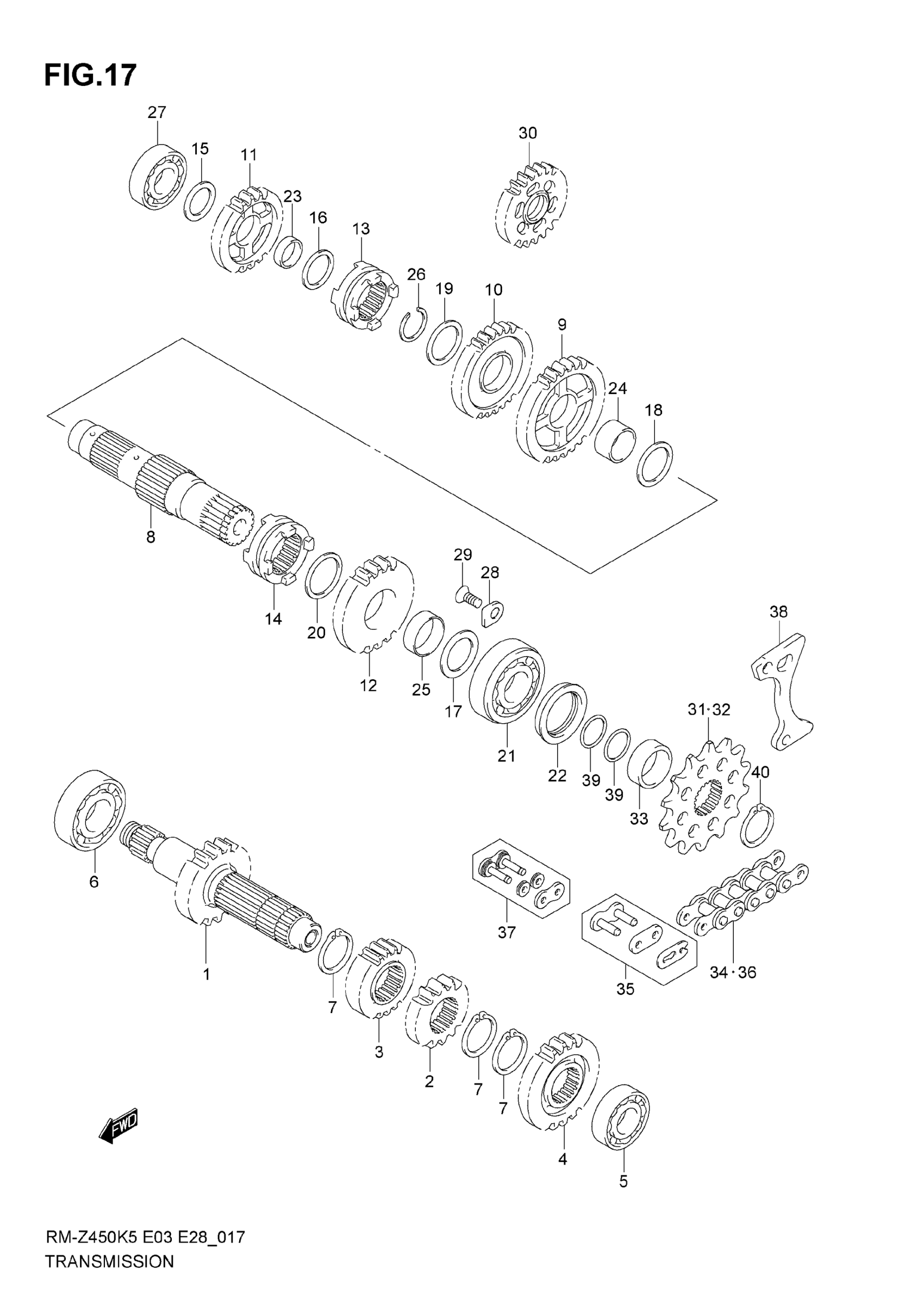

Suzuki RM-Z450 (2007) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:20) | MODEL K5

24120-35G00

Unavailable

1

SHAFT, COUNTER (NT:20) | MODEL K6

24120-35G10

Unavailable

1

SHAFT, COUNTER (NT:22) | MODEL K7

24120-35G20

$288.88

2

GEAR, 1ST DRIVE, NT:15

24211-35G00

Unavailable

3

GEAR, 2ND DRIVE, NT:18

24221-35G00

Unavailable

4

GEAR, 4TH DRIVE, NT:22 | MODEL K5/K6

24241-35G00

Unavailable

4

GEAR, 4TH DRIVE, NT:24 | MODEL K7

24241-35G10

Unavailable

5

BEARING, CNTR SHAFT, L

08123-60040

$35.25

6

BEARING (25X52X15)

08143-62057

$24.40

7

CIRCLIP, COUNTER SHAFT

08331-31256

$1.49

8

SHAFT, DRIVE

24131-35G00

Unavailable

9

GEAR, 1ST DRIVEN, NT:30

24311-35G00

Unavailable

10

GEAR, 2ND DRIVEN, NT:29

24321-35G00

Unavailable

11

GEAR, 3RD DRIVEN, NT:27 | MODEL K5/K6

24331-35G00

Unavailable

11

GEAR, 3RD DRIVEN, NT:30 | MODEL K7

24331-35G10

$123.73

12

GEAR, 4TH DRIVEN, NT:25 | MODEL K5/K6

24341-35G00

Unavailable

12

GEAR, 4TH DRIVEN, NT:28 | MODEL K7

24341-35G10

$123.73

13

DOG, SLIDING NO.1

24411-35G00

$97.95

14

DOG, SLIDING NO.2

24412-35G00

$97.95

15

WASHER, 3RD DRIVEN GEAR, R | 20X28X1.0

09181-20167

$2.62

16

WASHER, 3RD DRIVEN GEAR, L | 20X28X0.5

09181-22130

$3.40

17

WASHER, 4TH DRIVEN GEAR, L | 24X34X1.0

09181-24005

$3.55

18

WASHER, 1ST DRIVEN GEAR, L | 25X32X1.0

09181-25139

$3.32

19

WASHER, 2ND DRIVEN GEAR, R | 25X32X1.0

09181-25139

$3.32

20

WASHER, 4TH DRIVEN GEAR, R | 27X33X1.0

09181-27015

$4.60

21

BEARING, DRIVE SHAFT, L | 24X56X14

09262-24001

$90.20

22

SEAL, DRIVE SHAFT OIL | 31X40X8.5

09289-31002

$16.15

23

BUSH, 3RD DRIVEN GEAR

09300-22019

Unavailable

24

BUSH, 1ST & 2ND DRIVEN GEAR

09300-25032

Unavailable

25

BUSH, 4TH DRIVEN GEAR

09300-27004

Unavailable

26

CIRCLIP, 2ND DRIVEN GEAR

09380-25010

$2.91

27

BEARING, DRIVE SHAFT, R

08123-60040

$35.25

28

RETAINER

24741-20A00

$2.81

29

SCREW, DRIVE SHAFT (6X12)

09126-06011

$2.03

30

GEAR, KICK STARTER IDLE

26260-35G00

$162.04

31

SPROCKET, ENGINE (NT:14) | MODEL K5 This part replaces 27511-35G00.

27511-35G20

$58.13

31

SPROCKET, ENGINE, NT:14 | MODEL K6/K7

27511-35G20

$58.13

32

SPROCKET, ENGINE (NT:13) | OPT This part replaces 27511-35G10.

27511-35G30

$58.13

33

SPACER,ENGINE SPROCKET | MODEL K5 This part replaces 27531-35G00.

27531-35G01

$28.58

33

SPACER,ENGINE SPROCKET | MODEL K6/K7

27531-35G01

$28.58

34

CHAIN ASSY,DRIVE | MODEL K5 This part replaces 27600-43D01-114.

27600-46K00-114

$140.88

35

.JOINT SET,CHAIN | OPT,MODEL K5 This part replaces 27620-43D01.

27620-46K00

$9.57

36

CHAIN ASSY, DRIVE | MODEL K6/K7 This part replaces 27600-35G00-114.

27600-35G01-114

$351.70

37

JOINT SET, CHAIN | OPT,MODEL K6/K7 This part replaces 27620-35G00.

27620-35G01

$21.37

38

PLATE, FRONT CHAIN GUIDE This part replaces 27641-35G00.

27641-35G01

$10.55

39

O RING, SPROCKET SPACER | D:1.9,ID:21.8

09280-21010

$2.27

40

CIRCLIP, ENGINE SPROCKET This part replaces 08331-31246.

08331-3124A

$2.03
