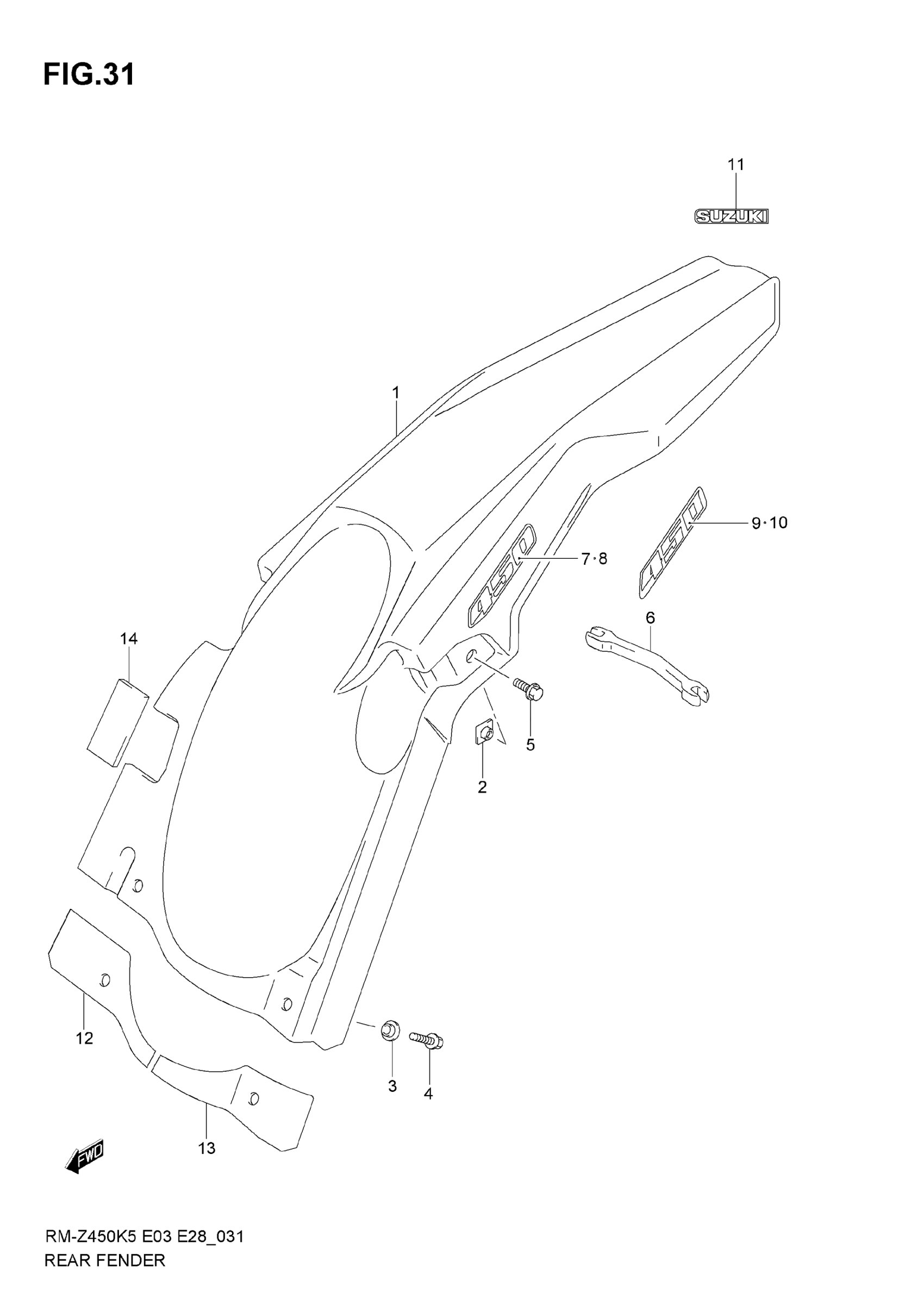

Suzuki RM-Z450 (2007) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW) | MODEL K5 This part replaces 63111-35G00-YU1.

63111-35G10-YU1

$65.60

1

FENDER, REAR (YELLOW) | MODEL K6/K7

63111-35G10-YU1

$65.60

2

NUT

09152-06024

$3.37

3

WASHER This part replaces 69232-37F00.

69232-37F01

$7.72

4

BOLT This part replaces 09103-06235.

01547-06207

$2.01

5

BOLT, REAR

09103-06234

$2.35

6

SPANNER (6.4X6.8)

09813-00134

$18.48

7

TAPE, RH | MODEL K5

68175-35G00-GY8

Unavailable

7

TAPE, RH | MODEL K6

68175-35G00-CFL

Unavailable

8

TAPE, LH | MODEL K5

68176-35G00-GY8

Unavailable

8

TAPE, LH | MODEL K6

68176-35G00-CFL

Unavailable

9

TAPE, RH | RM-Z450K7

68175-35G10-GY8

Unavailable

10

TAPE, LH | RM-Z450K7

68176-35G10-GY8

Unavailable

11

EMBLEM, "SUZUKI" | MODEL K5

68721-35G00-GY8

Unavailable

11

EMBLEM, "SUZUKI" | MODEL K6

68721-35G00-CFL

Unavailable

11

EMBLEM, "SUZUKI" | RM-Z450K7

68721-35G00-GY8

Unavailable

12

CUSHION, RH

63114-35G00

Unavailable

13

CUSHION, LH

63114-35G10

Unavailable

14

CUSHION, FRONT

63115-35G00

Unavailable
