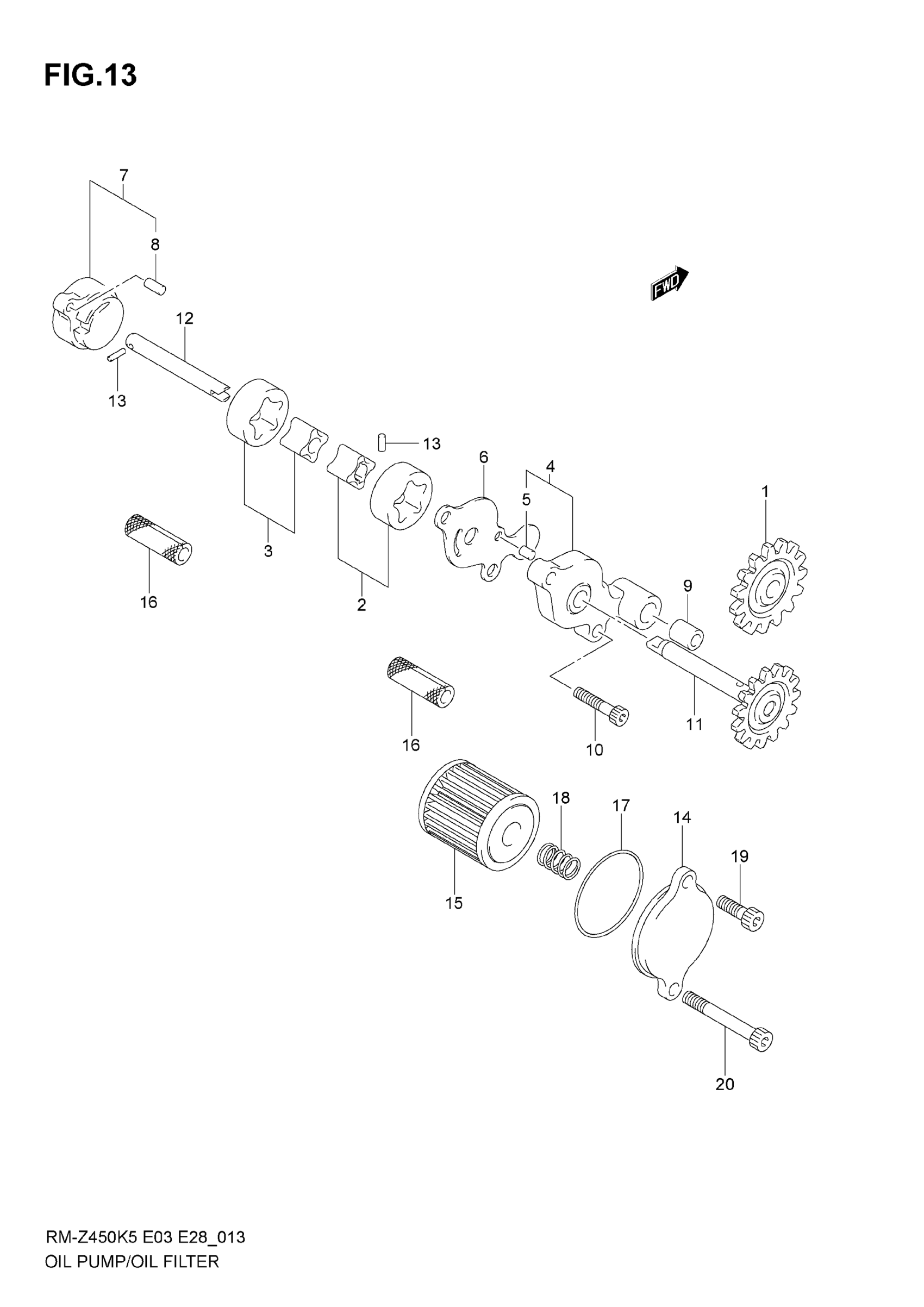

Suzuki RM-Z450 (2007) OIL PUMP/OIL FILTER Diagram

#

Description
Price

1

GEAR, OIL PUMP IDLE

16321-35G00

$66.92

2

ROTOR SET,OIL PUMP NO.1

16410-35G00

$37.45

3

ROTOR SET, OIL PUMP NO.2 | MODEL K5/K6

16420-35G00

$38.97

3

ROTOR SET,OIL PUMP | MODEL K7

16410-45G00

$40.84

4

COVER, OIL PUMP NO.1 | Includes Item(s) 5

16430-35G00

$44.07

5

PIN (4X13.8)

04221-04089

$1.49

6

PLATE,OIL PUMP NO.1

16432-35G10

$7.73

7

COVER, OIL PUMP NO.2 | Includes Item(s) 8

16450-35G00

$29.33

8

PIN (4X13.8)

04221-04089

$1.49

9

PIN

04211-09149

$1.65

10

BOLT This part replaces 07130-05203.

07130-0520B

$2.53

11

SHAFT,OIL PUMP DRIVEN GEAR (N | MODEL K5 This part replaces 16440-35G00.

16440-35G10

$76.30

11

SHAFT,OIL PUMP DRIVEN GEAR (N | MODEL K6/K7

16440-35G10

$76.30

12

SHAFT, OIL PUMP NO.2 | MODEL K5

16442-35G00

Unavailable

12

SHAFT, OIL PUMP NO.2 | MODEL K6/K7

16442-35G10

Unavailable

13

PIN, D:2.5, L:11.8

09261-02008

$1.65

14

CAP, ENG OIL FILTER OUTER | MODEL K5/K6

16315-35G00

$22.52

14

CAP, ENG OIL FILTER OUTER | MODEL K7

16315-35G20

Unavailable

15

FILTER, ENG OIL

16510-35G00

$10.13

16

STRAINER, OIL

16520-35G00

$18.88

17

O-RING (D:2,ID:38.5) This part replaces 09280-39001.

09280-39002

$3.16

18

SPRING, OIL FILTER CAP

09440-10038

$3.10

19

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

20

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38
