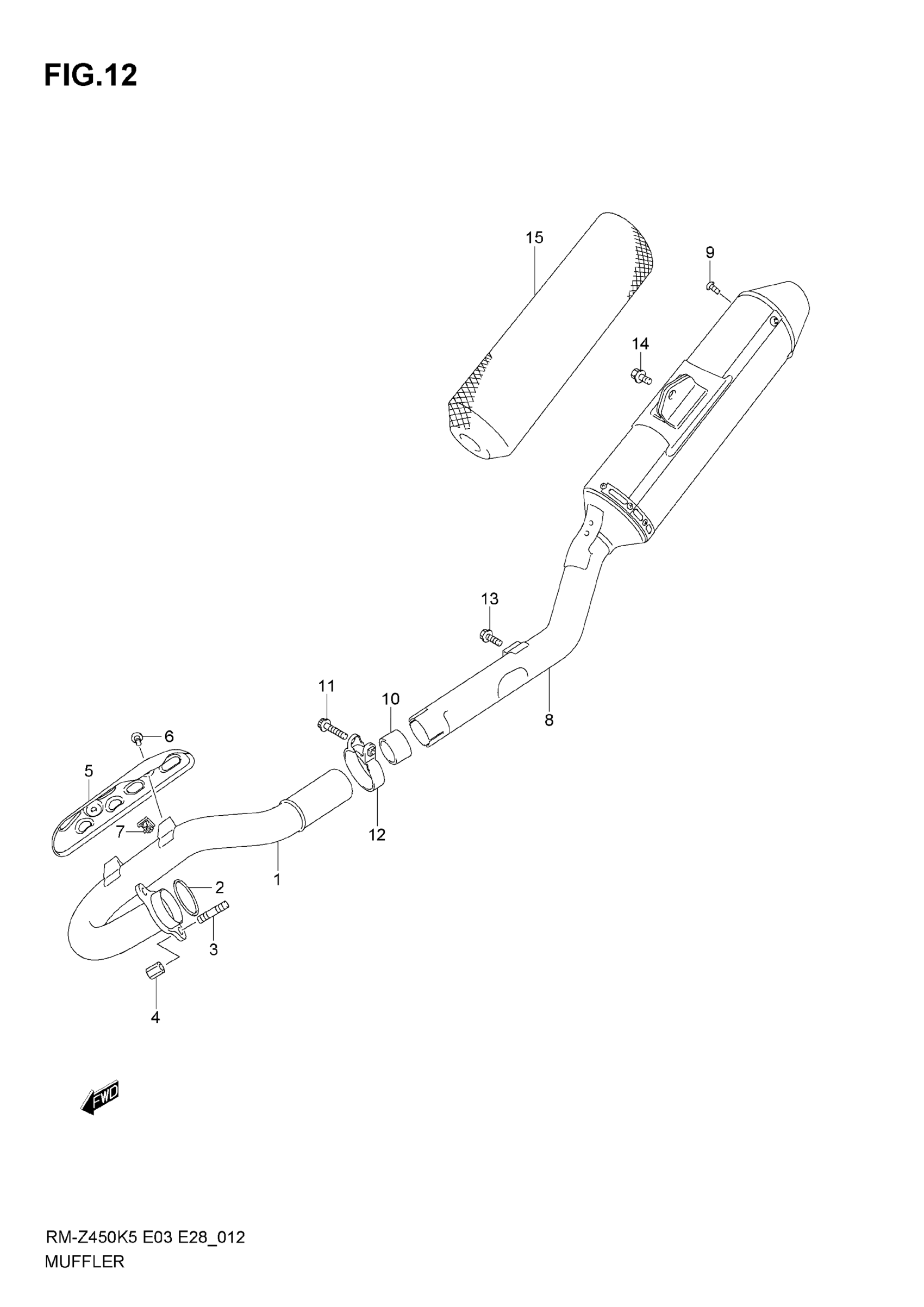

Suzuki RM-Z450 (2007) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | MODEL K5 This part replaces 14150-35G10.

14150-35G20

Unavailable

1

PIPE, EXHAUST | MODEL K6

14150-35G20

Unavailable

1

PIPE, EXHAUST | MODEL K7

14150-35G30

Unavailable

2

.GASKET,EXHAUST PIPE

14181-35G00

$9.31

3

STUD BOLT | MODEL K5/K6 This part replaces 01421-08163.

01421-0816A

$1.78

3

BOLT, STUD | MODEL K7

01421-0816B

$2.19

4

NUT

09159-08112

$5.83

5

COVER, EXHAUST PIPE | MODEL K5 This part replaces 14186-35G10.

14186-35G20

$52.18

5

COVER, EXHAUST PIPE | MODEL K6/K7

14186-35G20

$52.18

6

SCREW (6X10)

09139-06122

$3.04

7

NUT | MODEL K5

09148-06015

$3.04

8

BODY, MUFFLER | MODEL K5 This part replaces 14310-35G10.

14310-35G30

Unavailable

8

BODY, MUFFLER | MODEL K6 E3

14310-35G30

Unavailable

8

BODY, MUFFLER | MODEL K6 E28

14310-35G40

Unavailable

8

BODY, MUFFLER | MODEL K7; Includes Item(s) 9

14310-35G60

Unavailable

9

SCREW

09139-05064

$2.57

10

CONNECTOR

14771-29F00

$30.43

11

BOLT This part replaces 07120-08353.

07120-0835B

$4.58

12

CLAMP, CONNECTOR

14469-29F00

$23.40

13

BOLT (8X16) | MODEL K5/K6

09103-08334

$4.82

13

BOLT (10X20) | MODEL K7

09103-10413

Unavailable

14

BOLT | MODEL K5/K6 This part replaces 01560-08203.

01560-0820A

$3.15

14

BOLT (8X20) | MODEL K7

09103-08254

$3.03

15

SILENCER, MUFFLER | OPT MODEL K5/K6

14351-35G00

Unavailable

15

SILENCER, MUFFLER | OPT MODEL K7

14351-35G60

Unavailable
