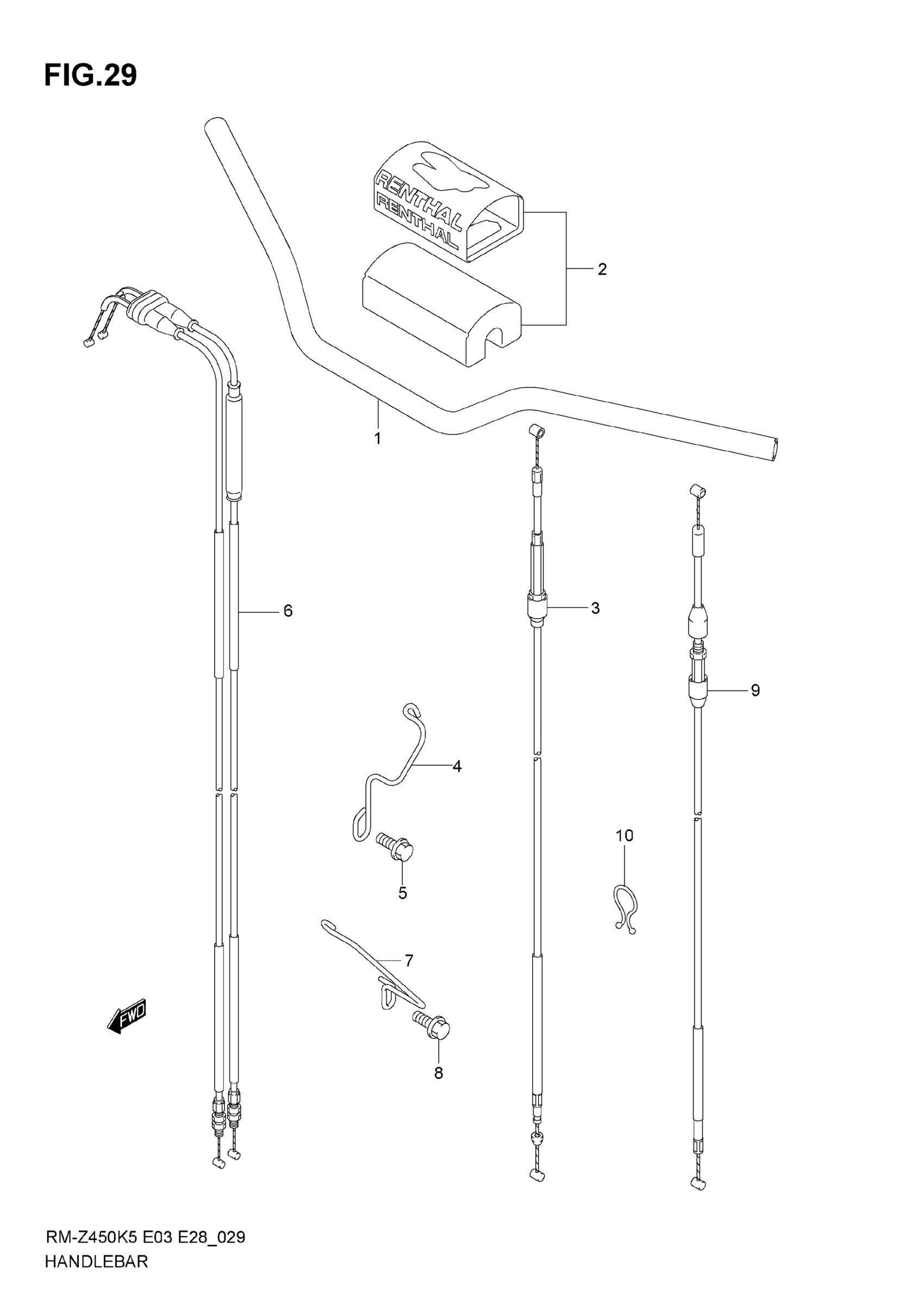

Suzuki RM-Z450 (2007) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-35G00

Unavailable

2

PAD, CROSS BAR | MODEL K5

56170-35G00

Unavailable

2

PAD, CROSS BAR | MODEL K6/K7

56170-35G10

Unavailable

3

CABLE ASSY, CLUTCH | MODEL K5

58210-35G00

Unavailable

3

CABLE ASSY, CLUTCH | MODEL K6

58210-35G10

Unavailable

3

CABLE ASSY, CLUTCH | MODEL K7

58210-35G20

$77.92

4

GUIDE, CLUTCH CABLE | MODEL K6/K7

58211-35G00

Unavailable

5

BOLT | MODEL K6/K7

09116-06200

$3.16

6

CABLE SET, THROTTLE | MODEL K5/K6

58301-35G00

$122.23

6

CABLE SET, THROTTLE | MODEL K7

58301-10H00

$122.38

7

GUIDE, CABLE | MODEL K5

58311-35G00

Unavailable

7

GUIDE, CABLE | MODEL K6/K7

58311-35G10

Unavailable

8

BOLT

09116-06200

$3.16

9

CABLE ASSY, HOT STARTER | MODEL K6/K7

58900-35G10

$40.35

10

CLIP | MODEL K6

09408-00179

Unavailable
