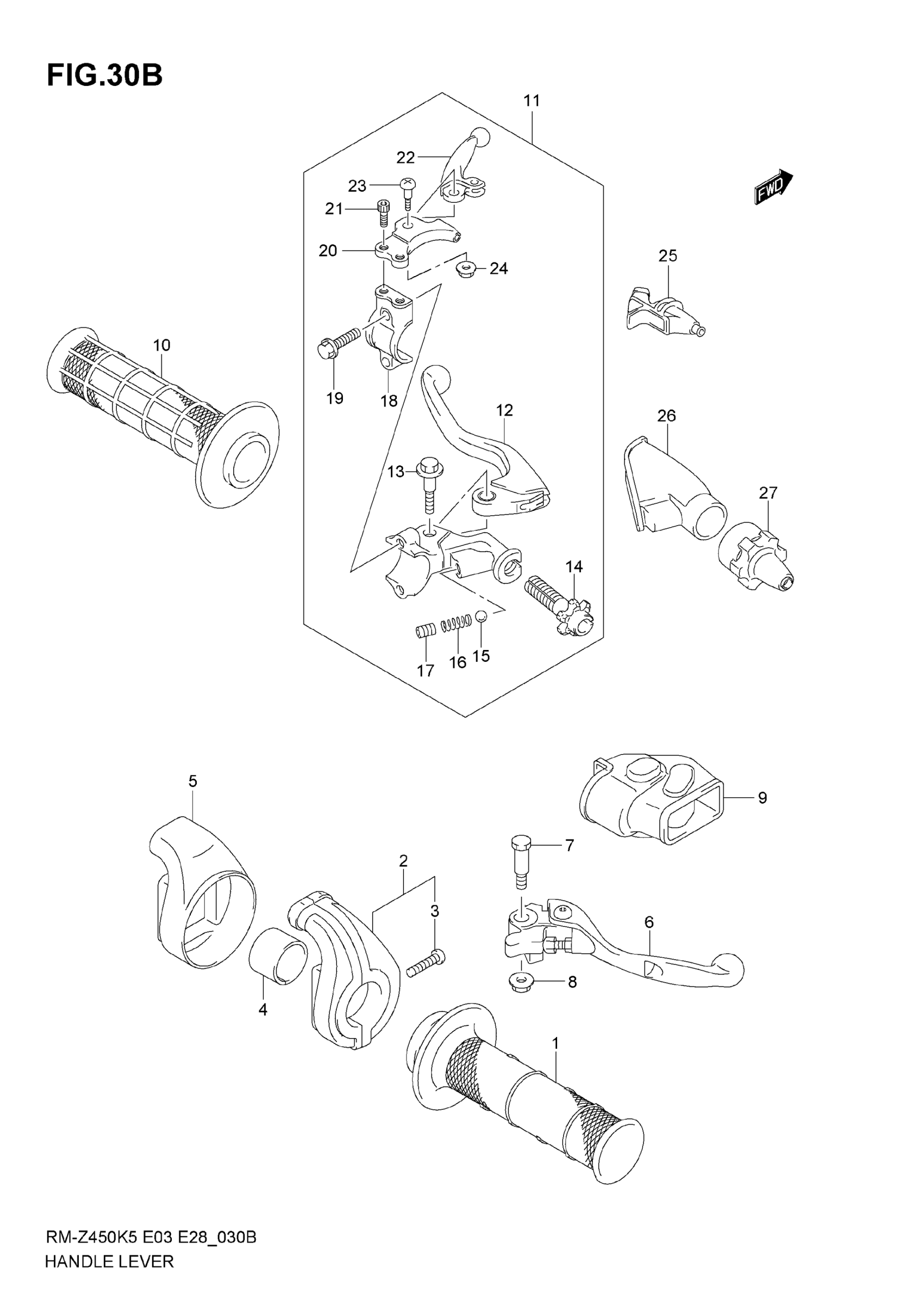

Suzuki RM-Z450 (2007) HANDLE LEVER (MODEL K7) Diagram

GRIP,THROTTLE This part replaces 57110-10H00.

57110-10H11

$55.98

CASE ASSY,THROTTLE | Includes Item(s) 3 This part replaces 57100-10H00.

57100-10H01

$110.77

SCREW

57141-35G00

$7.73

COLLAR

57151-35G00

$8.92

COVER, THROTTLE CASE

57129-35G00

$12.60

LEVER, BRAKE

57310-37F00

$36.54

BOLT, BRAKE LEVER

57431-14500

$6.28

NUT This part replaces 08316-10063.

08316-1006B

$2.50

COVER, BRAKE LEVER

57343-35G00

$19.03

GRIP,L This part replaces 57211-36E01.

57211-28H00

$20.40

LEVER ASSY, CLUTCH | Includes Item(s) 12 - 24

57500-35G20

Unavailable

LEVER, CLUTCH

57621-35G10

$22.30

BOLT

57431-35G00

$35.52

ADJUSTER, CABLE

57441-37F00

$137.02

BALL

06111-06003

$1.49

SPRING

09440-04003

$1.54

BOLT

09134-06009

$2.38

HOLDER, CLUTCH LEVER

57512-35G00

$55.78

.BOLT, BRACKET

57513-29F10

$6.23

HOLDER, HOT STARTER LEVER

57514-35G00

Unavailable

BOLT, HOLDER

09139-05083

$3.15

LEVER, HOT STARTER

57515-35G00

$25.52

BOLT, LEVER

57517-35G00

$9.07

NUT

08310-00057

$1.84

COVER,HOT START This part replaces 57516-35G00.

57516-35G01

$7.87

COVER,CLUTCH LE This part replaces 57341-37F00.

57341-37F01

$18.80

COVER,CLUTCH ADJUSTER This part replaces 57342-37F00.

57342-37F01

$7.65
