Description

Price

1

GASKET SET | OPT MODEL K5 This part replaces 11402-35812.

11402-35814

$205.08

1

GASKET SET | OPT MODEL K6

11402-35814

$205.08

1

GASKET SET | OPT MODEL K7; Includes Item(s) 2 - 11

11402-35830

$204.20

2

GASKET, CYLINDER HEAD | MODEL K5/K6

11141-35G01

$48.78

2

GASKET, CYLINDER HEAD | MODEL K7

11141-35G10

$47.40

3

GASKET, CYL HEAD COVER

11173-35G00

$34.73

4

GASKET, CYLINDER

11241-35G01

$18.13

5

GASKET, CRANKCASE | MODEL K5 This part replaces 11481-35G10.

11481-35G11

$26.38

5

GASKET, CRANKCASE | MODEL K6/K7

11481-35G11

$26.38

6

GASKET, CLUTCH COVER

11482-35G10

$25.07

7

GASKET, MAGNETO COVER

11483-35G10

$13.63

8

GASKET, CLUTCH COVER OUTER

11484-35G10

$19.38

9

.GASKET, TENSIONER ADJUSTER | MODEL K5/K6

12837-32410

$2.74

9

.GASKET,TENSIONER ADJUSTER | MODEL K7

12837-24A10

$3.25

10

.GASKET,EXHAUST PIPE

14181-35G00

$9.31

11

O RING, WATER PUMP CASE

17431-35G10

$28.21

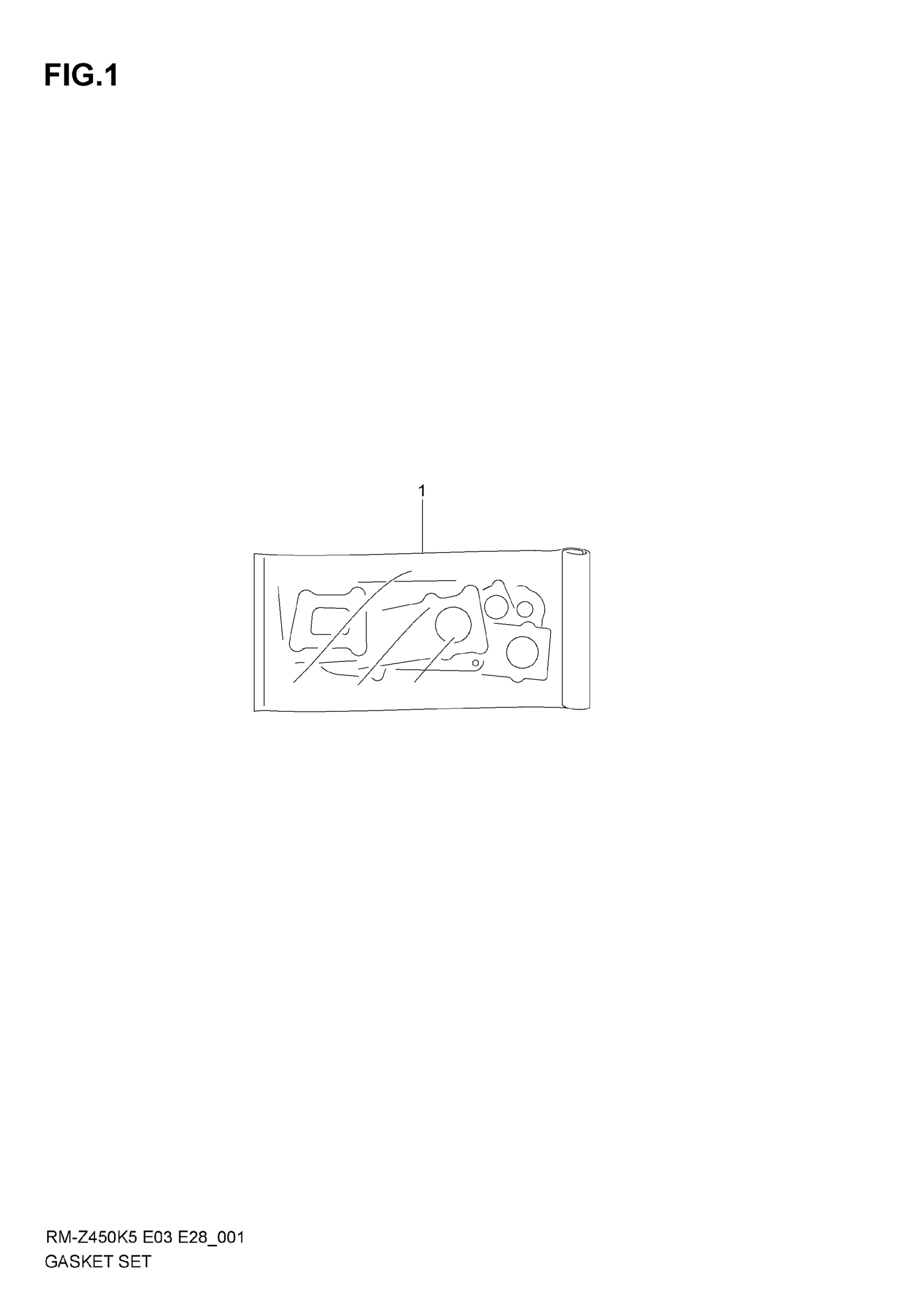

Suzuki RM-Z450 (2007) GASKET SET Diagram
