2007 Suzuki RM-Z450 Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 2007 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

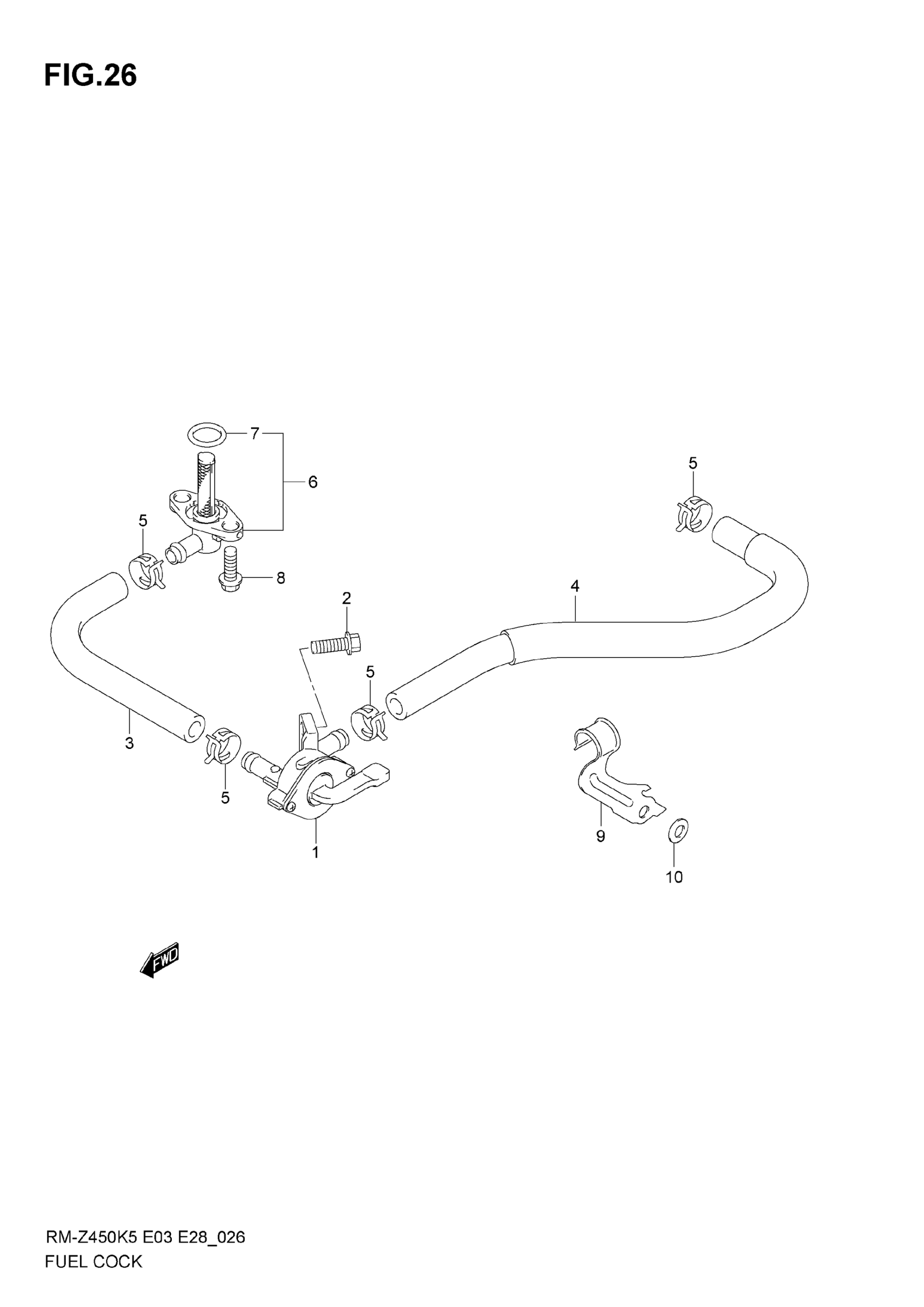

2007 Suzuki RM-Z450 Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY, FUEL

44300-35G00

1

$105.98

In stock

2

BOLT

09103-06234

2

$2.50

In stock

5

CLIP

09401-11415

4

$2.36

In stock

6

JOINT, FUEL HOSE | Includes Item(s) 7

44400-35G00

1
Out of stock

7

O RING

44413-35G00

1
Out of stock

8

BOLT

09103-06234

1

$2.50

In stock

9

CLAMP, FUEL HOSE

44462-35G00

1
Out of stock

10

WASHER

09164-10008

1
Out of stock
← Carburetor Fuel Tank →
