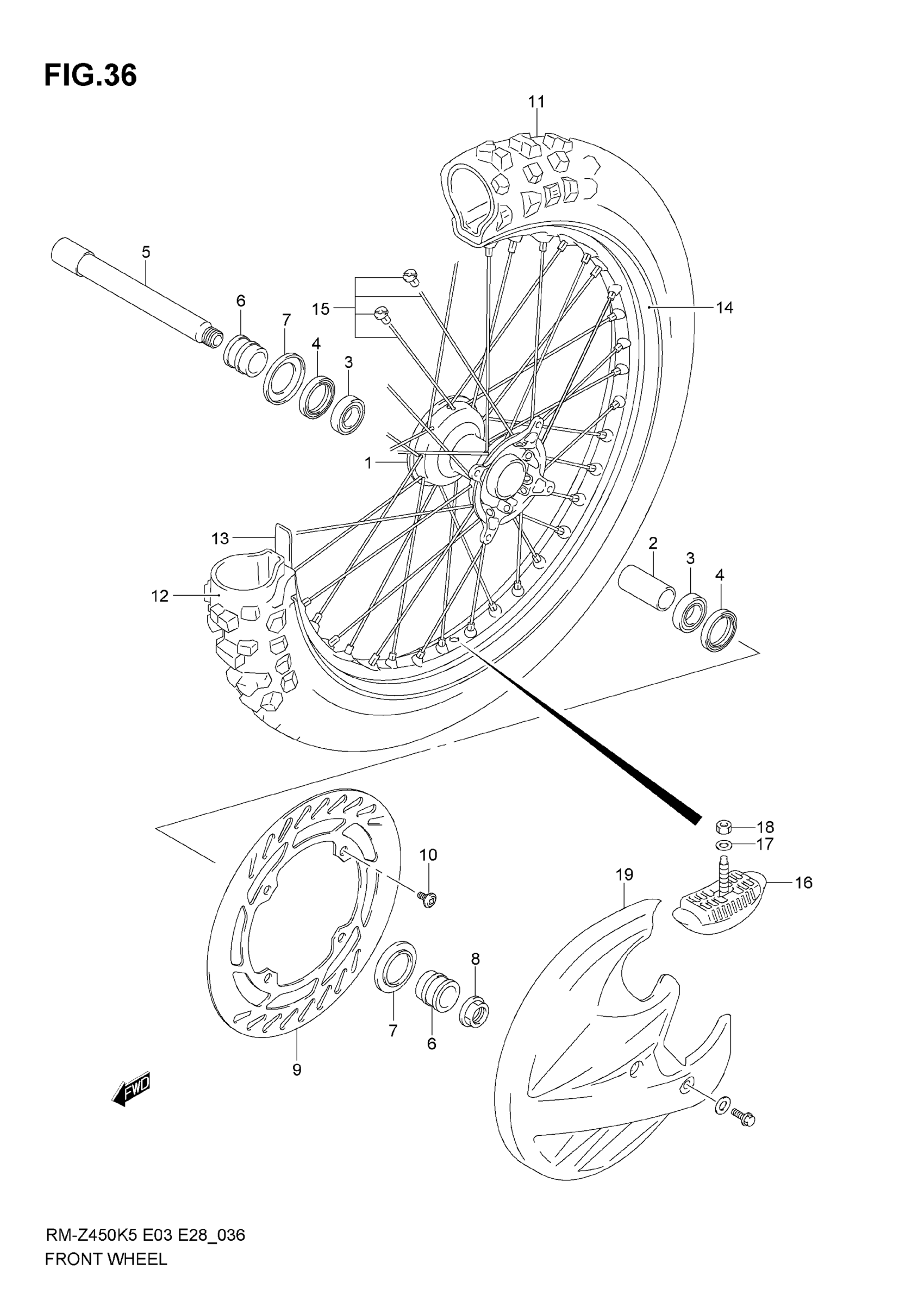

Suzuki RM-Z450 (2007) FRONT WHEEL Diagram

#

Description
Price

1

.HUB,FR This part replaces 54111-35G00.

54111-35G01

$298.30

2

.SPACER,FR HUB BEARING (20.5X

54731-35G00

$25.52

3

.BEARING (22X39X9) This part replaces 09262-22034.

09262-22048

$46.03

4

.SEAL,OIL (30X40X7)

09283-30073

$17.28

5

AXLE,FR

54711-35G00

$115.85

6

SPACER,FR AXLE (L:41)

54741-35G00

$31.07

7

COVER,FR AXLE SPACER

54742-35G00

$8.98

8

NUT

09159-18016

$12.48

9

DISC, FRONT BRAKE | MODEL K5/K6

59221-35G00

Unavailable

9

DISC, FRONT BRAKE | MODEL K7

59221-35G10

$227.45

10

SCREW

09139-06142

$3.97

11

TIRE, FRONT (90/100-21) (BRIDGESTONE) | E3

55110-35G10

Unavailable

11

TIRE, FRONT (90/100-21) (BRIDGESTONE) | E28

55110-35G00

Unavailable

12

TUBE ASSY, WHEEL INNER

55200-35G00

Unavailable

13

PROTECTOR,WHL INR TUBE This part replaces 55261-35G00.

55261-35G01

$6.88

14

RIM, FRONT WHEEL (1.60X21) | MODEL K5/K6

55311-35G00

Unavailable

14

RIM, FRONT WHEEL (1.60X21) | RM-Z450 K7

55311-10H00

Unavailable

14

RIM, FRONT WHEEL (1.60X21) | RM-Z450Z K7

55311-35G20

Unavailable

15

SPOKE SET, FRONT WHEEL | MODEL K5/K6

55320-35G00

Unavailable

15

SPOKE SET, FRONT WHEEL | MODEL K7

55320-35G10

Unavailable

16

STOPPER, BEAD

65270-14300

$52.73

17

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

18

NUT This part replaces 08310-00083.

08310-0008A

$1.84

19

COVER, FRONT BRAKE DISC | OPT

59231-36E20-YU1

$68.80
