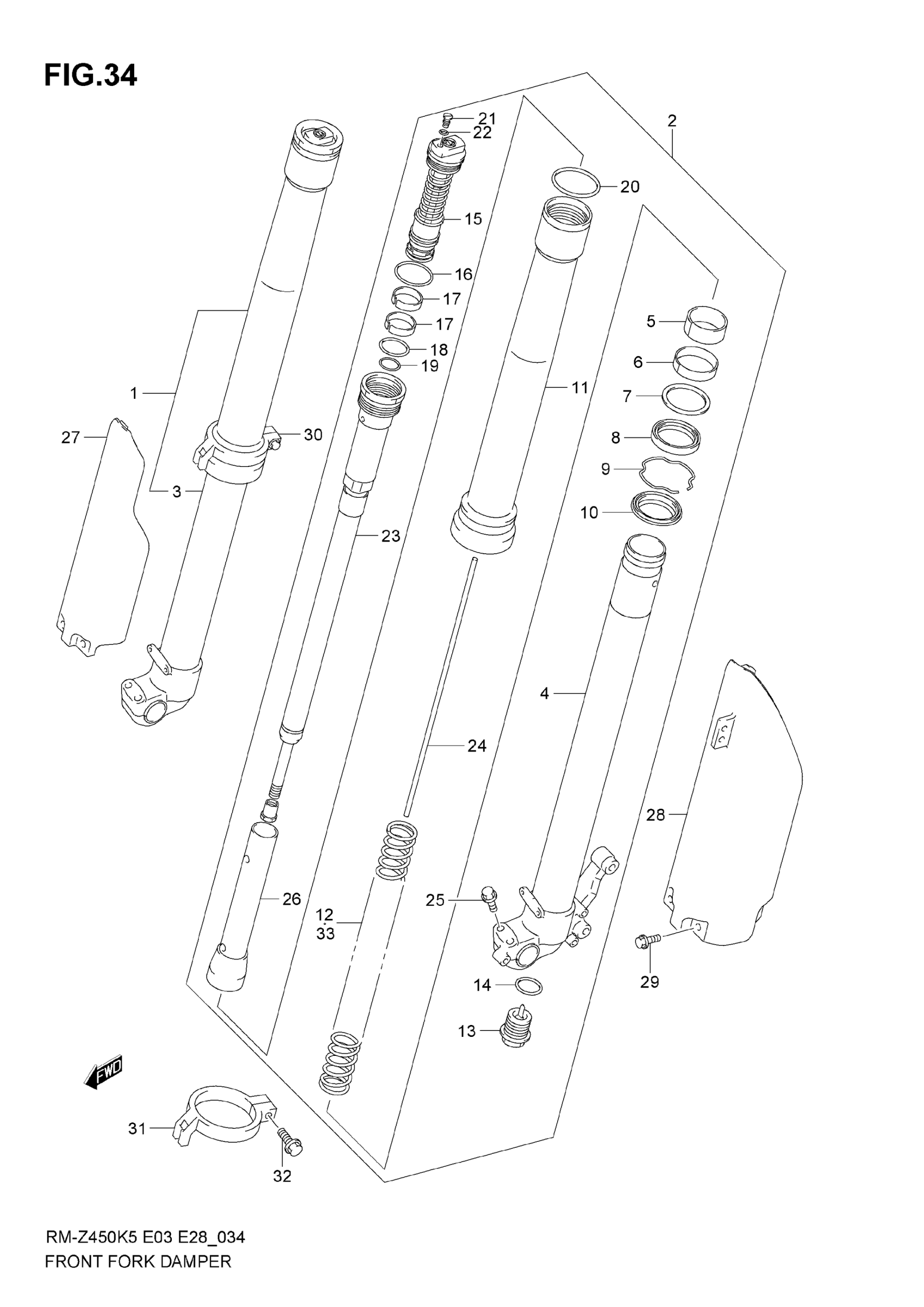

Suzuki RM-Z450 (2007) FRONT DAMPER (MODEL K5) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-35G00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 26

51104-35G00

Unavailable

3

TUBE, INNER RH

51110-35G00

Unavailable

4

TUBE, INNER LH

51120-35G00

Unavailable

5

BUSH, GUIDE

51121-36F00

$27.62

6

BUSH, GUIDE

51167-36F00

$23.85

7

SPACER, SEAL

51158-36F00

$9.37

8

SEAL, OIL

51153-37F80

$29.48

9

RING, OIL SEAL STOPPER

51156-27C40

$5.19

10

SEAL, DUST

51173-37F80

$26.58

11

TUBE, OUTER

51130-37F70

Unavailable

12

SPRING, FRONT (K=0.47)

51171-35G00

Unavailable

13

BOLT, CENTER

51170-37F80

$223.32

14

O RING

51177-36E20

$4.10

15

BOLT, FORK

51351-35G00

Unavailable

16

O RING

51117-37F80

$6.93

17

BUSH, FORK BOLT SLIDE

51123-28E30

$15.22

18

O RING

51174-36E40

$4.25

19

O RING

51175-37F80

$5.83

20

O RING

51117-36E60

$7.07

21

..BOLT,PLUG

51357-36F20

$14.37

22

...O-RING

51358-28E30

$4.28

23

ROD, DAMPER

51190-35G00

Unavailable

24

ROD, PUSH

51191-36F40

$23.10

25

BOLT

51328-37F80

$7.25

26

COLLAR, SPRING

51198-37F80

$76.20

27

PROTECTOR, RH

51501-37F61

$136.13

28

PROTECTOR, LH

51511-37F61

$136.13

29

BOLT

09103-06256

$2.28

30

GUIDE, PROTECTOR RH

51220-36E61

$58.92

31

GUIDE, PROTECTOR LH

51210-36E61

$58.92

32

BOLT

01547-06257

$2.03

33

SPRING, FRONT (SOFT K=0.45) | OPT

51171-35G10

Unavailable

33

SPRING, FRONT (HARD K=0.49) | OPT

51171-35G20

Unavailable
