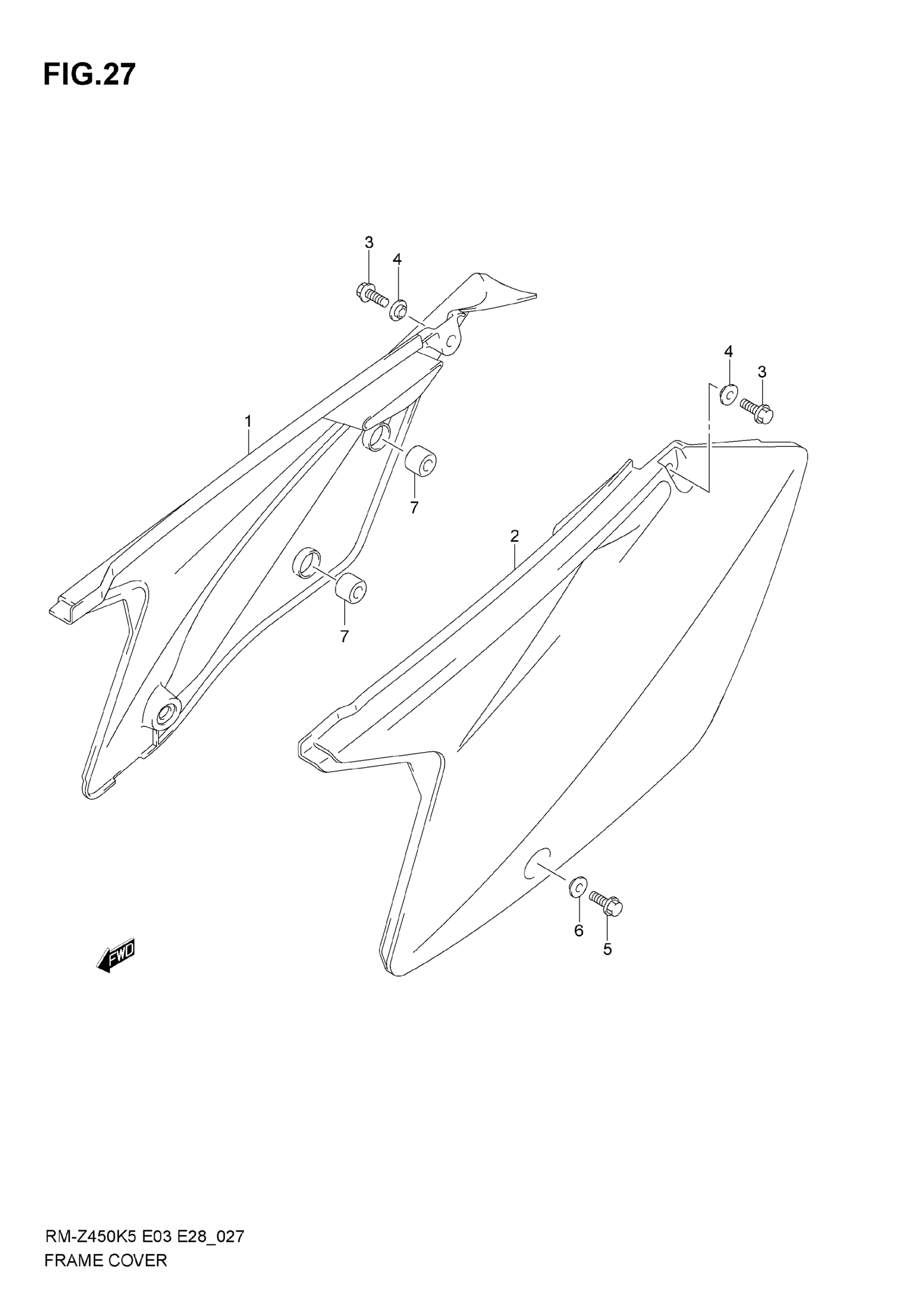

Suzuki RM-Z450 (2007) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE) | MODEL K5/K6

47111-35G00-30H

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL K7

47111-35G10-30H

Unavailable

2

COVER, FRAME LH (WHITE) | MODEL K5/K6

47211-35G00-30H

Unavailable

2

COVER, FRAME LH (WHITE) | MODEL K7

47211-35G10-30H

Unavailable

3

BOLT, SEAT

09103-06234

$2.35

4

WASHER This part replaces 69232-37F00.

69232-37F01

$7.72

5

BOLT, FRONT

09103-06234

$2.35

6

WASHER This part replaces 69232-37F00.

69232-37F01

$7.72

7

CUSHION, RH

47161-37F00

$8.38
