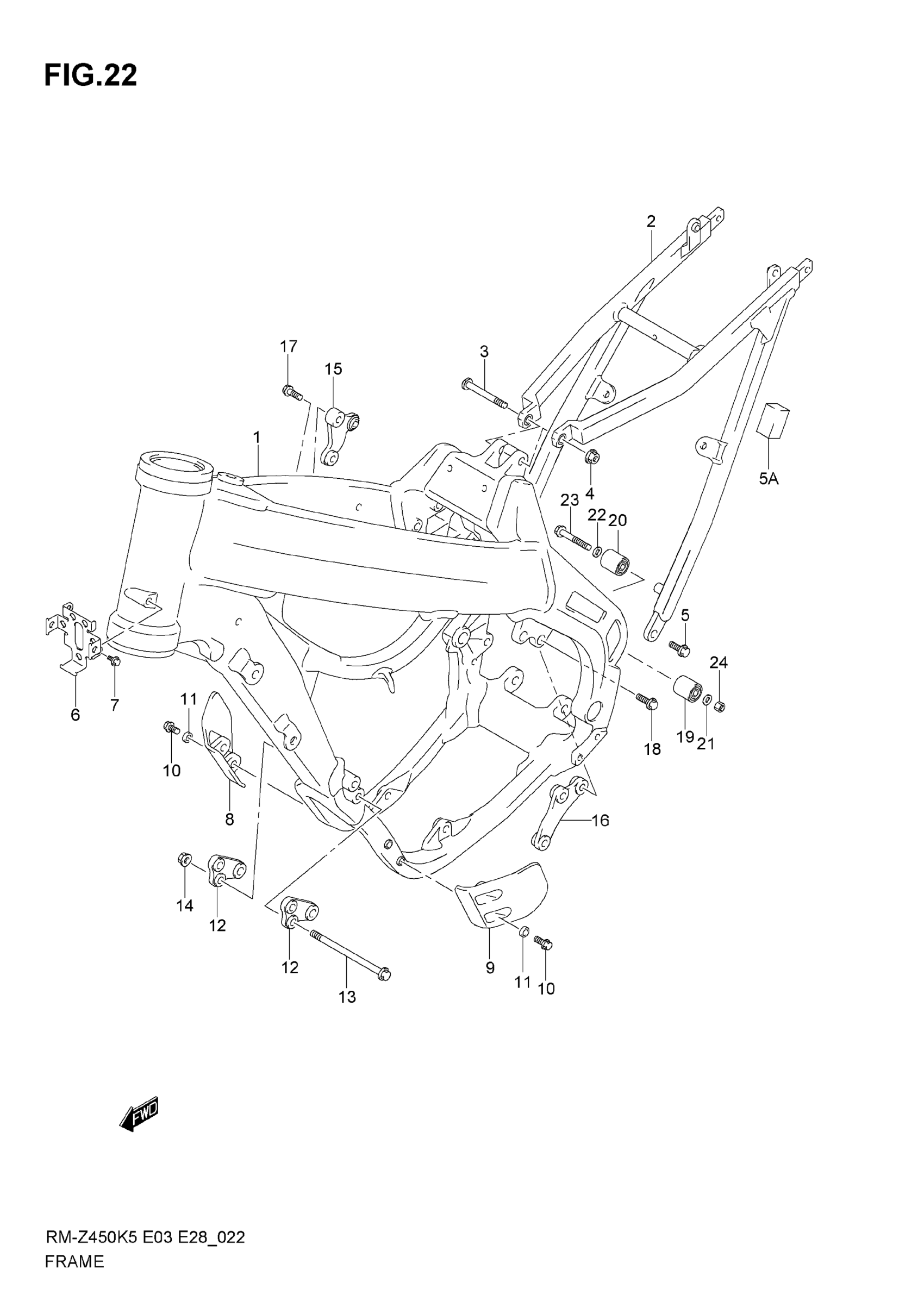

Suzuki RM-Z450 (2007) FRAME Diagram

#

Description
Price

1

FRAME | MODEL K5

41100-35G00

Unavailable

1

FRAME | MODEL K6

41100-35G10

Unavailable

1

FRAME | MODEL K7

41100-35G20

Unavailable

2

RAIL, SEAT | MODEL K5 This part replaces 41200-35G00.

41200-35G10

Unavailable

2

RAIL, SEAT | MODEL K6

41200-35G10

Unavailable

2

RAIL, SEAT | MODEL K7

41200-35G20

Unavailable

3

BOLT, UPPER

09119-08095

$4.10

4

NUT This part replaces 08319-31088.

08319-3108A

$2.32

5

BOLT, LOWER

09104-08037

$4.10

5A

CUSHION, SEAT RAIL | MODEL K6/K7

63115-35G10

$6.42

6

BRACKET, CDI

41347-35G00

Unavailable

7

BOLT

09103-06256

$2.28

8

PROTECTOR, FRONT RH

42520-35G00

Unavailable

9

PROTECTOR, FRONT LH

42530-35G00

Unavailable

10

BOLT | MODEL K5

09103-06234

$2.35

10

BOLT | MODEL K6/K7

09116-06200

$3.16

11

WASHER, CLUTCH RLSE NO.2 | MODEL K5 This part replaces 09160-06079.

09160-06052

$1.49

12

PLATE, ENGINE MOUNT FRONT | MODEL K5

41991-35G00

Unavailable

12

PLATE, ENGINE MOUNT FRONT | MODEL K6

41991-35G11

Unavailable

12

PLATE, ENGINE MOUNT FRONT | MODEL K7

41991-35G20

Unavailable

13

BOLT | MODEL K5

09103-08402

Unavailable

13

BOLT | MODEL K6/K7

09103-08424

$8.45

14

NUT

09159-08067

$5.57

15

PLATE, ENGINE MOUNT UPPER RH | MODEL K5 This part replaces 41993-35G00.

41993-35G01

Unavailable

15

PLATE, ENGINE MOUNT UPPER RH | MODEL K6/K7

41993-35G01

Unavailable

16

PLATE, ENGINE MOUNT UPPER LH

41994-35G00

Unavailable

17

BOLT

09103-08404

$3.72

18

BOLT, REAR LH

09103-08385

$3.58

19

ROLLER, CHAIN CONTROL LOWER

43910-35G00

$65.18

20

ROLLER, CHAIN CONTROL UPPER

43910-37F00

$70.53

21

WASHER, LOWER

09181-08111

$1.93

22

WASHER, UPPER

09181-08167

$1.96

23

BOLT

09103-08207

$2.51

24

NUT This part replaces 08319-21088.

08319-2108A

$2.12
