Description

Price

1

STAND, PROP

42310-35G00

Unavailable

2

FOOTREST, RH

43551-35G00

Unavailable

3

FOOTREST, LH

43561-35G00

Unavailable

4

PIN

09200-10022

$8.58

5

SPRING, RH

09448-21009

$6.80

6

SPRING, LH

09448-21010

$7.05

7

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

8

COTTER PIN | MODEL K5/K6

09385-10005

$1.56

8

CITTER PIN | MODEL K7

04111-2520A

$1.49

9

BRACKET, FOOTREST RH

41855-35G00

Unavailable

10

BRACKET, FOOTREST LH

41865-35G00

Unavailable

11

BOLT

09103-10366

$3.85

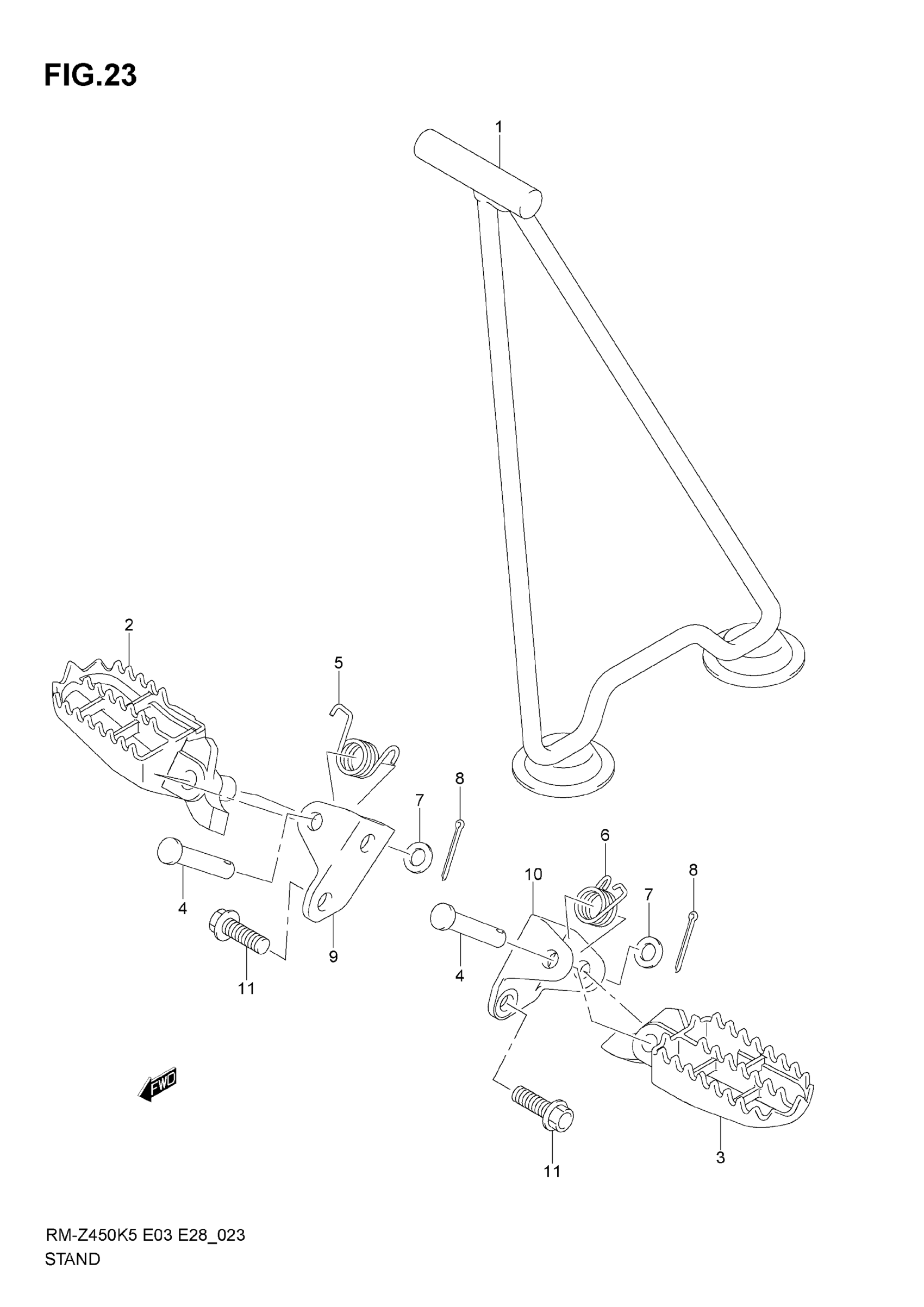

Suzuki RM-Z450 (2007) FOOTREST Diagram

STAND, PROP

FOOTREST, RH

FOOTREST, LH

PIN

SPRING, RH

SPRING, LH

WASHER, KNUCKLE END This part replaces 08322-01103.

COTTER PIN | MODEL K5/K6

CITTER PIN | MODEL K7

BRACKET, FOOTREST RH

BRACKET, FOOTREST LH

BOLT
