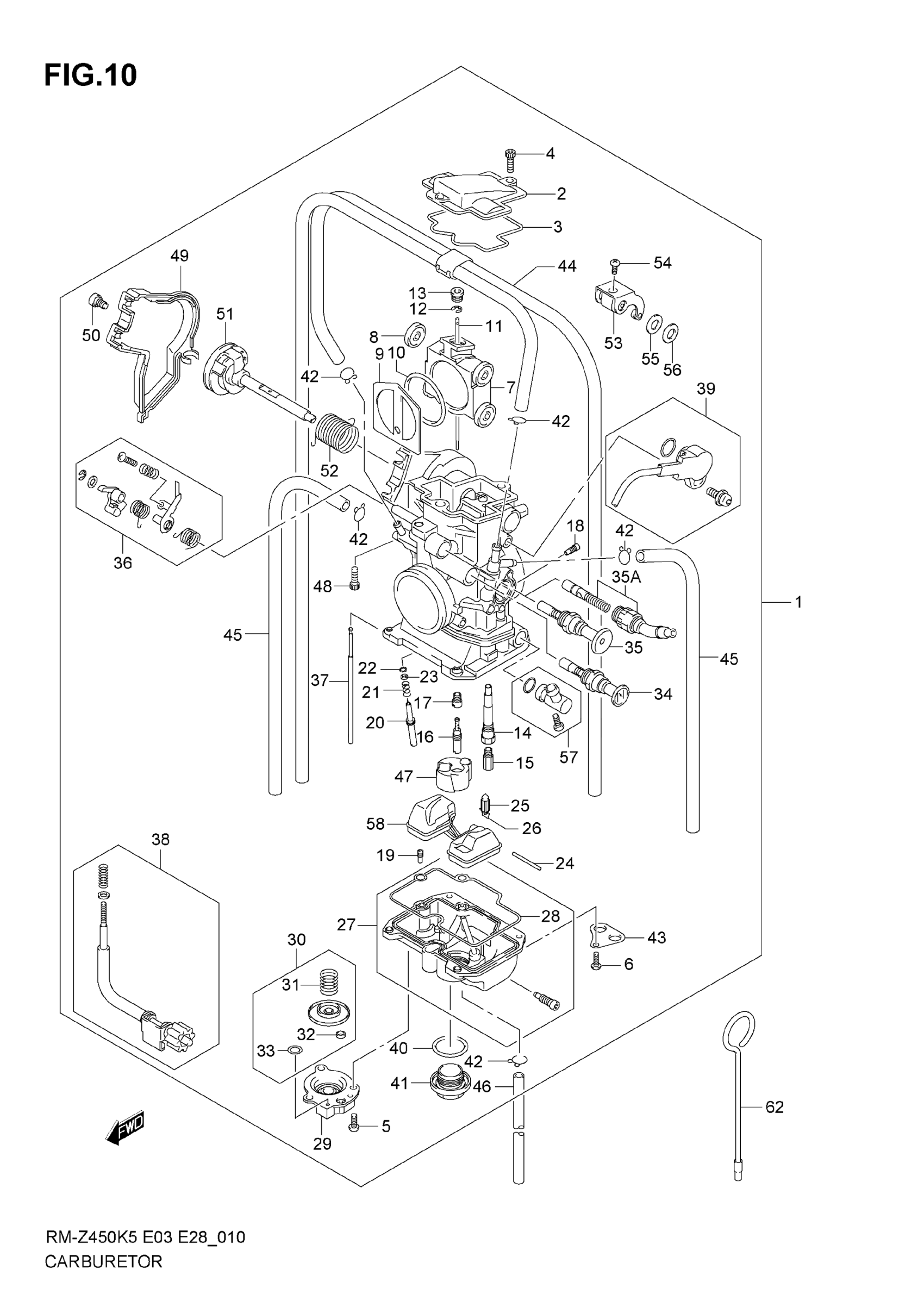

Suzuki RM-Z450 (2007) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL K5 E3

13200-35G00

Unavailable

1

CARBURETOR ASSY | MODEL K5 E28

13200-35G10

Unavailable

1

CARBURETOR ASSY | MODEL K6 E3

13200-35G20

Unavailable

1

CARBURETOR ASSY | MODEL K6 E28

13200-35G30

Unavailable

1

CARBURETOR ASSY | MODEL K7 E3

13200-35G40

Unavailable

1

CARBURETOR ASSY | MODEL K7 E28; Includes Item(s) 2 - 58

13200-35G50

Unavailable

2

TOP

13261-35G00

Unavailable

3

O RING

13266-35G00

$24.07

4

BOLT (4X12) This part replaces 13612-35G00.

13612-29F10

$6.30

5

SCREW

13602-43E00

$3.05

6

SCREW

13602-35G00

$3.58

7

THROTTLE VALVE

13551-35G10

Unavailable

8

BEARING

13570-29F00

$13.47

9

FLOATING VALVE

13555-35G00

$316.32

10

LIP SEAL

13559-29F00

$23.73

11

NEEDLE, JET (NCYR) | MODEL K5/K6

13383-35G40

$22.75

11

NEEDLE, JET (NKYT) | MODEL K7

13383-35GE0

$21.47

12

BAR CLIP

13394-29F00

$4.82

13

SCREW SET, JET NEEDLE

13600-35G00

Unavailable

14

MAIN, NOZZLE

13342-35G10

$56.72

15

JET, MAIN, 165 | MODEL K5 E3

09491-33009

$17.37

15

JET, MAIN, 170 | MODEL K5 E28

09491-34010

$17.37

15

JET, MAIN, 170 | MODEL K6/K7 E3

09491-34010

$17.37

15

JET, MAIN, 175 | MODEL K6/K7 E28

09491-35009

$17.68

16

JET, SLOW, 42

09492-42019

$14.76

17

JET, STARTER

09492-35G00

$17.37

18

JET, SLOW AIR

09492-35G10

$18.02

19

JET, ACC

09492-35G30

$18.02

20

SCREW, ADJUST

13279-29F00

$11.18

21

SPRING

13271-29F00

$4.43

22

O RING This part replaces 13295-29F00.

13295-26E00

$4.34

23

WASHER This part replaces 13291-29F00.

13291-26E00

$2.93

24

PIN, FLOAT

13254-26E00

$4.43

25

VALVE, FLOAT

13370-29F00

$25.30

26

CLIP

13375-26E00

$5.44

27

FLOAT CHAMBER BODY SET | MODEL K5/K6

13250-35G00

Unavailable

27

FLOAT CHAMBER BODY SET | MODEL K7

13250-35G10

Unavailable

28

O RING

13251-35G00

$19.13

29

COVER

13488-29F00

$34.37

30

DIAPHRAGM SET

13480-35G00

$61.55

31

U RING This part replaces 13497-14F00.

13497-14F01

$3.32

32

SPRING

13494-15F00

$3.71

33

O RING

13673-26E10

$4.10

34

STARTER VALVE | MODEL K5

13410-35G00

Unavailable

34

STARTER VALVE | MODEL K6/K7

13410-35G20

$37.52

35

STARTER VALVE | MODEL K5

13410-35G10

$37.83

35A

STARTER VALVE | MODEL K6/K7

13410-35G30

$44.28

36

LEVER SET, PUMP | MODEL K5

13490-35G00

Unavailable

36

LEVER SET, PUMP | MODEL K6/K7

13490-35G10

$103.03

37

ROD

13487-35G00

Unavailable

38

SCREW SET

13270-35G00

$103.83

39

SENSOR SET, THROTTLE

13580-35G00

$228.60

40

O RING

13246-28E00

$5.17

41

BOLT, DRAIN

13247-28E00

$21.90

42

CLIP

09401-06101

$2.03

43

PLATE

13693-36E00

$6.77

44

PIPE SET, BOWL VENT

13680-35G00

$62.48

45

PIPE

13686-35G00

$13.73

46

PIPE

13684-35G00

$9.90

47

PLATE, BUFFER

13257-35G00

Unavailable

48

SCREW

13296-35G00

Unavailable

49

COVER

13311-35G00

$32.88

50

BOLT

13312-35G00

$18.87

51

THROTTLE SHAFT

13550-35G01

Unavailable

52

SPRING

13573-35G00

$15.25

53

LINK ARM

13564-35G00

Unavailable

54

SCREW

13605-35G00

$5.98

55

WASHER

13572-29F00

$3.15

56

WASHER

13574-35G00

Unavailable

57

JOINT SET

13670-35G00

$52.22

58

FLOAT

13240-35G00

$76.88

59

JET, MAIN (150) | OPT NOT SHOWN

09491-30018

$18.02

59

JET, MAIN (152) | OPT NOT SHOWN

09491-30019

$18.02

59

JET, MAIN (155) | OPT NOT SHOWN

09491-31012

$18.02

59

JET, MAIN (158) | OPT NOT SHOWN

09491-31013

$18.02

59

JET, MAIN (160) | OPT NOT SHOWN

09491-32010

$17.37

59

JET, MAIN (162) | OPT NOT SHOWN

09491-32011

$17.37

59

JET, MAIN (165) | OPT NOT SHOWN

09491-33009

$17.37

59

JET, MAIN (168) | OPT NOT SHOWN

09491-33010

$17.37

59

JET, MAIN (170) | OPT NOT SHOWN

09491-34010

$17.37

59

JET, MAIN (172) | OPT NOT SHOWN

09491-34011

$17.37

59

JET, MAIN (175) | OPT NOT SHOWN

09491-35009

$17.68

59

JET, MAIN (178) | OPT NOT SHOWN

09491-35010

$18.02

59

JET, MAIN (180) | OPT NOT SHOWN

09491-36008

$18.02

59

JET, MAIN (185) | OPT NOT SHOWN

09491-37008

Unavailable

59

JET, MAIN (190) | OPT NOT SHOWN

09491-38011

Unavailable

60

JET, SLOW (35) | OPT NOT SHOWN

09492-35019

$17.68

60

JET, SLOW (40) | OPT NOT SHOWN

09492-40022

$17.37

60

JET, SLOW (42) | OPT NOT SHOWN

09492-42019

$14.76

60

JET, SLOW (45) | OPT NOT SHOWN

09492-45032

$17.37

60

JET, SLOW (48) | OPT NOT SHOWN

09492-48013

$17.37

60

JET, SLOW (50) | OPT NOT SHOWN

09492-50023

$17.37

60

JET, SLOW (52) | OPT NOT SHOWN

09492-52011

$17.68

60

JET, SLOW (55) | OPT NOT SHOWN

09492-55017

$18.02

60

JET, SLOW (58) | OPT NOT SHOWN

09492-58001

$18.02

60

JET, SLOW (60) | OPT NOT SHOWN

09492-60016

Unavailable

61

NEEDLE, JET (NCYP) | OPT NOT SHOWN

13383-35G00

Unavailable

61

NEEDLE, JET (NCVP) | OPT NOT SHOWN

13383-35G10

Unavailable

61

NEEDLE, JET (NCYQ) | OPT NOT SHOWN

13383-35G20

Unavailable

61

NEEDLE, JET (NCVQ) | OPT NOT SHOWN

13383-35G30

Unavailable

61

NEEDLE, JET (NCYR) | OPT NOT SHOWN

13383-35G40

$22.75

61

NEEDLE, JET (NCVR) | OPT NOT SHOWN

13383-35G50

Unavailable

61

NEEDLE, JET (NCYS) | OPT NOT SHOWN

13383-35G60

Unavailable

61

NEEDLE, JET (NCVS) | OPT NOT SHOWN

13383-35G70

Unavailable

61

NEEDLE, JET (NCYT) | OPT NOT SHOWN

13383-35G80

Unavailable

61

NEEDLE, JET (NCVT) | OPT NOT SHOWN

13383-35G90

Unavailable

61

NEEDLE, JET (NKYR) | OPT NOT SHOWN

13383-35GA0

Unavailable

61

NEEDLE, JET (NKZR) | OPT NOT SHOWN

13383-35GB0

Unavailable

61

NEEDLE, JET (NKYS) | OPT NOT SHOWN

13383-35GC0

Unavailable

61

NEEDLE, JET (NKZS) | OPT NOT SHOWN

13383-35GD0

Unavailable

61

NEEDLE, JET (NKYT) | OPT NOT SHOWN

13383-35GE0

$21.47

61

NEEDLE, JET (NKZT) | OPT NOT SHOWN

13383-35GF0

Unavailable

61

NEEDLE, JET (NKYU) | OPT NOT SHOWN

13383-35GG0

Unavailable

61

NEEDLE, JET (NKZU) | OPT NOT SHOWN

13383-35GH0

Unavailable

61

NEEDLE, JET (NKYV) | OPT NOT SHOWN

13383-35GJ0

Unavailable

61

NEEDLE, JET (NKZV) | OPT NOT SHOWN

13383-35GK0

Unavailable

62

HOLDER, JET NEEDLE | OPT

13220-35G00

$6.47
