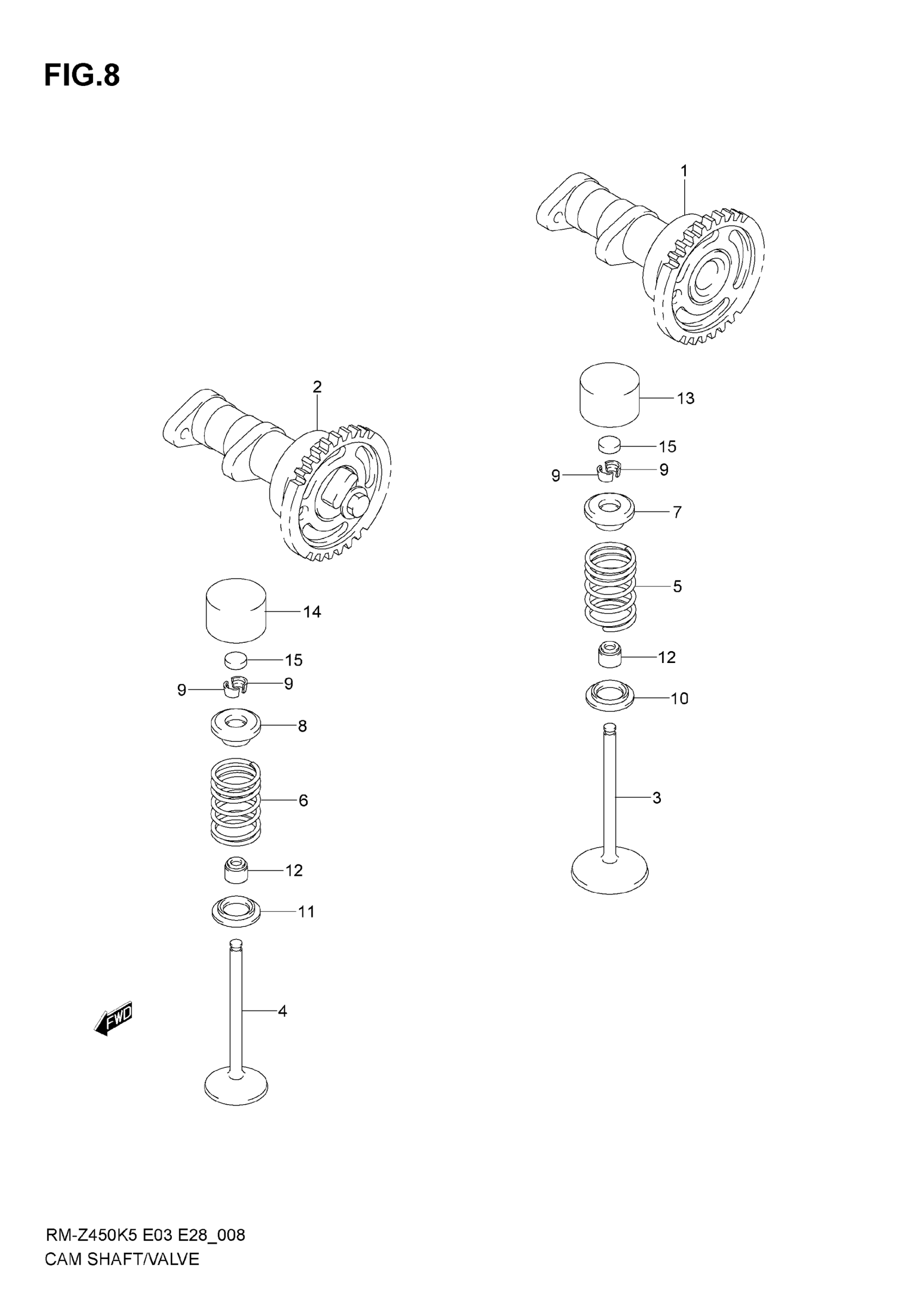

Suzuki RM-Z450 (2007) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT (INTAKE) | MODEL K5

12710-35G00

Unavailable

1

CAMSHAFT (INTAKE) | MODEL K6

12710-35G10

Unavailable

1

CAMSHAFT (INTAKE) | MODEL K7

12710-35G20

Unavailable

2

CAMSHAFT (EXHAUST) | MODEL K5

12720-35G00

Unavailable

2

CAMSHAFT (EXHAUST) | MODEL K6

12720-35G10

$467.05

2

CAMSHAFT (EXHAUST) | MODEL K7

12720-35G20

$530.73

3

VALVE, INTAKE | MODEL K5 This part replaces 12911-35GU0.

12911-35G10

$133.07

3

VALVE, INTAKE | MODEL K6

12911-35G10

$133.07

3

VALVE, INTAKE | MODEL K7

12911-35G20

$150.35

4

VALVE, EXHAUST | MODEL K5/K6

12912-35G00

$150.35

4

VALVE, EXHAUST | MODEL K7

12912-35G20

$184.13

5

SPRING, VALVE INTAKE

12921-35G00

$14.65

6

SPRING, VALVE EXHAUST

12922-35G00

$13.95

7

RETAINER,VALVE SPRING

12931-02F10

$15.16

8

RETAINER, SPRING EXHAUST

12931-35G00

$15.16

9

COTTER, VALVE | MODEL K5/K6

12932-24F00

$2.03

9

COTTER, VALVE | MODEL K7

12932-24400

$1.94

10

SEAT, SPRING INTAKE

12933-35G00

$8.32

11

SEAT, SPRING EXHAUST

12933-35G10

$8.32

12

OIL SEAL (5X10X8.7) | MODEL K5/K6

09289-05011

$6.32

12

OIL SEAL (5X11X8.2) | MODEL K7

09289-05015

$6.70

13

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

14

TAPPET This part replaces 12891-17E00.

12891-47H00

$68.43

15

SHIM,TAPPET (T:1.50)

12892-35G00-150

$11.83

15

SHIM,TAPPET (T:1.55)

12892-35G00-155

Unavailable

15

SHIM,TAPPET (T:1.60)

12892-35G00-160

Unavailable

15

SHIM,TAPPET (T:1.65)

12892-35G00-165

$11.83

15

SHIM,TAPPET (T:1.70)

12892-35G00-170

Unavailable

15

SHIM,TAPPET (T:1.75)

12892-35G00-175

Unavailable

15

SHIM,TAPPET (T:1.80)

12892-35G00-180

Unavailable

15

SHIM,TAPPET (T:1.85)

12892-35G00-185

Unavailable

15

SHIM,TAPPET (T:1.90)

12892-35G00-190

Unavailable

15

SHIM,TAPPET (T:1.95)

12892-35G00-195

Unavailable

15

SHIM,TAPPET (T:2.00)

12892-35G00-200

Unavailable

15

SHIM,TAPPET (T:2.05)

12892-35G00-205

Unavailable

15

SHIM,TAPPET (T:2.10)

12892-35G00-210

$11.83

15

SHIM,TAPPET (T:2.15)

12892-35G00-215

Unavailable

15

SHIM,TAPPET (T:2.20)

12892-35G00-220

Unavailable

15

SHIM,TAPPET (T:2.25)

12892-35G00-225

$11.83

15

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

15

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

15

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

15

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

15

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

15

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

15

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

15

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

15

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

15

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

15

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

15

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

15

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

15

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

15

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

15

SHIM,TAPPET (T:1.52)

12892-35G00-152

Unavailable

15

SHIM,TAPPET (T:1.58)

12892-35G00-158

Unavailable

15

SHIM,TAPPET (T:1.62)

12892-35G00-162

Unavailable

15

SHIM,TAPPET (T:1.68)

12892-35G00-168

Unavailable

15

SHIM,TAPPET (T:1.72)

12892-35G00-172

Unavailable

15

SHIM,TAPPET (T:1.78)

12892-35G00-178

Unavailable

15

SHIM,TAPPET (T:1.82)

12892-35G00-182

Unavailable

15

SHIM,TAPPET (T:1.88)

12892-35G00-188

Unavailable

15

SHIM,TAPPET (T:1.92)

12892-35G00-192

Unavailable

15

SHIM,TAPPET (T:1.98)

12892-35G00-198

Unavailable

15

SHIM,TAPPET (T:2.02)

12892-35G00-202

Unavailable

15

SHIM,TAPPET (T:2.08)

12892-35G00-208

Unavailable

15

SHIM,TAPPET (T:2.12)

12892-35G00-212

Unavailable

15

SHIM,TAPPET (T:2.18)

12892-35G00-218

Unavailable

15

SHIM,TAPPET (T:2.22)

12892-35G00-222

Unavailable

15

SHIM,TAPPET (T:2.28)

12892-35G00-228

Unavailable

15

SHIM, TAPPET

12892-41C00-232

Unavailable

15

SHIM, TAPPET

12892-41C00-238

$11.83

15

SHIM, TAPPET

12892-41C00-242

Unavailable

15

SHIM, TAPPET

12892-41C00-248

Unavailable

15

SHIM, TAPPET

12892-41C00-252

Unavailable

15

SHIM, TAPPET

12892-41C00-258

Unavailable

15

SHIM, TAPPET

12892-41C00-262

Unavailable

15

SHIM, TAPPET

12892-41C00-268

Unavailable

15

SHIM, TAPPET

12892-41C00-272

Unavailable

15

SHIM, TAPPET

12892-41C00-278

Unavailable

15

SHIM, TAPPET

12892-41C00-282

Unavailable

15

SHIM, TAPPET

12892-41C00-288

Unavailable

15

SHIM, TAPPET

12892-41C00-292

Unavailable

15

SHIM, TAPPET

12892-41C00-298

Unavailable

16

SHIM SET,TAPPET (5PCS. EACH) | OPT NOT SHOWN; Includes Item(s) 17 This part replaces 12800-35811.

12800-35820

Unavailable

17

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69471

Unavailable

18

SHIM SET, TAPPET INC.REF.NO.15-21%15-31 (5PCS.EACH) & NO.19 | OPT NOT SHOWN; Includes Item(s) 19

12800-41810

$1,138.37

19

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69471

Unavailable

20

SHIM SET,TAPPET (5PCS. EACH) | OPT NOT SHOWN; Includes Item(s) 21

12800-35820

Unavailable

21

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69471

Unavailable
