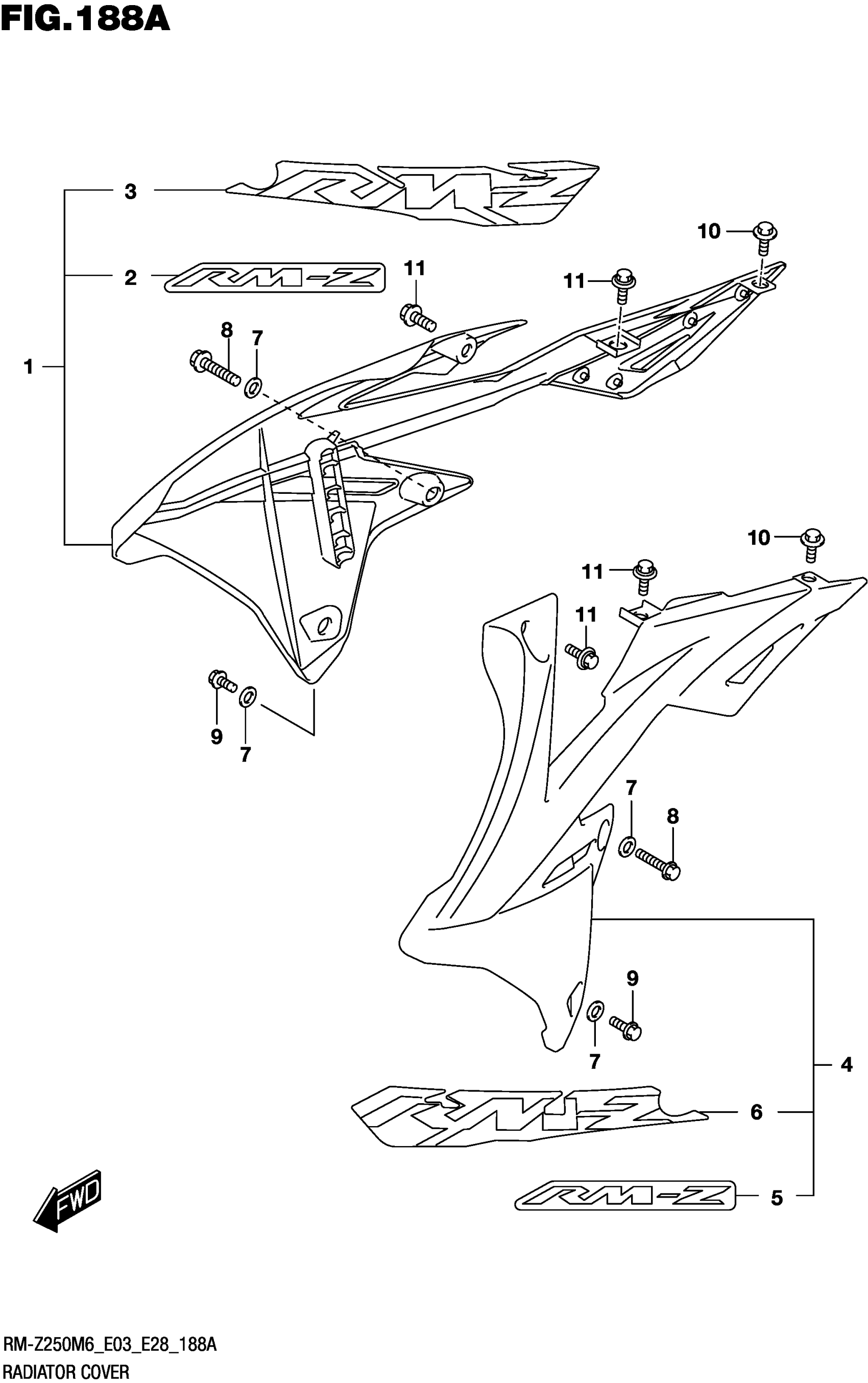

Suzuki RM-Z250M6 (2026) RADIATOR COVER Diagram

#

Description

Price

1

COVER ASSY,RADIATOR,R (YELLOW | BLACK)

47207-37K10-GY8

$241.50

2

.EMBLEM,"RM-Z" (WHITE,ORANGE, | CK)

68666-37K00-BLC

$11.73

3

.TAPE SET,RADIATOR COVER,R (Y | LLOW,BLACK,BLUE)

68110-37K00-BLL

$29.77

4

COVER ASSY,RADIATOR,L (YELLOW | BLACK)

47208-37K10-GY8

$241.50

5

.EMBLEM,"RM-Z" (WHITE,ORANGE, | CK)

68666-37K00-BLC

$11.73

6

.TAPE SET,RADIATOR COVER,L (Y | LLOW,BLACK,BLUE)

68120-37K00-BLL

$29.77

7

WASHER,RADIATOR COVER

47192-37K00

$7.27

8

BOLT,RADIATOR COVER

47256-37K00

$2.33

9

BOLT,RADIATOR COVER

47255-37K00

$1.60

10

BOLT (6X16)

09111-06251

$2.42

11

BOLT (6X12)

09116-06221

$2.57
