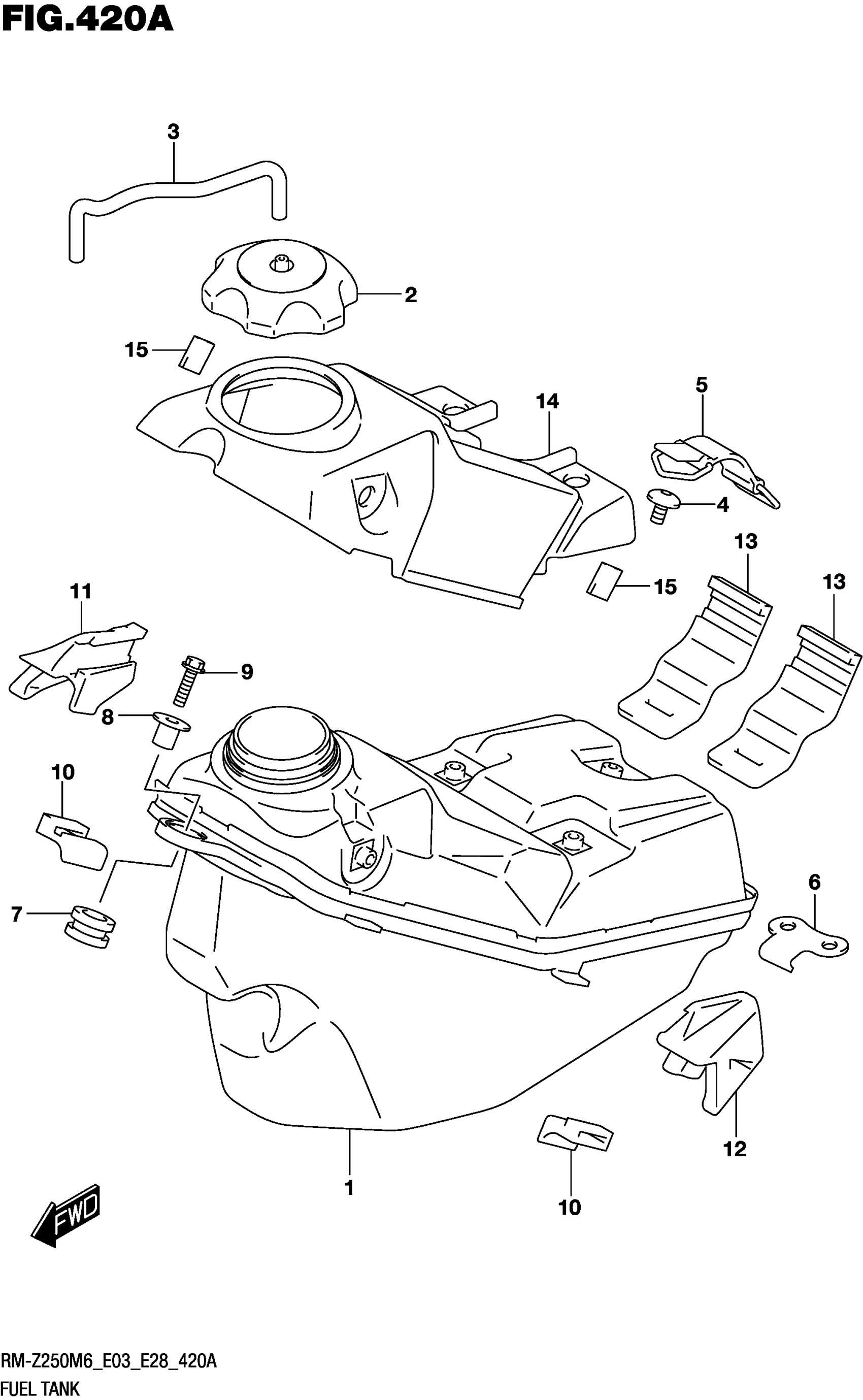

Suzuki RM-Z250M6 (2026) FUEL TANK Diagram

#

Description
Price

1

TANK,FUEL

44110-37K00

$1,236.77

2

CAP ASSY,FUEL TANK FILLER

44200-37K00

$38.70

3

HOSE (5X8.2X350)

09352-50005-350

$7.35

4

BOLT (6X12)

09106-06117

$5.10

5

BAND,FUEL TANK REAR

44560-37K00

$15.23

6

PLATE,FUEL TANK BAND

41433-46K00

$38.88

7

CUSHION,FUEL TANK FRONT

44541-37K00

$8.27

8

SPACER,FUEL TANK FRONT

44134-37K00

$6.75

9

BOLT

01547-0630A

$2.32

10

CUSHION,TANK SIDE FR

44545-37K00

$7.75

11

CUSHION,FUEL TANK SIDE,R

44543-37K00

$15.37

12

CUSHION,FUEL TANK SIDE,L

44544-37K00

$15.37

13

CUSHION,FUEL TANK REAR

44542-37K00

$15.37

14

COVER,FUEL TANK (BLUE)

44291-37K00-QLD

$46.08

15

CUSHION (20X30X8)

94422-06G00

$5.82
