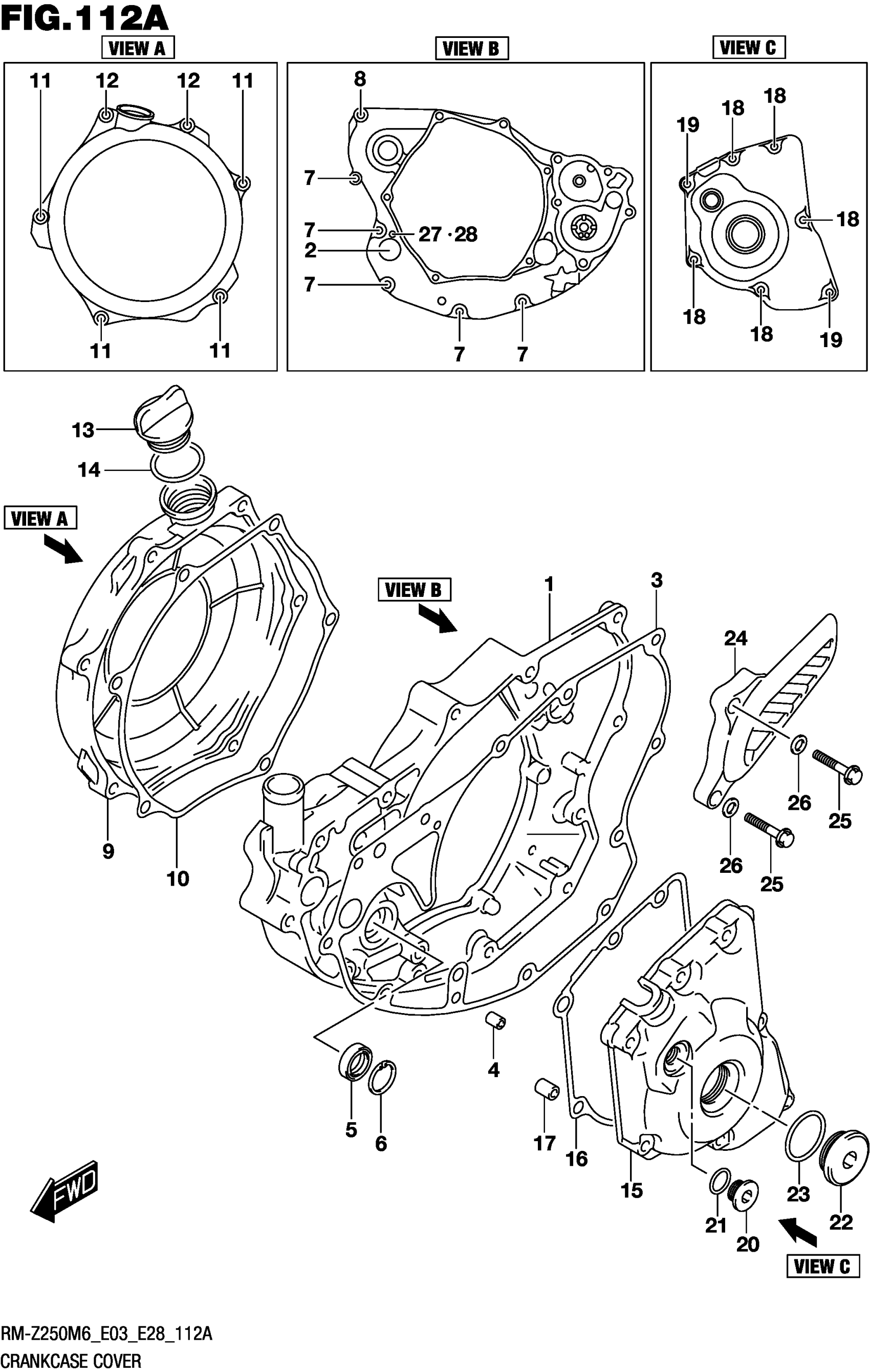

Suzuki RM-Z250M6 (2026) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-49H10

$277.25

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

.GASKET,CLUTCH COVER

11482-49H00

$15.63

4

PIN

04211-09109

$1.65

5

SEAL,OIL (12X22X6)

09282-12012

$17.98

6

CIRCLIP

08331-41249

$2.26

7

BOLT

01547-0625A

$2.01

8

BOLT

01547-0630A

$2.32

9

COVER,CLUTCH OUTER

11371-10H10

$233.02

10

.GASKET,CLUTCH COVER OUTER

11484-10H00

$14.02

11

BOLT

01547-0625A

$2.01

12

BOLT

01547-0665A

$2.32

13

PLUG

09259-20008-XC0

$7.50

14

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

15

COVER,MAGNETO

11351-49H01

$217.17

16

.GASKET,MAGNETO COVER

11483-49H00

$12.54

17

PIN

04211-09109

$1.65

18

BOLT

01547-0630A

$2.32

19

BOLT

01547-0635A

$2.30

20

PLUG (12X9)

09248-12007

$6.11

21

O RING (D:1.9,ID:9.8) This part replaces 09280-10015.

09280-10016

$3.37

22

PLUG (26X9)

09259-26011

$11.03

23

O-RING (D:3.1,ID:22.7)

09280-22008

$2.27

24

COVER,ENG SPROCKET

11360-35G10

$21.63

25

BOLT

01547-0630A

$2.32

26

WASHER

08322-0106A

$1.84

27

BOLT

07130-0512A

$2.19

28

GASKET (5.3X9.3X1.2)

09168-05010

$1.71
