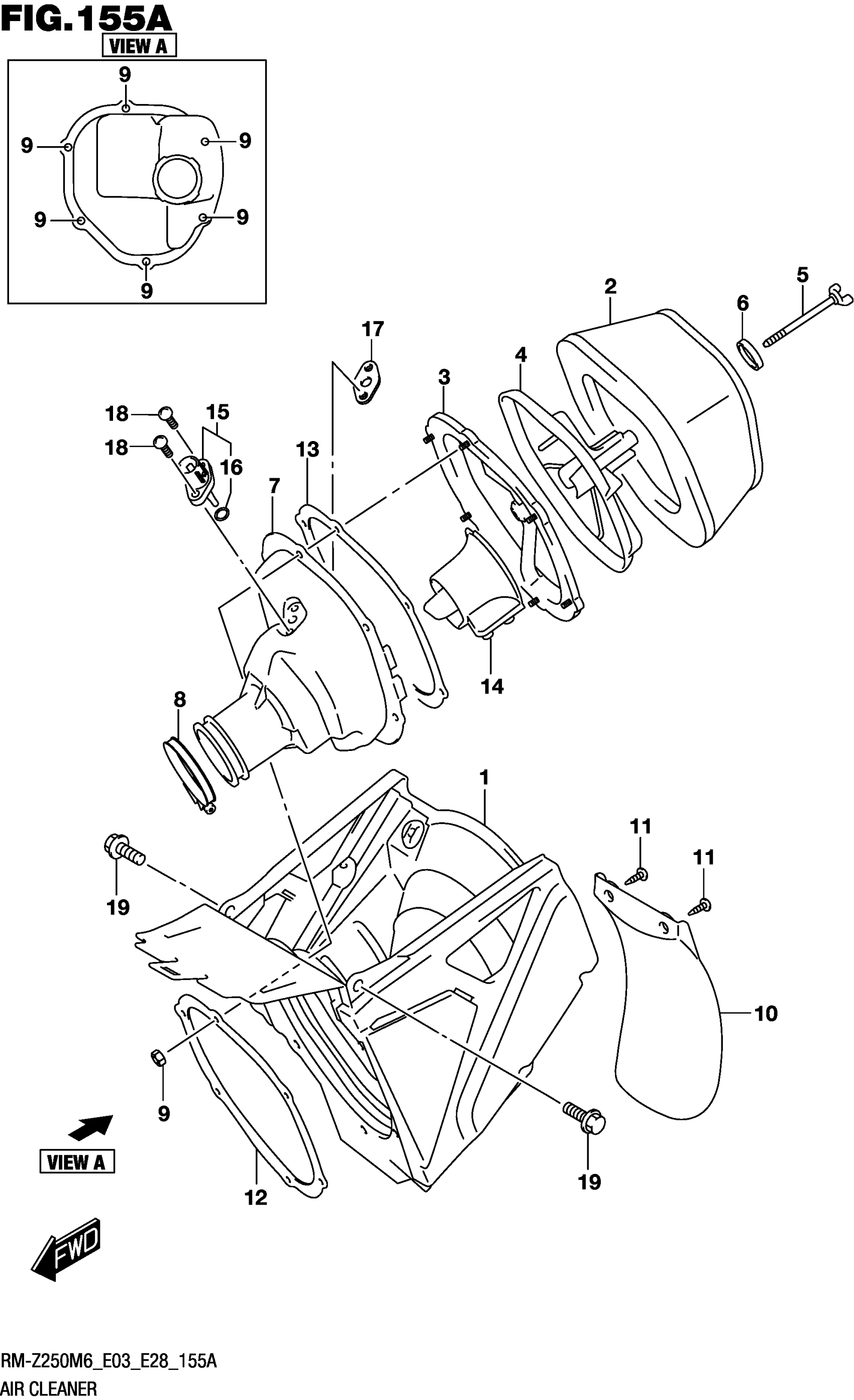

Suzuki RM-Z250M6 (2026) AIR CLEANER Diagram

#

Description
Price

1

CASE,AIR CLEANER

13710-46K00

$214.35

2

.FILTER ASSY

13780-37K00

$66.25

3

.BASE,FILTER

13790-37K00

$26.55

4

.HOLDER,FILTER

13791-37K00

$19.45

5

.BOLT,WING

13831-37F20

$8.07

6

.WASHER

13792-13A01

$4.34

7

TUBE,OUTLET

13881-46K00

$95.88

8

CLAMP

13826-46K00

$9.88

9

NUT

08310-0005A

$1.84

10

.MUD GUARD

13738-36E10

$26.25

11

.SCREW

13831-35F00

$2.38

12

.PLATE,AIR CLEANER

13795-37K00

$17.45

13

.GASKET,BASE FILTER

13796-37K00

$6.57

14

FUNNEL

13882-46K00

$60.88

15

SENSOR,AIR TEMP

13650-14G10

$52.06

16

.O-RING

13655-14G10

$9.90

17

BRACKET,AIR TEMP SENSOR

13652-28H00

$12.40

18

.SCREW

02112-0516A

$1.49

19

BOLT (6X16)

09111-06251

$2.42
