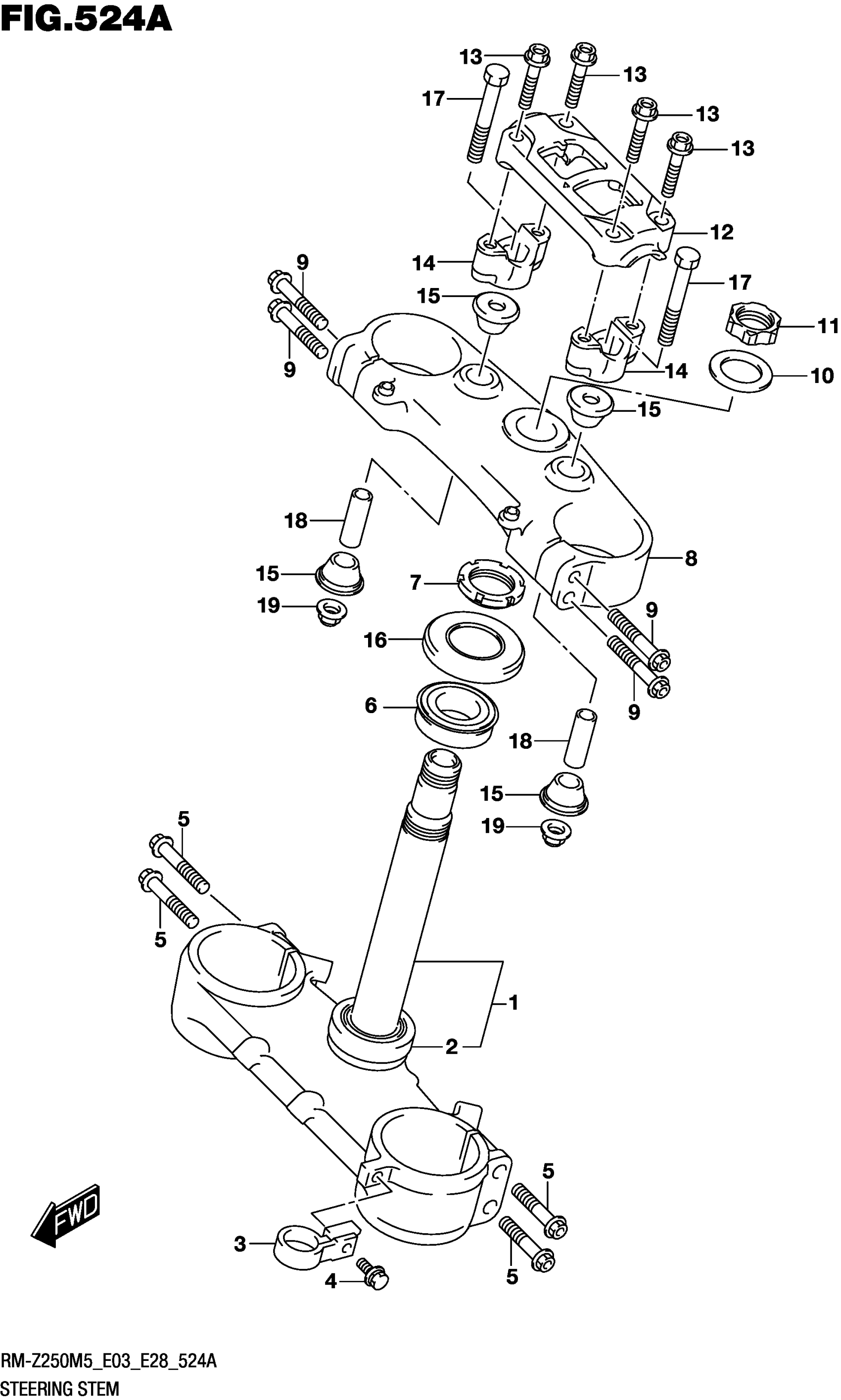

Suzuki RM-Z250M5 (2025) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER

51410-46K11

$452.18

2

.BEARING (30X52X16)

09265-30035

$46.72

3

CLIP

58621-49H40

$7.85

4

BOLT (6X16)

09116-06200

$3.16

5

BOLT,AXLE STOPPER

51166-10G10

$5.38

6

.BEARING (30X52X16)

09265-30035

$46.72

7

NUT,STEERING

51631-37K10

$29.43

8

BRACKET,UPPER

51311-46K10

$392.80

9

BOLT,AXLE STOPPER

51166-10G10

$5.38

10

WASHER

51356-49H40

$16.68

11

NUT

51353-49H40

$34.02

12

HOLDER,HANDLE

56211-49H40

$127.30

13

BOLT

51352-10G00

$6.63

14

HOLDER,HANDLE

56221-49H40

$96.60

15

DAMPER RUBBER

56241-49H40

$23.28

16

COVER,STEERING UPPER

51643-37K00

$24.18

17

BOLT

56321-49H40

$14.97

18

SPACER

56243-49H40

$12.12

19

NUT This part replaces 08319-31108.

08319-31107

$2.73
