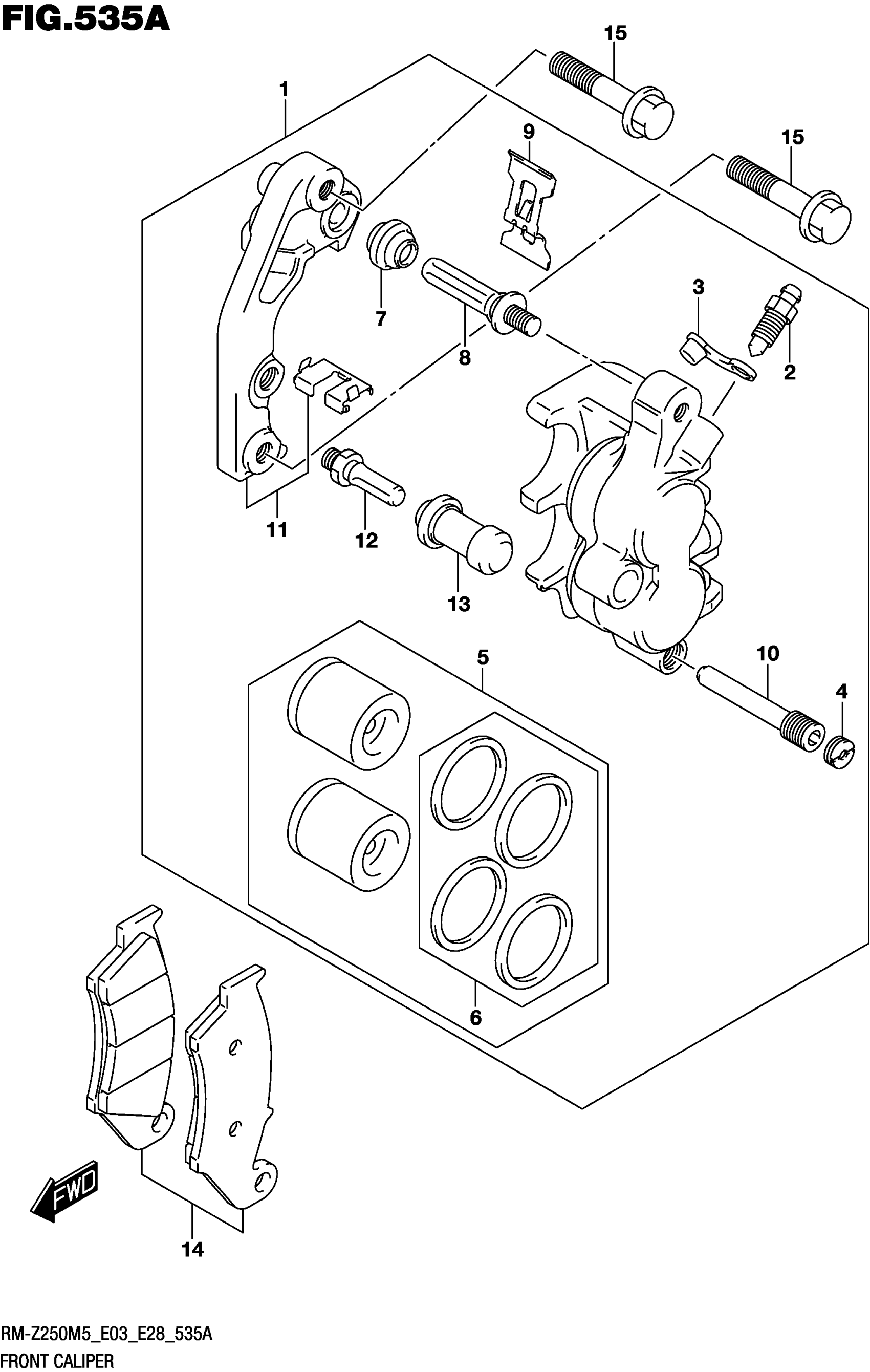

Suzuki RM-Z250M5 (2025) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FR

59300-37K00-999

$242.98

2

.BLEEDER

59121-01A00

$8.73

3

.CAP,BLEEDER

59122-01A00

$4.34

4

.PLUG,PIN

59146-21E10

$6.15

5

.PISTON SET

59300-28830

Unavailable

6

..SEAL SET,PISTON

59300-13820

$18.77

7

.BOOT

59303-14500

$5.52

8

.PIN

59305-27C00

$23.48

9

.SPRING,PAD

59315-13E00

$15.16

10

.PIN,HANGER

59345-13E00

$14.34

11

.BRACKET

59350-37K00

$107.02

12

.BOLT

59382-37F00

$12.35

13

.BOOT

59386-13A00

$7.95

14

PAD SET

59300-37820

$62.43

15

BOLT (8X41)

09103-08403

$3.37
